Description: A precision instrument designed for liquid-phase thin-film deposition on substrates. Features smooth vertical lifting, high precision, and programmable control of lifting cycles, immersion time, and repetitions. Compact in size and easy to operate.

Product Overview:

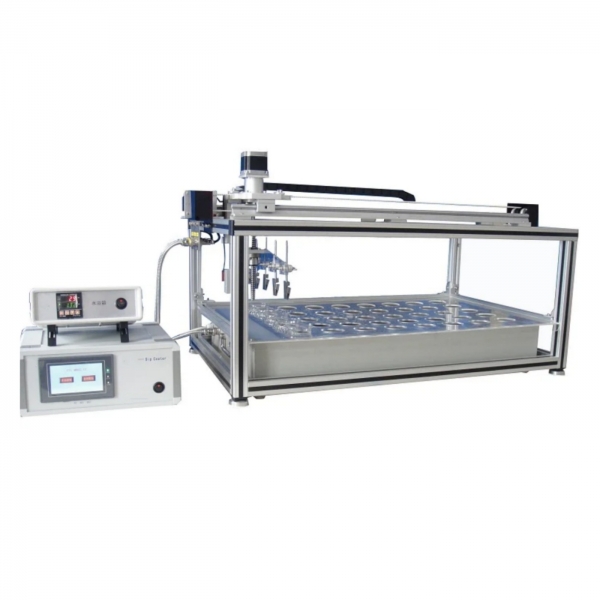

The TMAX-KJ08 Dip Coater is a millimeter-scale multi-station precision coating device, specifically designed for research institutions. It is primarily used for preparing multilayer liquid-phase thin-film materials on one or multiple samples in different liquid phases. With its compact structure, user-friendly operation, and portability, it is widely applied in universities, research institutes, and industrial laboratories.

Key Features:

· Multi-sample/Multi-station: Supports simultaneous coating of up to 5 samples in 8 different liquid-phase materials, with a maximum of 999 cycle repetitions (for multilayer coating).

· Independent Parameter Settings: Each of the 8 stations can be configured with unique lifting speed, immersion time, and drying time to accommodate various process requirements.

· User-Friendly Operation: Equipped with a 4.3-inch color touchscreen for intuitive and straightforward control.

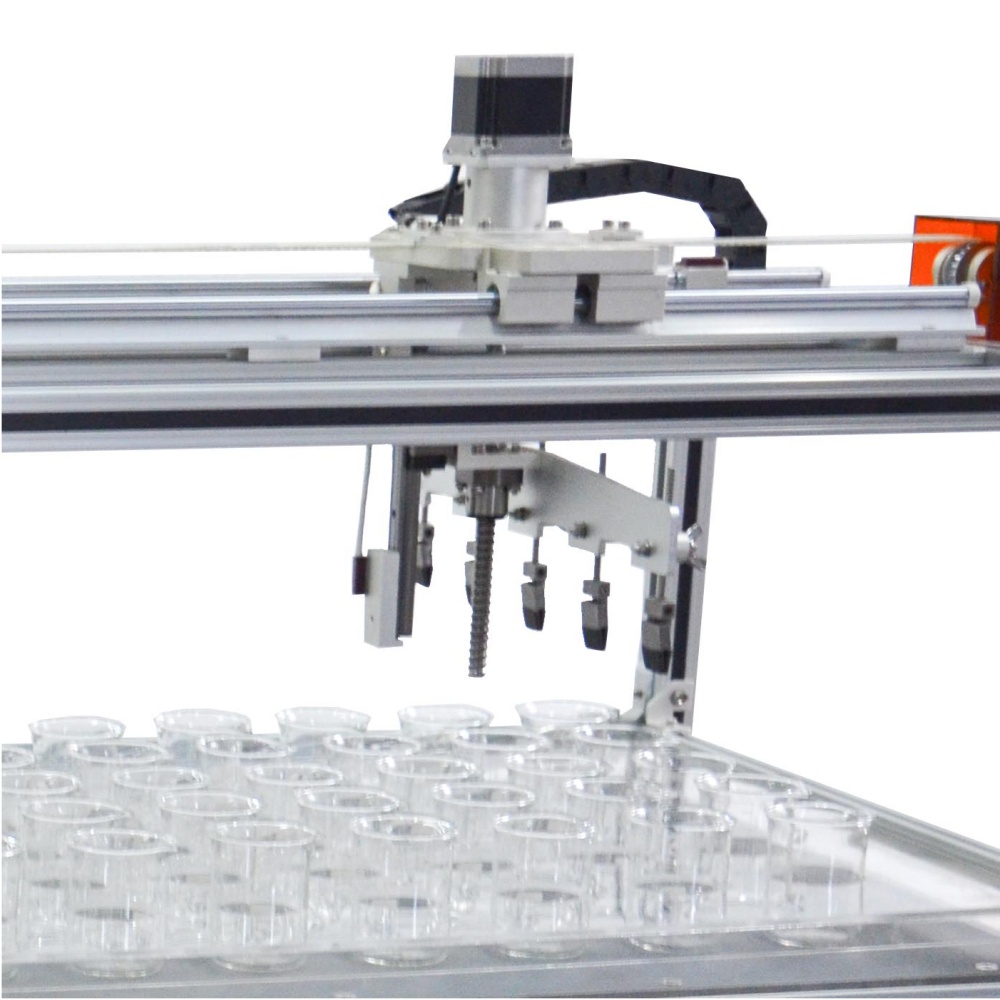

· High-Precision Control: PLC-programmed high-precision stepper motor drive, paired with timing belts and ball screws as transmission components, ensures accurate movement.

· Space-Efficient Design: Compact and cost-effective, saving valuable laboratory space.

Technical Specifications:

Parameter	Specification
Product Name	KJ08 Dip Coater
Model	KJ08
Installation Requirements	1. Power Supply: AC220V 50/60Hz, 10A three-pole socket (national standard), with proper grounding.  2. Environment: Temperature 25°C ±15°C, humidity 55%Rh ±10%Rh; dust-free, vibration-free, and free from flammable, explosive, or corrosive gases.
Main Parameters	1. Operating Voltage: DC24V 5A (standard: AC100240V power adapter) 2. Total Power: 100W 3. Type: Program-controlled, room-temperature operation 4. Drive Motor: High-precision stepper motor 5. Speed Range:  -X-axis (transverse): 5005000 mm/min  - Z-axis (lifting): 1200 mm/min 6. Dwell Time: 1999 s 7. Drying Time: 1999 s 8. Lifting Stroke: 165 mm 9. Cycle Repetitions: 1999 times 10. Sample Stations: 5 (holds 15 sample substrates)  11. Immersion Stations: 8 groups (each with 5 liquid cup stations)  12. Max. Immersion Depth: ≤65 mm 13. Substrate Dimensions (L × W × Thickness): 75mm × 25mm × 2.5mm 14. Max. Load Capacity: ≤250 g 15. Cup Specification (beaker): 100 ml 16. Display & Control: 4.3-inch color touchscreen < 17. Product Dimensions & Weight:  - Dimensions: 900mm (L) × 520mm (W) × 540mm (H)  - Weight: ≈20 kg

Note: The standard power adapter specifications are:

· Input: AC100-240V 50/60Hz

· Output: DC24V 5A

· Actual power supply parameters are subject to the label on the rear of the device.

Standard Accessories:

No.	Name	Quantity
1	Cup Holder Plate	1 pc
2	Clip Holder Plate	1 pc
3	Sample Cups	40 pcs
4	Clips	5 pcs
5	Protective Covers	2 pcs

Optional Accessories:

No.	Name	Category
1	Custom-sized sample cups and cup holders	(Optional)
2	Constant-Temperature Water Bath (Power: 800W; Temp. Range: RT-70°C; Accuracy: ±1°C; Capacity: 25L)	(Optional)
