Millimeter Programmable Dip Coater with Touch Screen Digital Controller

Millimeter Programmable Dip Coater with Touch Screen Digital Controller

Overview

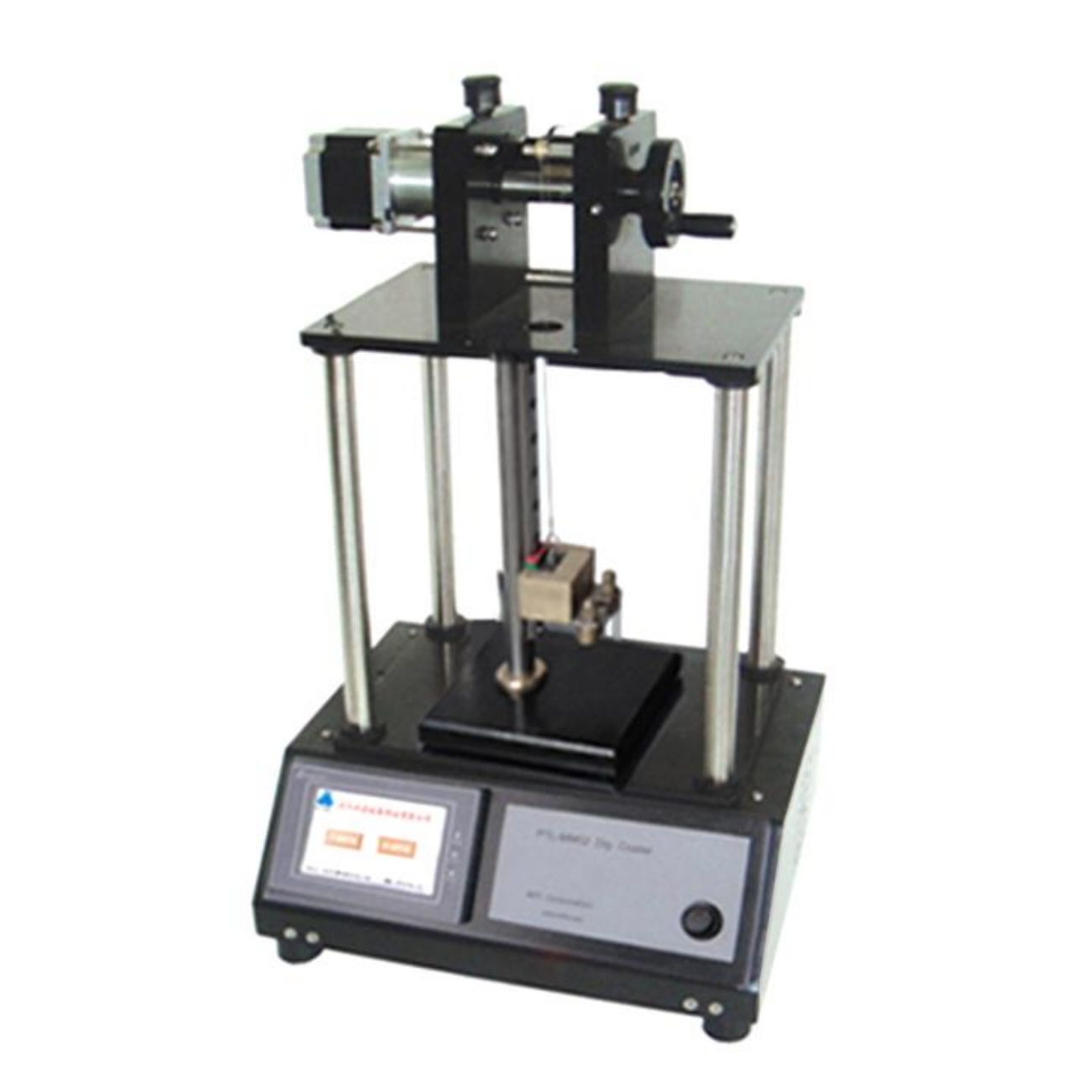

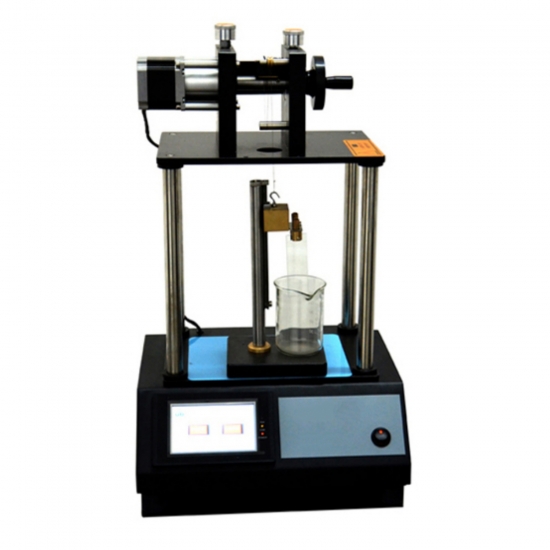

The TMAX-KJ01Bis a Desktop Programmable Dip Coater featuring a color touch screen controller, designed for R&D laboratories to prepare optical or epitaxial films from liquid solutions. Fully programmable parameters include dipping rate, pulling rate, dwell time, and cycle count. Compatible for use within an Argon (Ar) gas glovebox.

Specifications

Dipping/Pulling Speed

· Adjustable Range: 1–200 mm/min

· Accuracy: ±0.05%

· Optional High-Speed Upgrade: Up to 1000 mm/min (additional cost: $1800)

Control Panel

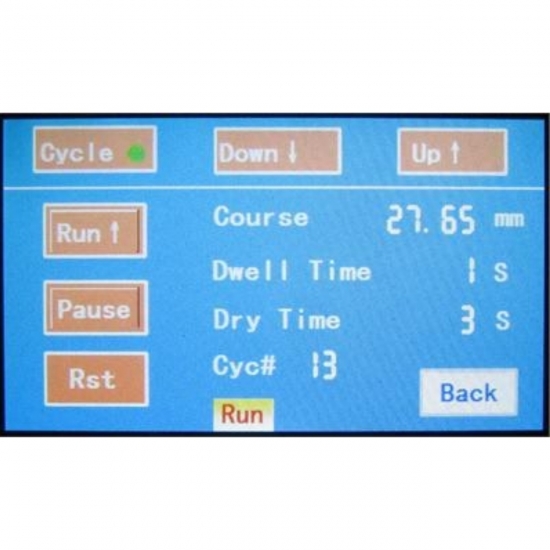

· 6" LCD Touch Screen with programmable settings for:

o Dipping/Pulling Speed: 1–200 mm/min (±0.05%)

o Dipping/Pulling Distance: 75 mm

o Dwell Time: Up to 999 seconds

o Cycle Count: Up to 20 cycles

Power & Compatibility

· Input Voltage: 100–240 VAC (universal adapter included)

· Operating Voltage: DC 24V, 90W max

· Glovebox Compatibility: Suitable for use under Argon (Ar) atmosphere

Mechanical & Sample Handling

· Sample Holder:

o Equipped with two screw-adjustable clips

o Slides vertically on dual guide rods

· Beaker Holder:

o Securely holds coating solution containers

· Included Solution Container:

o 150 mL beaker (standard)

Sample Specifications

· Max. Sample Dimensions: 50 mm (L) × 25 mm (W) × 2.5 mm (T)

· Max. Sample Weight: 250 g

Motor & Construction

· Drive Motor: Precision stepping motor

· Dimensions (L × W × H): 340 mm × 360 mm × 540 mm

Certifications & Warranty

· Standard Certification: CE Marked

· Warranty: 1-year limited warranty with lifetime technical support

Operation & Applications

· For Optimal Coating Results:

o Pre-treat substrates with a plasma cleaner

o Use ultrasonic dispersion for nanopowders or solution homogenization

o Extension frame available for larger samples

o Compatible with vacuum glove box operation

· Research Applications:

o Fabrication of colloidal self-assembled monolayers (SAMs)

o Thin-film deposition for optical/epitaxial coatings

Weight & Shipping

· Net Weight: 45 lbs (20.4 kg)

· Shipping Weight: 100 lbs (45.4 kg)

Standard Package Contents
