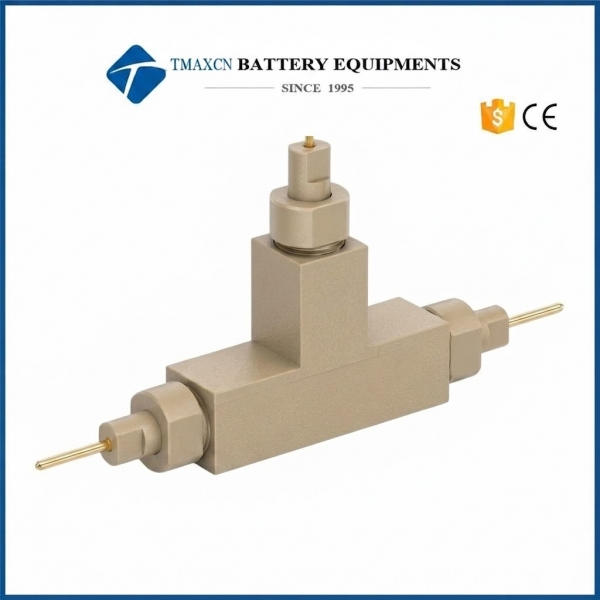

Peek Swagelok Cell Three -Electrode for Battery

SLC-P is a Swagelok cell designed for high-throughput R&D battery material testing with quick assembling and disassembling. It can be used for both liquid and solid-state batteries

Specifications

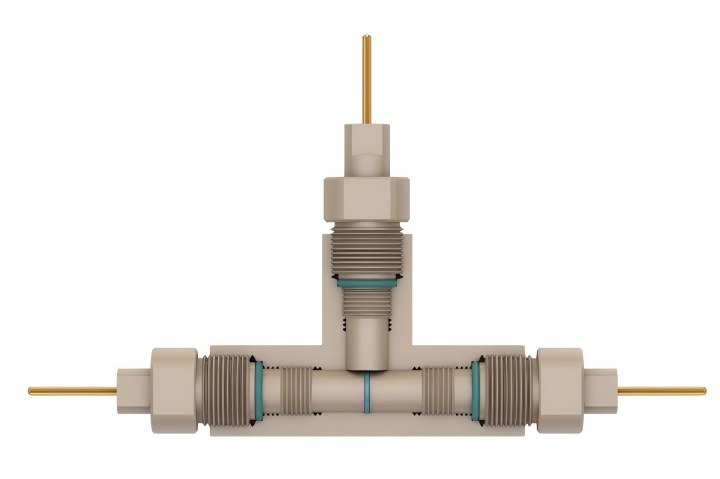

·  The working electrode, separator (or not), counter electrode, and reference electrode were assembled into the Swagelok cell by tightening the screw knob.

· The cell body is made of PEEK.

· The maximum acceptable electrode size is 16mm. The glass carbon with Φ3 size (active area) is used to connect with the anode and cathode.

· Two Glassy Carbon Electrodes and a reference electrode are included in the package.

· The Ag/AgCl reference electrode is included for fundamental electrochemistry study. If customer is using it for battery research, then a reference electrode (O.D. 6 mm) with glassy carbon core to support the Li/Na metal should be additionally purchased. (This change is made from Feb. 20, 2025).

The electrolyte is injected into the cell through the reference electrode port.
