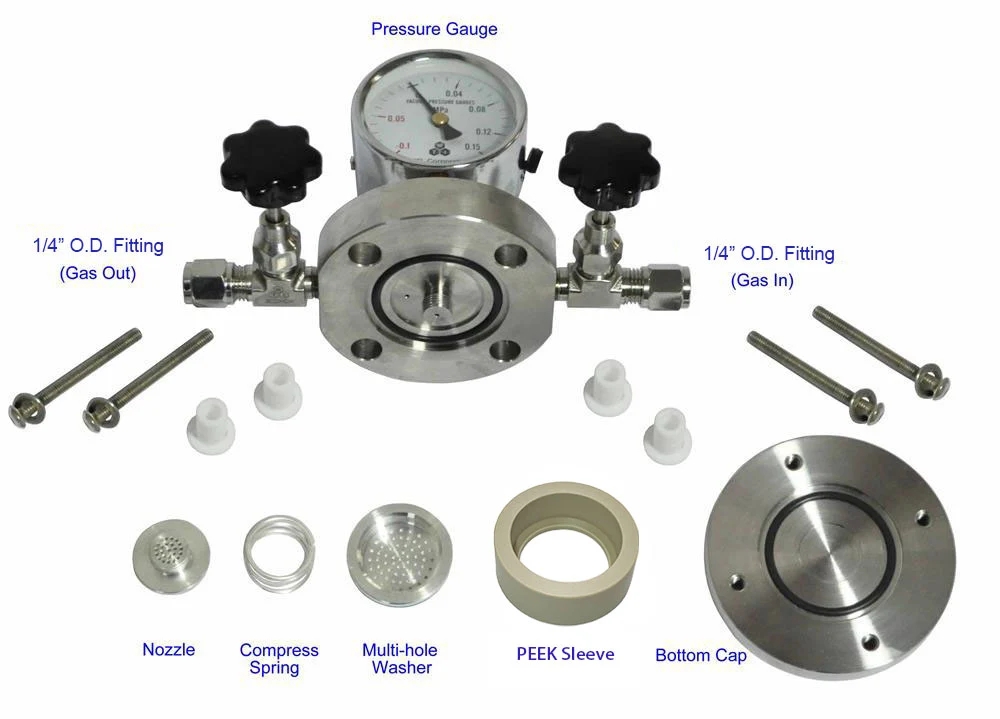

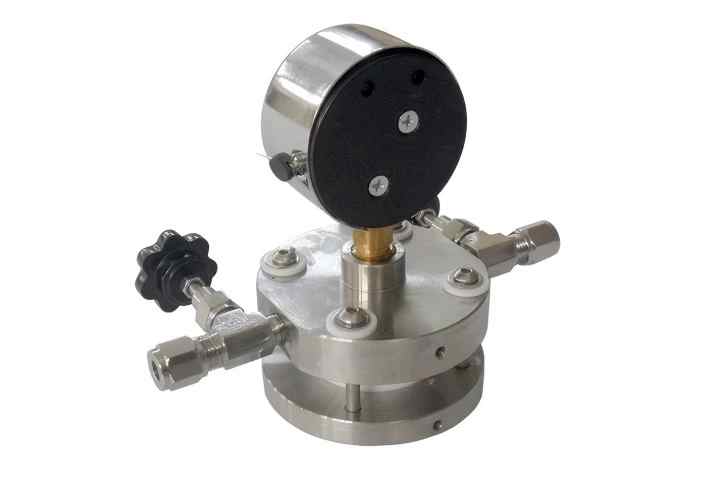

Structure

· SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection

· Two electrodes design

· Electrolyte corrosive-proof PEEK Guide Sleeve and Sealing O-rings

· The compact design fits in any benchtop glove boxes

Cell Thickness

· 1~3mm (cathode + separator + anode)

Bottom Recess Area

· 20 mm Diam.

Max. Working Temperature

· 200°C (The default PEEK sleeve works well in this temperature range)

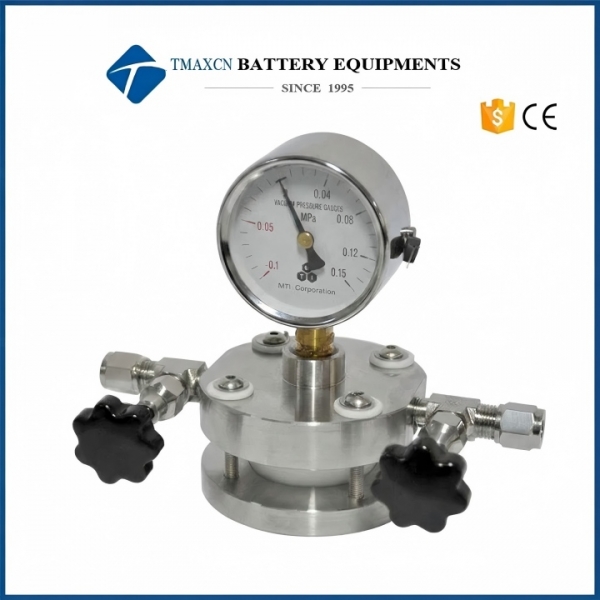

Pressure Gauge

· Mechanical pressure gauge with a display range from -0.1~0.15Mpa

Valves & Fittings

· Two Stainless Steel needle valves with 1/4" O.D Tube Fittings
