Vertical Heating Roll Press Calender Machine with Unwinder and Rewinder
Model Number:
TMAX-JSF100Type:
Roller Press MachineDimension(L*W*H):
100mm-400mm WidthNet Weight:
135kgCompliance:
CE CertifiedWarranty:
One-year warranty and lifetime maintenanceDelivery Time:
5 days
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
products categories
- Battery Production Equipment Line
- Battery Lab Pilot Equipment Line
- Lithium Battery Pack Assembly Line
- Solid State Battery Assembly Line
- Sodium Ion Battery Production Line
- Supercapacitor Assembly Line
- Lithium Ion Battery Recycling Plant
- Dry Electrode Preparation Solution
- Perovskite Based Solar Cell Lab Line
- Electrode Preparation
- Li ion Battery Materials
- Metal Foam
- Cathode Active Materials
- Anode Active Materials
- Customized Battery Electrode
- Coin Cell Parts
- Lithium Chip
- Cylindrical Cell Parts
- Battery Current Collectors
- Battery Conductive Materials
- Electrolyte
- Metal Mesh
- Battery Binder
- Separator and Tape
- Aluminum Laminate Film
- Nickel Strip
- Battery Tabs
- Graphene Materials
- Nickel Felt
- Titanium Fiber Felt
- Battery Pack Machine & Compoments
- Battery Pack Compoments
- Turnkey Solutions Battery Pack Assembly Line
- Cell Sorter
- Battery Pack Spot Welder
- Laser Welder
- Battery Charging Discharging Tester
- Battery Pack Aging Machine
- Battery Pack Comprehensive Tester
- Battery Pack Compression Machine
- CCD Visual Inspector
- Battery Pape Sticking Machine
- BMS Testing Machine
- Al Wire Bonding Machine
- Lithium Battery Machine
- Battery Tester & Analyzer
- Battery Safety Tester
- Material Characterization Tester
- Rolling Press Machine
- Spot Welding Machine
- Vacuum Mixer Machine
- Crimping/Disassembling Machine
- Vacuum Sealing Machine
- Electrolyte Filling
- Stacking/Winding Machine
- Electrode Cutter/Slitter
- Pouch Forming Machine
- NMP Solvent Treatment System
- Lithium Battery Production Plant
- Vacuum Glove Box
- Furnaces
- Hydraulic Press Machine
- Coater
- Ball Mill
- Laboratory Machine
- Planetary Centrifugal Mixer
- Vacuum Oven
- Temperature Humidity Test Chamber
- Hardness Tester
- Spray Dryer
- Incubator
- Rotary Evaporators
- Viscometer
- Three Roller Mill
- Surface Area Analyzer
- Laboratory Crusher
- UV Curing Machine
- Ultra-Low Freezers
- Water Chiller
- Laser Cleaning Machine
- Cutting Machine
- Battery
- Other Lab Equipment
contact us
- If you have questions, please contact us, all questions will be answered
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Add : No. 39, Xinchang Road, Xinyang, Haicang Dist., Xiamen, Fujian, China (Mainland)
Previous:
Split Test Cell for Lithium Air Battery ResearchNext:
Electric Heated Dual-Roll Press for Electrode Calendering

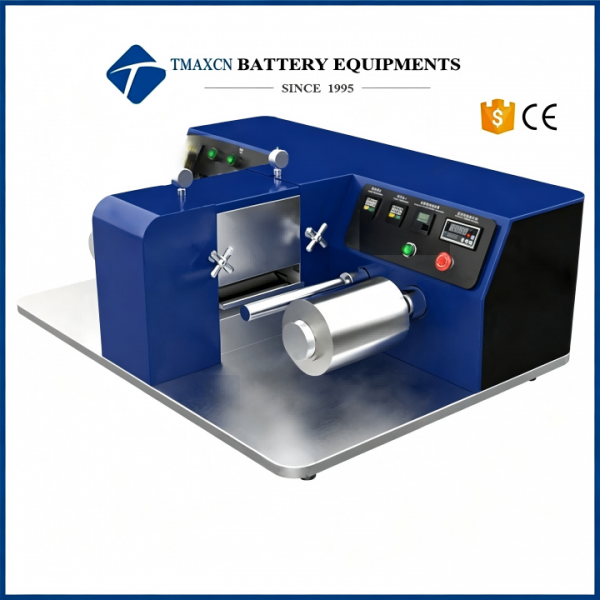

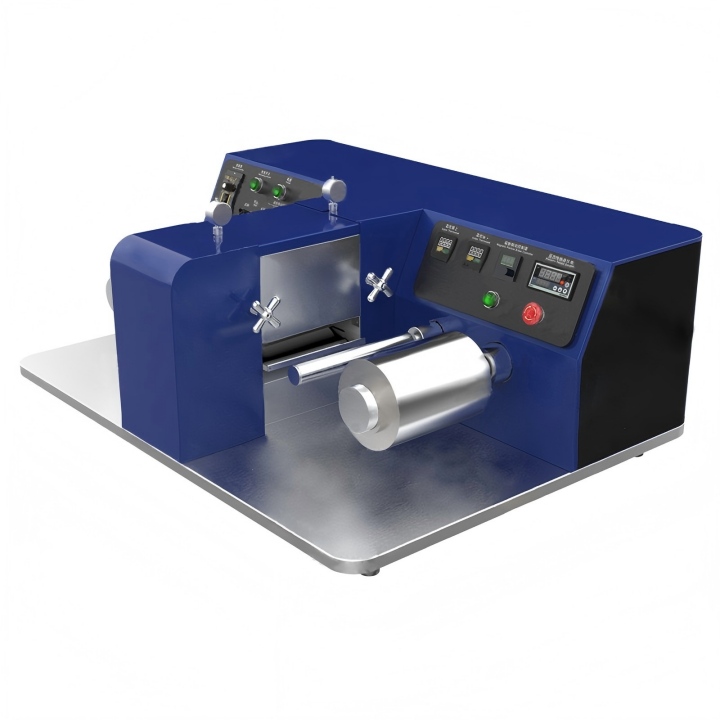

Vertical Heating Roll Press Calender Machine with Unwinder& Rewinder
Application
The TMAX-JSF100 electric heated two pess rolling machine is designed for laboratory-scale rolling of battery materials, precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium ion battery electrodes in clean energy applications.
Technical Specifications
Parameter |
Specification |
Roller Diameter |
Φ96mm |
Roller Surface Hardness |
HRC62 or above |
Roller Surface Finish |
0.4 or above |
Rolling Thickness |
0-2mm |
Pressing Width |
0-100mm |
Roller Placement |
Vertical |
Rolling Temperature |
Up to 200°C |
Feeding Speed |
0-10mm/s |
Power Supply |
AC220V or 110V/ 50Hz |
Power Consumption |
2000w |
Machine Dimensions |
L1090mm × W815mm × 375mm |
Machine Weight |
200kg |
