Double Sides Spot Welding Machine

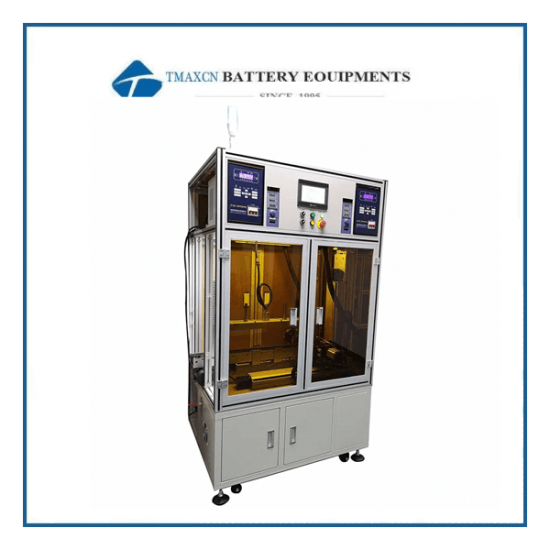

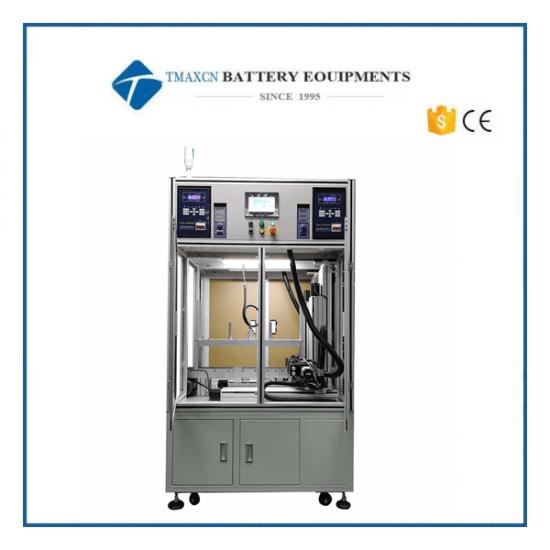

Pneumatic Numerical Control Double Sides Spot Welding Machine for Electric Bike Battery/Lifepo4 Battery Pack Making

  • Model Number:

    TMAX-PCN-S2
  • Type:

    Automatic
  • Dimension(L*W*H):

    1200mm*1600mm*1950mm
  • Net Weight:

    300kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Update:

    Optional
  • Shipping Port:

    Xiamen Port
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details



Pneumatic Numerical Control Double Sides Spot Welding Machine for Electric Bike Battery/Lifepo4 Battery Pack Making


Features

1. Support breakpoint start, automatic start and manual start mode conversion

2. It has the function of local welding and desoldering alarm

3. Simple programming, support any point programming and array programming. It can store 99 groups of programming files.

4. Warning of solder pin replacement forecast.

5. With welding current monitoring system, it can monitor welding current in real time.


Specifications

Y-axis Travel

500mm

Z1. Z2-axis Travel

350mm

Welding Speed

0.5S/point,2800pcs/h

Maximum speed of motor transmission

1000mm/s

Maximum number of cells loaded

450pcs(18650 cell)

Number of storable file groups

99 groups

Operating system

Embedded system + man machine interface

Transmission mode

Stepping + imported precision linear guide rail, optional servo + screw rod)

Power supply

Single phase, 220V,50Hz

Air supply

0.4-0.7Mpa

Weight

300kg

Size

1200mm*1600mm*1950mm
