Hot Press Machine

Pouch Cell Hot Press Machine with Short Circuit Test Function

  • Model Number:

    TMAX-DRY200

  • Compliance:

    CE Certified

  • Warranty:

    One year limited warranty with lifetime technical support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

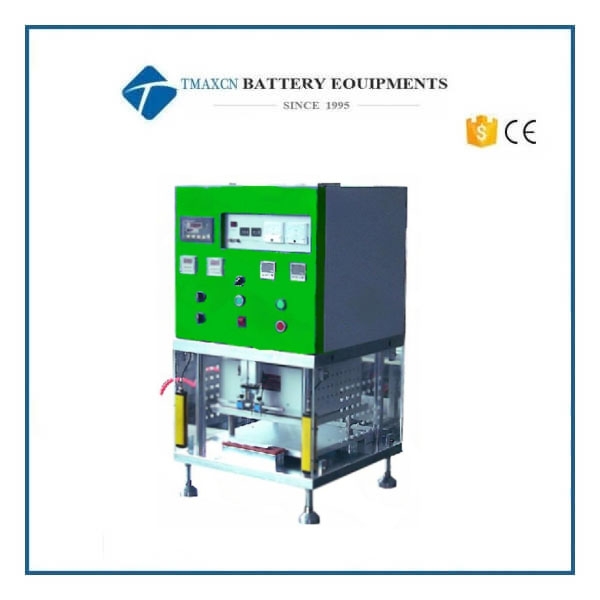

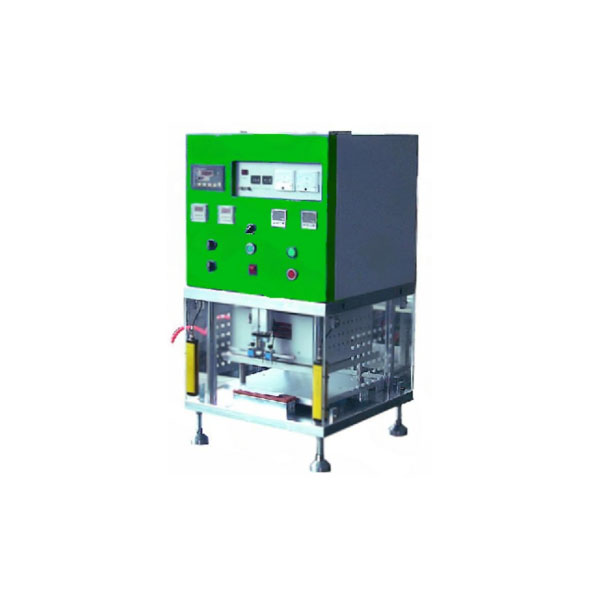

Pouch Cell Hot Press Machine with Short Circuit Test Function



Application

The Pouch Cell Hot Press Machine is designed for thermal compression forming of battery cells, using heat and pressure to uniformly shape pouch cells, reduce spring-back, decrease short-circuit risk during assembly, and ensure consistent finished thickness. It also includes an insulation resistance tester to detect micro-circuit faults and assess cell safety.



Main Features

  • Precision Heating & Pressure Management
Configurable temperature and pressure settings with real-time LCD touchscreen feedback, enabling intuitive control and accurate parameter adjustments.
  • Adaptive Pressure System
Parallel platens with regulator-controlled pressure range (0–900 ±3 kg), optimized for versatile manufacturing requirements and consistent compression results.
  • Robust Single-Station Architecture
Monolithic design ensures structural rigidity and operational reliability, minimizing downtime and maintenance needs.
  • Energy-Efficient Thermal Transfer
High-grade heater plates deliver rapid, uniform heat distribution, reducing energy consumption while enhancing processing speed.
  • Integrated Safety Mechanisms
Light curtain sensor prevents unintended operation during material loading/unloading, ensuring operator safety.
  • Dual-Mode Electrical Testing
Automated and manual short-circuit detection modes enable quick safety assessments and quality control checks.
  • Advanced Circuit Integrity Analysis
Leakage current and insulation resistance monitoring system evaluates micro-circuit safety and manufacturing consistency.
  • Space-Saving Industrial Design
Geometric sheet-metal enclosure combines compact footprint with modern aesthetics, optimizing workspace utilization.
  • Flexible Operational Modes

Programmable automated cycles or manual override functionality for setup, calibration, and troubleshooting.


Technical Specifications

Parameter

Specification

Pressure Range

0–900 kg ±3 kg

Travel Distance

0–80 mm

Maximum Cell Size

L200 × W200 × H70 mm

DC Test Voltage

Adjustable 0–500 V

Max Detectable Leakage Current

50 µA

Insulation Resistance Range

Up to 199 MΩ

Test Duration

0–99 s adjustable

Temperature Accuracy

±4 °C

Temperature Range

Room temperature to 130 °C

Weight

Approx. 180 kg

Power Supply

AC 220 V / 50 Hz

Pouch Cell Hot Press Machine
