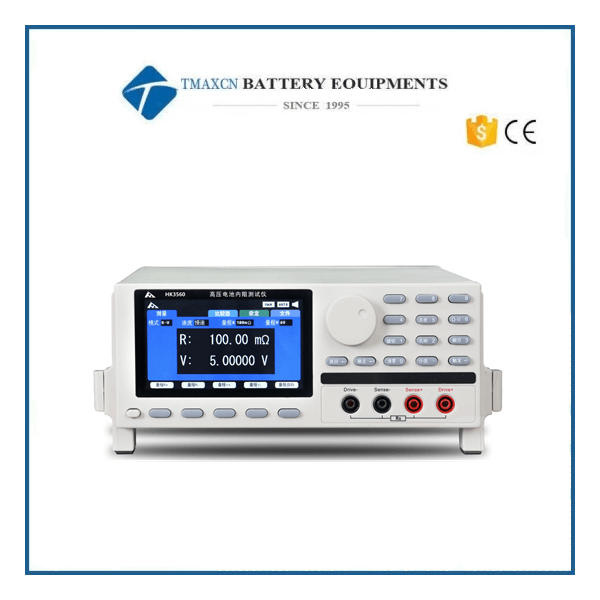

Precision Battery Internal Resistance Tester

Performance introduction

With the rapid development of industries such as portable electronic products and hybrid vehicles, the demand for batteries is increasing. Battery manufacturers need to sort and match large quantities of batteries with high efficiency and high precision. With years of experience accumulated by Hepu Technology in the battery measurement industry, the HK3560 battery internal resistance tester developed to meet this demand.

1)Easy setup

*3.5 inch TFT, Chinese and English menu

*Based on ARM, multi-task execution

*Window menu, easy to operate

2)High precision

*The basic accuracy of internal resistance is 0.3%, and the voltage accuracy is 0.01%

*Internal resistance range: 0.1μΩ~3kΩ

*Voltage range: 10μV~60 V

*Internal trigger/manual trigger/external trigger/bus trigger/automatic trigger

Technical parameter

Function

Basic function

HK3560 uses ARM processor based on multi-task architecture, TFT liquid crystal display, Chinese menu. Excellent performance, not only suitable for batch testing of battery assembly lines, but also suitable for scientific research evaluation of batteries in the laboratory. With the multi-channel scanner, it can be widely used for battery multi-level sorting and battery grouping.

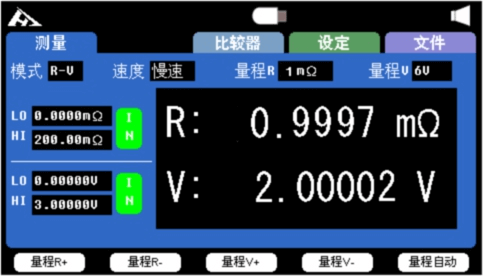

Test interface

*Resistance resolution 0.1uΩ, voltage resolution 10uV

*Range can be set manually or automatically

*Simultaneous display of voltage, resistance, sorting, and abnormal signals

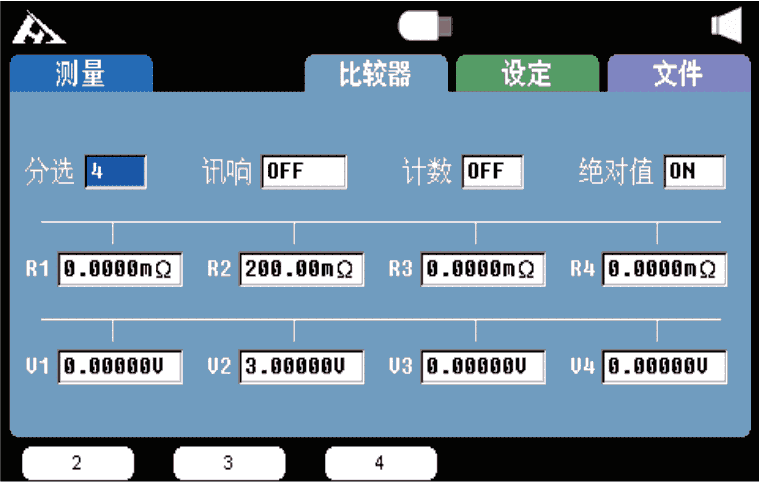

Panel interface

*Comparator can be set for multi-level sorting

*Voltage resistance can output sorting gear signals separately

*Counting function and absolute value comparison can be set

*Can set up qualified or unqualified alarm sound

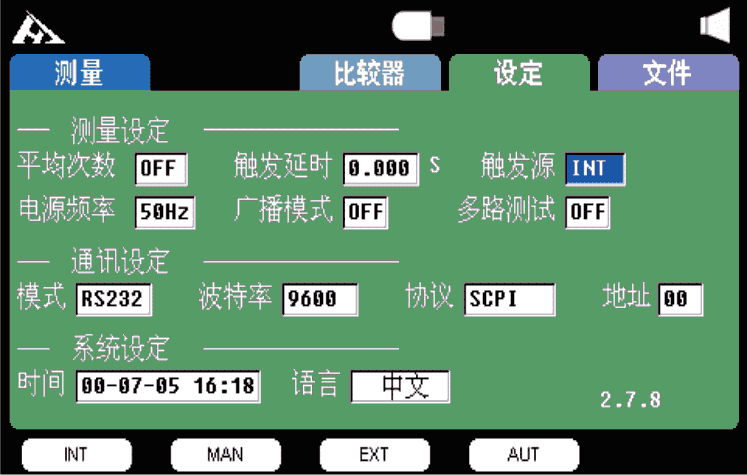

IQ function

*The number of averages can be set to increase accuracy

*4 trigger modes to meet different needs

*Unique AUT trigger mode, automatically judge the connection and test

*Multiple communication modes and protocols are suitable for different occasions
