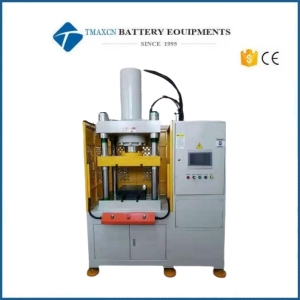

800T Four Column Hydraulic Powder Press Machine For Industrial Production

800T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. The YST-800T type machine is a large-scale tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets. It is suitable for pressing large-scale products with high density requirements. At the same time, it can produce multiple tablets in one mold and is applicable to large-scale production industries. The equipment has high precision and the mold replacement and installation are convenient and easy to learn. High degree of automation. All actions are controlled by a microcomputer PLC and operate continuously and automatically. The pressing time, pressure and product thickness can be appropriately adjusted. Ensure stable product pressure, consistent density and small dimensional error. The entire hydraulic system adopts imported hydraulic components, which ensures higher stability and avoids problems such as oil leakage, easy oil dirtiness, insufficient pressure, and asynchronous and continuous actions. The working part and the hydraulic system part are separated and independent, causing no pollution. It features automatic heat dissipation, reducing equipment wear and tear.   Technical parameter No Model number YST-800T 1 Work pressure 800T, 0-800T adjustable 2 System pressure 800T 4 The maximum stroke for the upward rush 150mm 5 Downward rush stroke 100mm (Customized according to the thickness of the customer's product, adjustable within a certain range.) 6 Filling height 100mm(customizable according to product height) 7 Production capacity 3-4 molds per minute, multiple pieces per mold (according to customer requirements) 8 Motor power Siemens 22KW, 380V 9 Appearance The equipment is integral and fully enclosed with stainless steel 10 Size 2800*1800*3000(mm) length * width * height, subject to actual dimensions. 10 Weight 20T 11 Supplementary Note Hydraulic system: Taiwan Xutian PLC: Wuxi Guangyang Motor: Siemens Electrical appliances: Schneider Switch: Omron

100T Four Column Hydraulic Powder Press Machine For Industrial Production

100T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-100T type machine is a large-scale tablet press independently developed by our factory. It can press multiple granular, powdered and crystalline raw materials into various common and special-shaped tablets. High pressure and high stability. It can be used for tablet forming in various industries. The entire equipment integrates the pressing system and the hydraulic system, presenting a simple, elegant and high-end appearance. The internal system adopts a professional hydraulic system imported from Taiwan, combined with PLC computer control. The entire movement is continuously automated. At the same time, it can avoid the problems of oil leakage and the need for frequent replacement of easily dirty oil. The mold pressing part can produce multiple pieces at a time or a single piece at a time, meeting various customer requirements. The pressing time can be appropriately adjusted by the PLC. The operation and replacement of molds are simple and easy to understand, which greatly facilitates customers. During the pressing process, limit contactors can be installed according to customer requirements to enhance production safety and quality.   Technical parameter No Model YST-100 1 Work pressure 100T double-layer, upper and lower double oil cylinders, each with a pressure of 100 tons, capable of bidirectional tablet pressing 2 Upward stroke and downward stroke Upward stroke: 150mm, The downward stroke is 100mm 3 Loading height According to the actual product thickness and compression ratio 4 Output 6 to 8 molds per minute, multiple pieces in one mold (depending on the actual pressure required for product molding) 6 Motor power 11KW, 380V Siemens 7 Hydraulic system Taiwan Xutian 8 PLC Guangyang 9 Dimension  800*1600*2200 10 Weight 4000KG

16T Four Column Hydraulic Powder Press Machine For Industrial Production

16T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. The YST-16T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements. Highlight 1: The equipment has high precision, and the mold replacement and installation are convenient and easy to learn. Highlight 2: All actions are controlled by a microcomputer PLC, featuring a high degree of automation. Highlight 3: Multiple pieces can be produced in one mold, and the pressing time, pressure and product thickness can also be appropriately adjusted. Our company has been engaged in the research and development and manufacturing of non-standard tablet presses for many years. Our equipment has a wide range of applications and we also provide our own mold processing and manufacturing services. We have accumulated a lot of experience in product pressing. While providing equipment and molds, we can also offer customers certain technical support for products and molds. After the equipment arrives, our company will arrange professional technicians to install and debug it on-site and provide training for the operators. The equipment is guaranteed for one year. During this period, our company will provide free spare parts and on-site service. The entire hydraulic system is imported from Taiwan, which offers higher stability and avoids problems such as oil leakage, easy oil dirtiness, insufficient pressure, and asynchronous and continuous actions. The working part and the hydraulic system part are separated and independent, causing no pollution. It features automatic heat dissipation, reducing equipment wear and tear.   Technical parameter No Model YST-16T 1 Work pressure 16T, adjustable from 0 to 16 tons, capable of bidirectional tablet pressing. The pressure can be directly displayed on the oil gauge through the regulating valve, making the operation convenient and simple. 2 Stroke The upper cylinder stroke is 150mm, and the lower cylinder stroke is 150mm. The stroke can be customized to be extended. 3 Filling height According to the pressure required by the product, the maximum is 100mm. The height of the packing and the stroke of the oil cylinder can both be increased as per actual requirements. 4 Tablet pressing description One mold for multiple pieces, according to the pressure required for the actual molding of the product 5 Production capacity 6 to 8 tablets per minute 6 Motor power 3KW,380V, German Siemens 7 Hydraulic system Taiwan Xutian, PLC Wuxi Guangyang 8 Size The dimensions are 750*1300*1800, subject to actual size. The body is fully made of stainless steel (with plastic spraying). 9 Weight 990kg

25T Four Column Hydraulic Powder Press Machine For Industrial Production

25T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-25T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.   Technical parameter No Model YST-25T 1 Work pressure 25T, adjustable from 0 to 25 tons, capable of bidirectional tablet pressing. The pressure can be directly displayed on the oil gauge through the regulating valve, making the operation convenient and simple. 2 Stroke The upper cylinder stroke is 150mm, and the lower cylinder stroke is 150mm. The stroke can be customized to be extended. 3 Filling height According to the pressure required by the product, the maximum is 100mm. The height of the packing and the stroke of the oil cylinder can both be increased as per actual requirements. 4 Tablet pressing description One mold for multiple pieces, according to the pressure required for the actual molding of the product 5 Production capacity 4 to 6 tablets per minute 6 Motor power 3KW,380V, German Siemens 7 Hydraulic system Taiwan Xutian, PLC Wuxi Guangyang 8 Size The dimensions are 750*1300*1950, subject to actual size. The body is fully made of stainless steel (with plastic spraying). 9 Weight 1500kg

30T Four Column Hydraulic Powder Press Machine For Industrial Production

30T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-30T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.   Technical parameter No Model YST-30T 1 Work pressure 30T, adjustable from 0 to 30 tons, capable of bidirectional tablet pressing. The pressure can be directly displayed on the oil gauge through the regulating valve, making the operation convenient and simple. 2 Stroke The upper cylinder stroke is 150mm, and the lower cylinder stroke is 150mm. The stroke can be customized to be extended. 3 Filling height According to the pressure required by the product, the maximum is 100mm. The height of the packing and the stroke of the oil cylinder can both be increased as per actual requirements. 4 Tablet pressing description One mold for multiple pieces, according to the pressure required for the actual molding of the product 5 Production capacity 4 to 6 tablets per minute 6 Motor power 3KW,380V, German Siemens 7 Hydraulic system Taiwan Xutian, PLC Wuxi Guangyang 8 Size The dimensions are 750*1300*1980, subject to actual size. The body is fully made of stainless steel (with plastic spraying). 9 Weight 1800kg

45T Four Column Hydraulic Powder Press Machine For Industrial Production

45T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-45T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.   Technical parameter No Model YST-45T 1 Work pressure 45T, adjustable from 0 to 45 tons, capable of bidirectional tablet pressing. The pressure can be directly displayed on the oil gauge through the regulating valve, making the operation convenient and simple. 2 Stroke The upper cylinder stroke is 150mm, and the lower cylinder stroke is 150mm. The stroke can be customized to be extended. 3 Filling height According to the pressure required by the product, the maximum is 100mm. The height of the packing and the stroke of the oil cylinder can both be increased as per actual requirements. 4 Tablet pressing description One mold for multiple pieces, according to the pressure required for the actual molding of the product. Mold material is 420 stainless steel, heat treatment. All parts in contact with materials are made of 304 stainless steel 5 Production capacity 5 to 6 tablets per minute 6 Motor power 7.5KW,380V, German Siemens 7 Hydraulic system Taiwan Xutian, PLC Wuxi Guangyang 8 Size The dimensions are 750*1300*2000, subject to actual size. The body is fully made of stainless steel (with plastic spraying). 9 Weight 2000kg

200T Four Column Hydraulic Powder Press Machine For Industrial Production

200T Four Column Hydraulic Powder Press Machine For Industrial Production   Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-200T tablet press is a large-scale (stainless steel type or powder-coated type) tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets, and is suitable for pressing large-sized products with high density requirements.   Technical parameter No Model YST-200T 1 Work pressure 200T, adjustable from 0 to 200 tons 2 Cylinder pressure The upper cylinder is 200T, and the lower cylinder is 200T 3 Cylinder stroke Upper cylinder: 150mm; lower cylinder: 100mm(Customized according to the thickness of the customer's product and adjustable within a certain range.) 4 Filling height 100mm 5 Production capacity 3 tablets per minute, one mold with multiple pieces (according to customer requirements), diameter 2.5cm, thickness 4cm 6 Motor power 15KW,380V, German Siemens 7 Appearance Fully Stainless Steel 8 Size 1600*1750*2500 9 Weight 2000kg

300T Four Column Hydraulic Powder Press Machine For Industrial Production

300T Four Column Hydraulic Powder Press Machine For Industrial Production Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. The YST-300T type machine is a large-scale tablet press independently developed by our factory. It can press multiple granular, powdered and crystalline raw materials into various common and special-shaped tablets. High pressure and high stability. It can be used for tablet forming in various industries. The entire equipment integrates the pressing system and the hydraulic system, presenting a simple, elegant and high-end appearance. The internal system adopts a professional hydraulic system imported from Taiwan, combined with PLC computer control. The entire movement is continuously automated. At the same time, it can avoid the problems of oil leakage and the need for frequent replacement of easily dirty oil. The mold pressing part can produce multiple pieces at a time or a single piece at a time, meeting various customer requirements. The pressing time can be appropriately adjusted by the PLC. The operation and replacement of molds are simple and easy to understand, which greatly facilitates customers. During the pressing process, limit contactors can be installed according to customer requirements to enhance production safety and quality. Technical parameter No Model YST-300 1 Work pressure 300T 2 The maximum itinerary for the upward rush 150MM (can be modified according to the actual product) 3 Packing height According to the product compression ratio 4 Output Four times per minute 5 Motor power 22KW, 380V, Siemens 6 Size 2300 * 1800 * 2700 7 Weight 8000kg 9 Hydraulic system The hydraulic system adopts the brand Xutian from Taiwan Xuzhan Company, including valve blocks

500T Four Column Hydraulic Powder Press Machine For Industrial Production

500T Four Column Hydraulic Powder Press Machine For Industrial Production Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-500T type machine is a large-scale tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets. It is suitable for pressing large-scale products with high density requirements. At the same time, it can produce multiple tablets in one mold and is applicable to large-scale production industries. The equipment has high precision and the mold replacement and installation are convenient and easy to learn. High degree of automation. All actions are controlled by a microcomputer PLC and operate continuously and automatically. The pressing time, pressure and product thickness can be appropriately adjusted. Ensure stable product pressure, consistent density and small dimensional error. The entire hydraulic system adopts imported hydraulic components, which ensures higher stability and avoids problems such as oil leakage, easy oil dirtiness, insufficient pressure, and asynchronous and continuous actions. The working part and the hydraulic system part are separated and independent, causing no pollution. It features automatic heat dissipation, reducing equipment wear and tear. It is necessary to undertake the hydraulic oil and circulating cooling water devices required for the operation of the equipment, as well as the working power supply of the equipment. Technical parameter No Model number YST-500T 1 Work pressure 500T, adjustable from 50 to 500 tons. It can press tablets in both directions. The pressure can be directly displayed on the oil gauge through the regulating valve. The operation is convenient and simple, and it can maintain long-term pressing at 500 tons. 2 Stroke The upper cylinder stroke is 300mm and the lower cylinder stroke is 350mm. 4 The maximum itinerary for the upward rush 150mm 5 Downward rush stroke 100mm (Customized according to the thickness of the customer's product, adjustable within a certain range.) 6 Filling height 100mm(customizable according to product height) 7 Production volume 3-4 molds per minute, multiple pieces per mold (according to customer requirements) 8 Motor power Siemens 22KW, 380V 9 Appearance The equipment is integral and fully enclosed with stainless steel 10 Size 2800*1900*3200(mm) length * width * height, subject to actual dimensions. 10 Weight 12000kg 11 Note Hydraulic system: Taiwan Xutian PLC: Wuxi Guangyang Motor: Siemens Electrical appliances: Schneider Switch: Omron

10T-100T CNC 4 Post Servo Hydraulic Press Machine

10T-100T CNC 4 Post Servo Hydraulic Press Machine   Introduction The function of the equipment: press-fitting The power source of the equipment: It is powered by a fluid pressure of 25MPA, with a total power of 5.5KW Equipment structure: Four-column structure.   Working conditions 1. Working environment: Ambient temperature -10 to 45℃, relative humidity 40 to 80% 2 Power supply voltage: AC380V (±10%), frequency 50HZ (±1HZ), three-phase five-wire 3 The maximum working pressure of the liquid is 21MPA. When the room temperature is 35℃, the continuous working oil temperature does not exceed the set 65℃ 4 Use high-quality #46 hydraulic oil   Main technical parameter (30T press parameter) No Parameter Unit Vaule Note 1 Output range of the oil cylinder Tf or KN 5-30 or 50-300 2 The maximum working pressure of the oil pump MPA 21 3 The maximum working height of the sliding speed and the lower working face MM 400 4 Cylinder stroke MM 300 5 The minimum working height of the sliding speed and the lower working face MM 100 6 Effective area of the lower workbench (left and right * front and back) MM 500*400 T-slot clamping 7 Effective area of the upper working surface (left and right * front and back) MM 500*400 T-slot clamping 8 Throat depth MM 200 9 The height of the lower working face from the ground MM 900 10 The descent speed of the slider MM/S 150 11 The feed speed of the slider MM/S 1—20, adjustable 12 The rebound speed of the slider MM/S 150 13 Motor power KW 5.5KW 14 The total weight of the equipment is KG 2000 15 Repeatability accuracy of equipment pressure ±1% 16 Minimum display unit of pressure KN 1 17 Minimum display unit of displacement MM 0．01 18 The display accuracy of the downward press is MM ±0.01 19 Pressing down shows the repeat positioning accuracy as MM ±0.03 20 The sampling speed of the system for the force sensor Times/s 2000 21 Safety light curtain protection height MM 300 22 Holding pressure time MIN 0-5s 23 Parallel accuracy of the upper and lower working surfaces MM Within 0.15

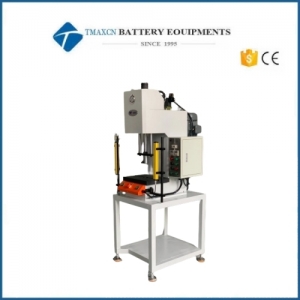

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine Introduction This series of hydraulic presses are widely used in press fitting, assembly, punching, embossing,shaping,riveting of various materials. Bending, shearing, stretching, press fitting and assembly of various small parts.lt is a multi-purpose. Press. C-type hydraulic press, simple structure, light weight, can be placed on the workbench or production line. Features 1. Adjustable hydraulic cylinder for precise positioning of the press-fit stroke. 2. The slider is controlled by up and down timers, which is easy to operate and easy to maintain 3. The pressure adjustment range is wide, and the minimum output can be adjusted to 500kgf. 4.With manual automatic two working modes. 5.Optional rack placement. 6.Can be customized according to customer requirements. Technical parameter Model BSW03-3T BSW03-5T BSW03-10T Nominal pressure(T) 3 5 10 Maximum working pressure of liquid(Mpa) 21 21 1 Surface height mm 800 800 800 Maximum opening distance mm 300 300 300 Maximum stroke (mm) 200 200 200 Workbench size Left and right mm 350 350 500 Before and after mm 250 250 300 Speed Rated load speed mm/s 85 85 85 Working speed mm/s 85 85 85 Main frame size mm 500x600x1200 500x600x1230 600x700x1430 Power (KW) 2.2 2.2 2.2

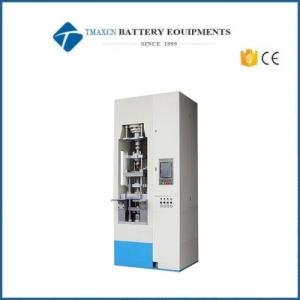

5T-20T Automatic Upper Oil Lower Electric Hydraulic Servo Press Machine

5T-20T Automatic Upper Oil Lower Electric Hydraulic Servo Press Machine   Introduction The upper oil lower electric powder forming machine adopts a 3R mold changing and positioning system. The servo motor drives the lead screw to drive the upper punch, mother mold and lower punch to move up and down with high precision. The powder is injected into the female mold through the hopper, material pipe and material shoe to achieve fully automatic functions such as powder pressing and forming, demolding, material picking and tray loading. Equipment forming speed: 1-30 revolutions per minute; Forming accuracy: ≤0.02mm; Repeatability accuracy: ≤0.005mm; Drive mode: Pure electric, oil on top and electricity at the bottom. Formwork structure: top one bottom one, top one bottom two, top one bottom three, top two bottom two, top two bottom three, top two bottom four; All parameters can be customized as needed. Features 1) The powder is formed by the servo motor driving the lead screw to rotate the upper punch, the mother mold and the lower punch to move up and down. The product has uniform density, uniform size and stable weight. 2) It features a reasonable structure, stable performance, firm operation, reliable durability, high working accuracy and high efficiency. 3) High-definition LCD screen, user-friendly human-machine interface, precise control, intuitive and simple operation, and convenient maintenance. 4) Safety: The moving parts adopt a fully enclosed design to eliminate operational safety hazards and ensure no blind spots in safe production. 5) Environmental friendliness: The entire machine adopts a fully dust-proof design, is easy to clean, has no oil or powder leakage, and generates low noise. 6) The guide sleeve parts of the equipment are automatically oiled to ensure no grinding occurs, and the oil injection pump automatically alarms when it is short of oil. Application This product is widely used in the following industries: 1. Hard alloys: tungsten carbide, tungsten oxide, etc. 2. Ceramic powders: alumina, zirconia, silicon carbide, silicon oxide, etc. 3. Magnetic materials: manganese-zinc ferrite, nickel-zinc ferrite, neodymium iron boron, aluminum-iron-boron, iron-silicon-aluminum, etc. The products are applied in industries such as inductor cores, integrated inductors, semiconductors, communication base stations, various power supplies, consumer electronics, medical care, industrial electronics, construction machinery, electric vehicles, and new energy (photovoltaic, energy storage, wind power). Technical parameters Model FM-5T FM-10T FM-15T FM-15T FM-20T FM-20T Maximum pressure (T) 5 10 15 15 20 20 Maximum demolding force (T) Concave mold 5 5 8 8 10 8 Second stroke / 4 / 7 6 / Maximum filling depth (mm) Concave mold 30 50 50 50 60 50 Excess material/shortage (mm) 0-5 0-5 0-5 0-5 0-5 0-5 Upward stroke (mm) 150 150 150 150 150 150 Upward stroke adjustment (mm) 30 30 30 30 30 30 Die surface adjustment allowance (mm) 5 10 10 10 10 10 Maximum forming speed (S.P.M) 8-35 8-35 8-35 8-35 8-35 8-35 Motor power (KW) Upstroke servo motor 5.5 11 15 15 15+Reducer 15+Reducer Downstroke servo motor 4.4 2.9 7.5 7.5 4.4+Reducer 7.5 Lower two-stroke servo motor / 2.9*2 / 5.5*2 4.4*2 / Feeding servo motor 0.4 0.4 0.4 0.4 0.4 0.4 Machine weight (T) 1.7 2.2 2.5 3.2 6.5 6.5 Machine dimensions (mm) Length 1150 1150 1150 1150 1250 1250 Width 1150 1150 1150 1150 1550 1550 Height 2350 2420 2850 3300 3450 3450

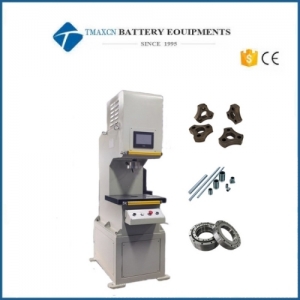

1T-12T CNC Precision Servo Electronic Press Machine

1T-12T CNC Precision Servo Electronic Press Machine   Introduction The servo press, also known as the CNC servo electronic press or precision electric cylinder press-fitting machine, is abbreviated as the electronic press. Its working principle is that the servo motor drives the high-precision ball screw to perform precise pressure assembly operations, and the entire process realizes the closed-loop control of the press-fitting force and the press-in depth. It can also be configured with functions such as heating, real-time pressure curve display, multi-station, scanning code, and automation.   Product features 1. The position control accuracy of the common electric cylinder is ±0.01mm, and that of the new type of electric cylinder is ±0.001mm 2. The speed of a common electric cylinder is 30 to 50mm/s, while that of a new type of electric cylinder is over 100mm/S 3. The new type of electric cylinder adopts direct drive technology, reducing energy consumption by 30% without a reducer   Equipment application: 1) Assembly, forming and riveting of precision components 2) Stamping blanking of films, metal sheets and plastics   Scope of application Applicable industries: automotive industry, motor industry, electronics industry, new energy industry, etc Technical parameter Item Unit EPC Single column/EPC 4 column Rated output (press-fitting force) T 0.448 1 2 3.5 6.12 9 13 Maximum force (punching force) T 1.2 2 4.5 7 12 18 26 Motor power KW 00.93 1.2 2.3 3.7 6 9 6 Lead screw diameter mm 40 50 80 Equipment speed Maximum fast-forward speed mm/s 1-330 1-250 1-250 1-250 1-200 1-200 1-200 Maximum working speed mm/s 1-165 1-125 1-125 1-125 1-100 1-100 1-100 Control accuracy mm Control accuracy 0.008/ Repeatability accuracy 0.001 Maximum opening height mm 350 400 450 500 The upper slider stroke mm 180 230 285 310 390 425 390 Dimensions of the lower worktable Left and right (inside the column mm 500 500 600 600 Front and back (including columns mm 400 400 500 500 The height of the workbench from the ground mm 750 750 750 750 Optimize the external dimensions mm ～650 ～650 ～750 ～750 Front and rear external dimensions mm ～550 ～550 ～650 ～650

5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry

5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry   Introduction The hot press forming machine adopts a four-column and three-plate open space. The four columns are combined with precision sewn guide sleeves. It is a professional equipment developed for the IMD industry (in-mold decorative inlay injection molding technology) and the forming of film, PET, PVC and other sheet materials. It uses far-infrared radiation to uniformly heat the sheet materials, and then through a constant temperature device, the oil cylinder pressure makes them instantly formed. This machine can be used for both forming and punching by simply changing the mold. Scope of application Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Other industries: computer industry, communication industry, medical devices, cosmetic boxes, decorative boxes, toys, etc Features The maximum speed of this machine can reach 250MM per second, while the impact noise does not exceed 80 decibels, which is equivalent to a normal conversation in an office. The carbon fiber heating tube with rapid heating, small thermal lag and uniform heat generation has a lifespan (continuous point burning) of no less than 6,000 hours. Long-term operation of this machine by staff can enhance blood circulation in the human body, accelerate metabolism and boost immunity. This machine can be used for both forming and punching by simply changing the mold. The heating element of this machine is fully enclosed with heat insulation cotton on all sides. When in standby mode, the external radiation power only accounts for 10% of the heating power. The external radiation power of the conventional IMD hot press forming machine in the market is as high as 50%. In the hot summer, 10 units of 4KW conventional IMD equipment need to be equipped with 10 units of 5P air conditioners. And our hydraulic IMD equipment only requires two units. Application This product is widely used in the following industries: Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP5, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Computer industry: keyboards, mice, face cases; Communication industry: mobile phone keys, mobile phone lenses, mobile phone color shells, PHS and landline phone panels, window lenses; Other industries: medical devices, cosmetic boxes, sports and entertainment products, etc. Technical parameters Model 109S-5T 109S-10T 109S-20T 109S-30T 109S-50T 109S-60T Nominal force (T) 5 10 20 30 50 60 Maximum hydraulic working pressure (MPa) 7 21 21 21 21 21 Back stroke force (mm) 5 3.1 3.1 4 5.1 5.1 Height of table above floor (mm) 780 780 780 780 780 780 Biggest operational height (mm) 300 400 400 400 400 400 Maximum stroke of the ram (mm) 200 300 300 300 300 300 Dimensions of table (mm) Left-right 450 600 600 800 1000 1200 Front-back 350 450 450 600 600 700 Speed of slider (mm/s) Speed of down ≥100 ≥150 ≥150 ≥188 ≥178 ≥178 Working speed ≥100 ≥24 ≥24 ≥19 ≥14 ≥14 Speed of returning ≥100 ≥126 ≥126 ≥125 ≥116 ≥116 Heating effective area Left-right 330 550 550 700 900 1170 Front-back 300 400 400 550 550 650 Heating pipe length Total length 310 360 360 460 460 560 Dimension 700*1100*2040 900*1300*2080 900*1300*2080 1100*1700*2130 1300*1700*2480 1550*1900*2630 Motor + heating = power (KW) 2.2+3=5.2 2.5=2+6=8.2 2.2+6=8.2 2.2+7.5=9.7 3.7+10.5=14.2 3.7+13.5=17.2

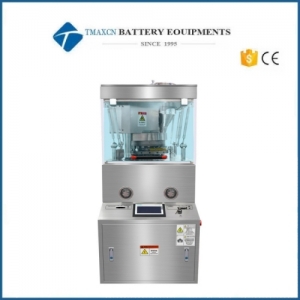

Automatic Rotary Pharmaceutical Tablet Press Machine For Pill Mass Production

Automatic Rotary Pharmaceutical Tablet Press Machine For Pill Mass Production   Introduction  Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements. Technical parameter Model ZP-11D ZP-15D ZP-17D ZP-19D ZP-21D Molding qty 11 15 17 19 21 Digital display adjustment Anti-misoperation digital display adjustment Turntable High hardness, heat resistance, wear resistance and stability Pressure (KN) 100 80 60 60 60 Pressing dia (mm) 40 25 20 13 12 Filling depth (mm) 28 15 15 15 15 Tablet thickness (mm) 10 6 6 6 6 Turntable speed (rpm) 20 30 30 30 30 Production (pcs/h) 13200 27000 30600 34200 37800 Power (KW) 3.0 Power supply 220V/380V
