Three-Roll Hydraulic Plate Rolling Bending Press Machine

Three-Roll Hydraulic Plate Rolling Bending Press Machine   Introduction The plate rolling process of a plate rolling machine is a continuous three-point bending process of the plate. According to the different rolling temperatures, it can be divided into cold rolling, hot rolling and warm rolling. It is mainly a mechanical equipment that bends metal plates of a certain thickness into cylindrical, arc-shaped, rectangular and other curvatures or variable curvatures. It is one of the essential mechanical equipment in the metallurgy, building materials, petroleum, chemical, water conservancy and power, bridge, military industry, coal, mining, shipbuilding, boiler, aviation, power transmission and transformation equipment manufacturing industries. This machine belongs to the hydraulic three-roll plate bending machine, which is used to complete the pre-bending, rolling and straightening of the plate ends of various container carbon steel and low alloy steel plates without turning at room temperature after one feeding. The upper roller can move vertically or horizontally. Pre-bending is achieved by the horizontal movement of the upper roller, causing it to be in an asymmetrical position relative to the lower roller. The rounding process is carried out by the motor and the reducer driving the two lower rollers. Since the elevation of the lower roller remains unchanged, it is convenient for feeding and operation. Provide a detailed electrical schematic diagram. Electrical wiring must be strictly carried out in accordance with the drawing. The numbers at both ends of each connection are clear and complete. The terminal blocks of the wires are marked with the same wire number as the connection number, and corresponding marks are made on the electrical wiring diagram and schematic diagram. All the electrical components used in the equipment are high-quality products from well-known enterprises. Electrical protection devices (such as current relays, air switches, etc.) are strictly tested before installation to ensure reliable operation. The equipment operates smoothly, with flexible control, no jamming, oil leakage or abnormal noise. The tipping frame adopts hydraulic tipping, which is relatively fast. The vertical displacement of the upper roller is driven by hydraulic power, while the horizontal movement is driven by mechanical power. The equipment has high reliability and a low failure rate.   Technical parameter No Item Unit Parameters 1 Maximum thickness of the rolled plate mm T16*B3000*φ900(0s≤245MPa) 2 Maximum pre-bent plate thickness mm T12*B3000*φ900(0s≤245MPa) 3 Maximum width of the rolled plate mm 3000 4 The working length of the roller mm 3050 5 The remaining straight side length mm ≤4 times the thickness of the board 6 Apply pressure to he upper roller T 200 7 Rolling plate speed m/min 4.5 8 Upper roller diameter mm φ330 9 Diameter of the lower roller mm Ф180 10 The center distance between the two lower rollers mm 300 11 The pressure application speed of the upper roller mm/min 120 12 Number of idlers pcs 4 13 Number of idler sets pcs 1 14 Main motor power KW 15 15 Power of hydraulic motor KW 5.5 16 Power of mobile motor KW 1.5 The equipment's capacity for rolling cone cylinders is 60% of its full-load capacity The rounding capacity is 70% of the full-load capacity Oil cooling is an optional accessory

20000pcs/h Automatic Rotary Tablet Powder Press Compressor Machine For Pills Pressing

20000pcs/h Automatic Rotary Tablet Powder Press Compressor Machine For Pills Pressing   Introduction The multi-punch tablet press is a new type of intelligent tablet press developed by our company. It features high pressure, easy operation and maintenance. The multi-punch rotary tablet press is suitable for the pharmaceutical, chemical and food industries. The multi-punch tablet press can press pharmaceutical tablets, tablets and health products. The stainless steel rotary tablet press has stable tablet weight and sensitive adjustment. The medium-sized tablet press equipment has high precision and smooth operation. The mold, hopper, feeding device, tablet discharge port, scraper and other components of the granular tablet press are easy and quick to disassemble, and are easy to clean and maintain. The equipment is well-configured, with excellent performance of the core components, a long service life and few malfunctions.   Application It is applicable to industries such as pharmaceuticals, health products, food, and daily chemicals.   Technical parameter Model ZP-45 Structured and modular design Easy to disassemble, maintain and replace. Output 200000 pcs/h Raw materials suitable for pressing Powder, granules The types of tablets that can be compressed Circular, irregular, two-color and ring-shaped Maximum pressure 100KN The maximum diameter of tablets that can be compressed 13mm, special-shaped piece 16mm Maximum tablet thickness 8mm Comply with GMP requirements Non-toxic, odorless and anti-corrosion handwheel adjustment Accuracy The sensitivity reaches 0.1mm Power supply 380/220V 50Hz Power 5.5KW Weight 1800kg Size 1100*940*1755 mm

100T-400T Automatic Vacuum Fiber Hot Press Laminate Forming Machine

100T-400T Automatic Vacuum Fiber Hot Press Laminate Forming Machine   Introduction The fiber vacuum hot press, also known as the fiber vacuum hot press forming machine, adopts a servo oil circuit system, which is low-noise, energy-saving and environmentally friendly. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within ±3 degrees, ensuring the stability of the hot pressing temperature and significantly improving the product yield. It can be equipped with a mold temperature control machine function. Applicable materials 1. Fiber materials: Forming of decorative parts such as carbon fiber and glass fiber. 2. Composite materials: PC/PMMA/ABS and other composite board film sheet forming. 3. Insulation materials: Molding of insulating and heat-insulating materials such as aerogel, cold gel, silicone, PET, and filter elements. Note: The industry applications of the product are as follows. Features 1. It adopts a servo system, which is low-noise, energy-saving and environmentally friendly. It can reduce electricity consumption by up to 46%, generate less heat and operate at a low oil temperature (within 50 degrees), which can extend the service life of the hydraulic press and reduce production costs. 2. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within ±3°C, ensuring the stability of the hot pressing temperature and significantly improving the product yield. 3. The equipment structure features a four-column and three-plate structure, without oil-free bushings for guidance, to achieve a parallelism of ±0.03mm between the upper and lower heating plates. . 4. The vacuum hood is used for vacuuming, with a vacuum negative pressure value of 0.1kpa. It features automatic vacuuming, automatic pressure holding, automatic pressure replenishment, and automatic vacuum breaking functions. 5. The heating plate is made of high-quality die steel for heat treatment and ground to achieve a flatness of 0.05mm. 6. The oil pump is driven by a servo motor, controlled by PLC, and combined with pressure sensors and displacement sensors for closed-loop control. It can be made into segmented pressure, time and stroke control, and can be divided into three or more segments. This product is widely used in the following industries: 1. Mobile phone industry: Front and back covers for 2.5D/3D/3.5D mobile phones, full-coverage mobile phone cases. 2. Automotive industry: Interior and exterior trims, buttons, instrument panels, touch panels, smart Windows. 3. Panel industry: Decorative panels for tablets, laptops, medical devices, home appliances and kitchen appliances, smart locks, etc. 4. Electronics industry: Drones, VR/AR glasses, smartwatches, wristbands, switches, keyboards. 5. Fiber materials: Decorative parts made of fiber materials such as carbon fiber and glass fiber, like helmets, etc. 6. Insulation materials: aerogel, cold gel, silicone frame, PET, filter element and other insulation and heat insulation materials. 7. Composite materials: PC/PMMA/ABS and other film composite plates Technical parameter Item Unit 100T 200T 300T 300T 400T Master cylinder clamping force T 100 200 300 300 400 Master cylinder stroke mm 300 400 400 400 400 The maximum pressure for the liquid in the main cylinder Mpa 21 21 21 21 21 Return stroke force KN 80 50 80 30 30 The distance between the movable beam and the workbench Max. mm 500 600 450 400 400 Min. mm 200 200 50 0 0 Slider speed Rapid decline mm/s 130 150 120 120 250 Working speed mm/s 20 20 20 20 20 Fast return journey mm/s 150 125 100 120 120 Effective area of the heating plate mm 500*580 1200*1200 600*600 600*600 750*750 The height of the workbench from the ground mm 1075 1387 1315 1315 1114 Motor power KW 16 25 25 16*2 30 Maximum temperature ºC 200 200 200 300 300 Machine weight KG 4000 5000 7000 15000 18000

150T Automatic Vacuum Hot Press For Aerogel Insulation Pad Laminating

150T Automatic Vacuum Hot Press For Aerogel Insulation Pad Laminating  Introduction The vacuum hot press for aerogel insulation pads is driven by a precision servo motor and equipped with a PLC microcomputer touch control operating system. It performs vacuum hot pressing on the insulation pads and cools and maintains pressure at the cold pressing station to form them, ensuring comprehensive bonding of the insulation sheets without bubbles or wrinkles. An additional fully automatic heat insulation pad production line is available for selection, integrating functions such as trimming, vulcanization, edge trimming, double-sided gluing, drying, cotton loading, fine cutting, and packaging. The daily production capacity of the production line can reach up to 20,000 pieces. Applicable materials Thermal insulation materials: The pressing molding process of materials such as aerogel, cold gel, silicone, PET, CCS, and filter elements, mainly used for the hot pressing molding of thermal insulation pads for new energy vehicles and power battery cells. Features 1. It adopts a servo oil circuit system with three piston cylinders, featuring low noise, high efficiency and energy saving, and a high yield rate. 2. Electric heating is adopted, ensuring uniform and stable temperature with an error within ±5 degrees, which significantly enhances the yield of the products. 3. The vacuum adopts an oil vacuum pump, which features fast pumping speed and long service life. Vacuum pump 0.75Kw. 4. The heating plate is made of manganese steel, heat-treated and chrome-plated, which is durable and will not deform. 5. PLC microcomputer touch screen control, digital pressure control, adjustable and controllable temperature and speed, independent control of heating up and down. 6. The quality is easy to control, stable, with little product deformation and less glue overflow. 7. Simple operation and practical. Low cost, low energy consumption, space-saving and easy to maintain. 8. Heating method and temperature difference of the working surface of the hot plate (temperature sensing line) : Electric heating tube heating (±5ºC). 9. Parallelism of adjacent hot plates after pressurization (pressure-sensitive paper) : The colored area of the pressure-sensitive paper ≥80%. This product is widely used in the following industries: 1. Mobile phone industry: Front and back covers for 2.5D/3D/3.5D mobile phones, full-coverage mobile phone cases. 2. Automotive industry: Interior and exterior trims, buttons, instrument panels, touch panels, smart Windows. 3. Panel industry: Decorative panels for tablets, laptops, medical devices, home appliances and kitchen appliances, smart locks, etc. 4. Electronics industry: Drones, VR/AR glasses, smartwatches, wristbands, switches, keyboards. 5. Fiber materials: Decorative parts made of fiber materials such as carbon fiber and glass fiber. 6. Insulation materials: Aerogel, cold gel, silicone, PET, CCS, filter elements and other insulation and heat insulation materials. 7. Composite materials: PC/PMMA/ABS and other film composite plates. Technical parameters Model 109G-150T (Top-mounted type) 109G-150T (Downward press type) Nominal maximum pressure of oil (T) 150 150 Workplate size (mm) 570*1350 570*1350 Maximum usable area (mm) 500*1200 500*1200 Hydraulic cylinder Φ220mm*3pcs Φ220mm*3pcs Maximum stroke (mm) 250 250 Working height (mm) 1052 1052 Heating method Electric heating(dia14mm Bullet-type electric heating tube) Electric heating(dia14mm Bullet-type electric heating tube) Number of heating rods 32 pcs Temperature control 8 sets of temperature control (4 sets each for the upper and lower heating plates) 8 sets of temperature control (4 sets each for the upper and lower heating plates) Heating temperature RT-150ºC RT-150ºC Temperature uniformity PV±5ºC PV±5ºC Total heating power (KW) 9.6 9.6 Cylinder speed (mm/s) up ≤85 ≤120 back ≤110 ≤160 Working power supply voltage AC380V50HZ, three-phase five-wire AC380V50HZ, three-phase five-wire Working power consumption (KW) 20 20 Host dimensions (mm) 2285*1767*2113 2285*1767*2113 Total weight of the equipment About 7.5T About 7.5T

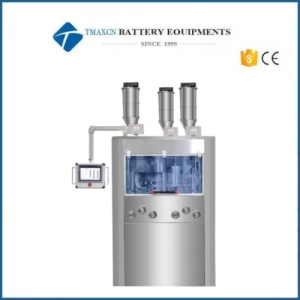

87000pcs/h Automatic 3 Color Pharmaceutical Drug Rotary Tablet Compression Press Machine

87000pcs/h Automatic 3 Color Pharmaceutical Drug Rotary Tablet Compression Press Machine   Introduction ZP-27/73D is a sixth-generation automatic rotary tablet press that continuously presses powders and granules into three-color tablets. It is specially designed for the production of three-color tablets. It has high pressure and is suitable for materials that are difficult to press and corrosive materials. It meets cGMP standards.   Main Features Meet cGMP requirements. The entire shell is made of stainless steel, and the tablet pressing chamber is isolated from the external environment by organic glass, with good sealing performance. All parts of the tablet pressing chamber that come into contact with the drug meet the requirements of "non-toxic, odorless, and anti-corrosion". This series of tablet presses is equipped with a pressure overload protection device. Once overloaded, it will automatically shut down to avoid equipment damage. The transmission system is independently modularized and set below the main body of the machine, effectively preventing trace debris generated by the friction of the machine from contaminating the drug. Digital display adjustment: filling depth and pressure adjustment are digitalized, and the adjustment is more precise and convenient.   Technical parameters Model ZP-27D ZP-45D ZP-73D Dies No. 25 45 73 Max. Capacity (pcs/h) 87480 202500 395000 Max. Pressure (KN) 150 80 60 Max. Dia. Of tablet (mm) 50 20 11 Max. Depth of filling (mm) 18 18 15 Max. Thickness of tablet (mm) 8 6 6

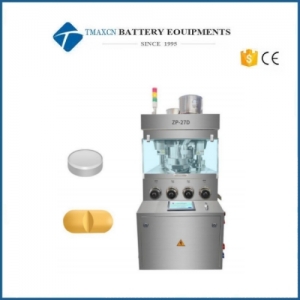

Medium Speed Type Automatic Continuous Tablet Powder Press Machine With 90000pcs/H Production

Medium Speed Type Automatic Continuous Tablet Powder Press Machine With 90000pcs/H Production   Introduction ZP-27D is the Fourth Generation automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. maximum press diameter 25mm, maximum capacity 90,000pcs/h, maximum depth of filling 35mm, it is suitable for pressing that material that is difficult formed into tablet, meet the requirements of cGMP production.   Main Features High efficiency and high cost performance. This machine adopts double pressure, with 27 sets of molds, maximum press diameter is 25mm,maximum pressure is 120kn,maximum capacity is 90,000 pcs/h,maximum depth filling is 35mm. It meets the requirements of cGMP.The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular castiron and strictly implemented for 12 months,which is hard, wearable, non-toxic and smooth,which fullymeets the requirements of cGMP. The design adds an overall Parallel movement system for the punches, which moves the position of the upper and lower main pressing wheels at an equal distance as a whole to realize the movement of the tablet forming position and extend the service life of the machine and punches.   Technical parameters Model ZP-27D Dies No. 27 Max. Capacity (pcs/h) 90000 Max. Pressure (KN) 120 Max. Dia. Of tablet (mm) 25 Max. Depth of filling (mm) 35 Max. Thickness of tablet (mm) 17

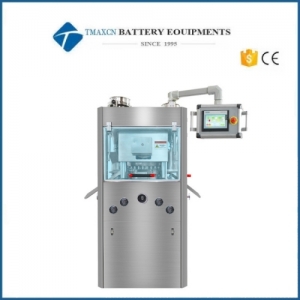

165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine

165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine   Introduction ZP-26/40D is a seventh-generation fully automatic high-speed tablet press that continuously presses powders and granules into round tablets, special-shaped tablets, two-color tablets, and ring tablets. It is an industrial 4.0 version of the intelligent tablet press that integrates automatic adjustment of powder filling volume, real-time pressure monitoring, recycling of excess powder, and rejection of single tablets, and meets cGMP production requirements.   Main Features Automatic tablet weight adjustment system. The servo motor controls the filling track without handwheel adjustment. The system can automatically increase or decrease the filling amount according to the set value, and the average tablet weight accuracy is <±2%. The real-time online detection and rejection system to automatically identify and promptly reject products with unqualified tablet weight, which can achieve continuous rejection and accurate single-piece rejection. The machine has extremely high processing accuracy, fast running speed and low noise. The turntable runout is <0.04mm, the upper and lower mold hole diameter tolerance is<0.013mm, the surface roughness is <0.8um, the middle mold hole diameter tolerance is <0.017mm, and the production qualified product rate is 10o%. Material loss is <1%. Technical parameters Model 26D 32D 40D Molding qty 26 32 40 Production (pcs/h) 165000 210000 260000 Pressing diameter (mm) 25 16 13 Pallet thickness (mm) 10 9 9 Pre-pressing pressure (KN) 20 20 20 Main pressing pressure (KN) 100 80 80

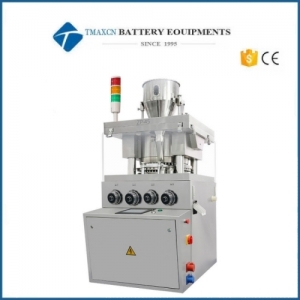

200000pcs/H High Production Automatic Multi-Punch Rotary Tablet Press Machine

200000pcs/H High Production Automatic Multi-Punch Rotary Tablet Press Machine   Introduction The multi-punch tablet press is a new type of intelligent tablet press developed by our company. It features high pressure, easy operation and maintenance. The multi-punch rotary tablet press is suitable for the pharmaceutical, chemical and food industries. The multi-punch tablet press can press pharmaceutical tablets, tablets and health products. The stainless steel rotary tablet press has stable tablet weight and sensitive adjustment. The medium-sized tablet press equipment has high precision and smooth operation. The mold, hopper, feeding device, tablet discharge port, scraper and other components of the granular tablet press are easy and quick to disassemble, and are easy to clean and maintain. The equipment is well-configured, with excellent performance of the core components, a long service life and few malfunctions.   Application It is applicable to industries such as pharmaceuticals, health products, food, and daily chemicals.   Technical parameter Model ZP-45 Structured and modular design Easy to disassemble, maintain and replace. Output 200000 pcs/h Raw materials suitable for pressing Powder, granules The types of tablets that can be compressed Circular, irregular, two-color and ring-shaped Maximum pressure 100KN The maximum diameter of tablets that can be compressed 13mm, special-shaped piece 16mm Maximum tablet thickness 8mm Comply with GMP requirements Non-toxic, odorless and anti-corrosion handwheel adjustment Accuracy The sensitivity reaches 0.1mm Power supply 380/220V 50Hz Power 5.5KW Weight 1800kg Size 1100*940*1755 mm

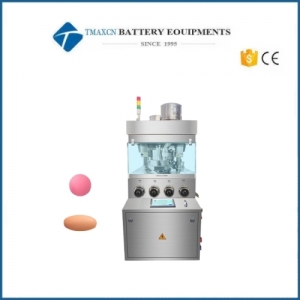

130000pcs/H Automatic Rotary Tablet Press Machine

130000pcs/H Automatic Rotary Tablet Press Machine   Introduction Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements.   Technical parameter Model ZP-35 Tablet pressing pressure, pre-pressing 80KN Tablet diameter 16mm Compressible tablets Circular, irregular, two-color, ring-shaped Compressible materials Powder or granules Filling depth 20mm Max. tablet thickness 6mm Production capacity 130000 pcs/h Motor power 4KW Voltage 380V/220V/50Hz Size (mm) 1040*910*1690 Weight 1400kg
