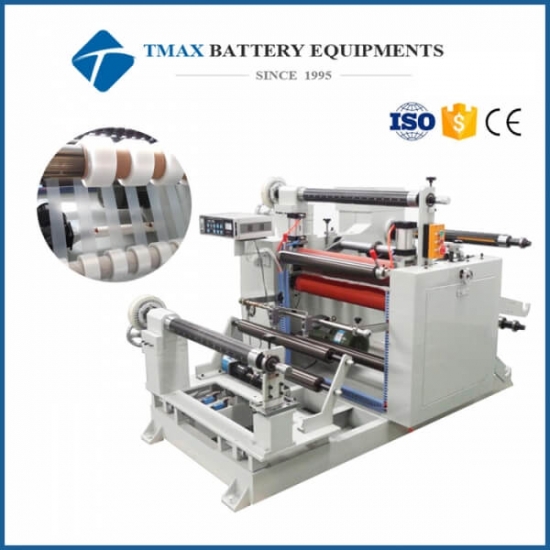

Roll to Roll Battery Electrode Automatic Slitting Machine for Lithium Battery

Roll to Roll Battery Electrode Automatic Slitting Machine for Lithium Battery

1. Applicable Industries and Products

This machine is used for the slitting and processing of lithium-ion battery electrode.

2. Equipment Functions

Applicable for slitting materials such as copper foil, aluminum foil, OPP, PE, PP, PVC, release paper, and release film.

Workflow:
Roll-fed material → Automatic unwinding → Web guiding → Slitting → Rewinding

3. Equipment Features

This machine is a high-precision, high-sensitivity slitting device. Both its unwinding and rewinding mechanisms employ high-precision air shafts, while tension adjustment is freely achievable via a magnetic powder clutch. Web guiding is regulated by an automatic ultrasonic system featuring dual-motor control.

The machine comes with the following capabilities:

- Automatic detection

- Automatic web guiding

- Automatic length counting

- Material anti-scratch protection

- Auto-stop at preset lengths

- Fault alarm functionality

Key Benefits:
Fast slitting speed, high precision, easy operation.

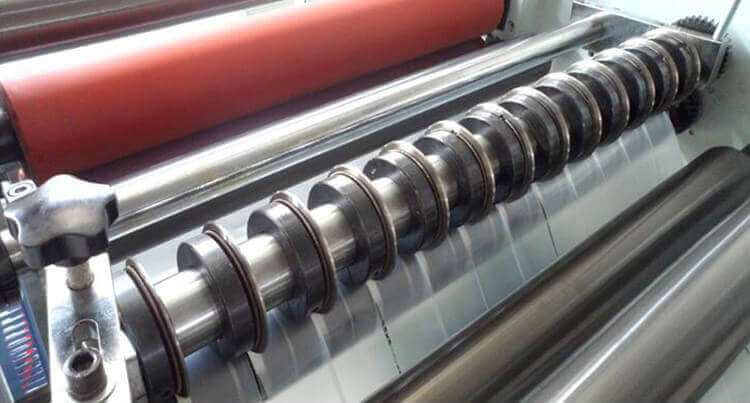

Equipped with: 5 air knives

4. Technical Specifications

5. Main Components

Accessories Included
