Vacuum Ball Mill Jar

Stainless Steel Vacuum Ball Mill Jar for Planetary Ball Mill Machine

  • Model Number:

    TMAX-SSVjar
  • Dimension(L*W*H):

    50*50*60 (mm)
  • Net Weight:

    35KG
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Stainless Steel Vacuum Ball Mill Jar for Planetary Ball Mill Machine

Product introduction

The vacuum stainless steel grinding jar is specially designed for materials that are prone to oxidation during the grinding process. Through the unique sealing design of the grinding jar, it can be evacuated and then inert gas can be introduced to separate the material from oxygen, water or other substances in the air that may affect the grinding process, thereby avoiding oxidation and reducing the contact between the material and other substances that may affect the grinding effect.

Product features

1. Special valve design, easy to operate, strong sealing performance

2. Made of stainless steel, and can also be lined with other materials such as nylon, polyurethane, corundum, etc., with strong versatility

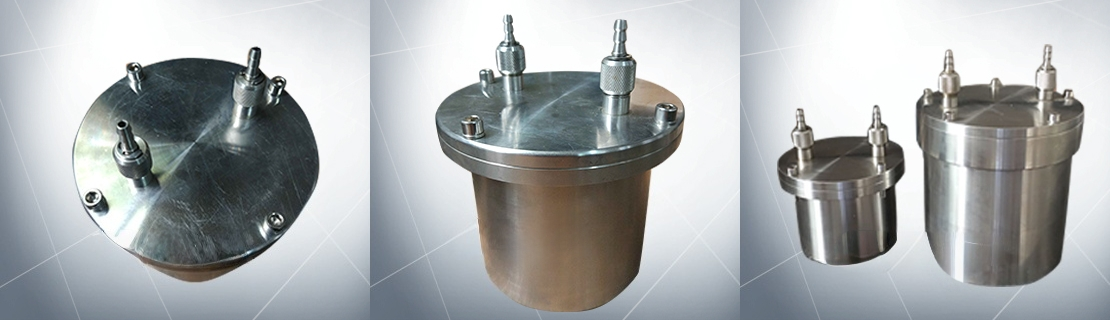

Product picture

Vacuum Ball Mill Jar

Product Parameter

Parameters of Stainless Steel Vacuum Mill Jar for Planetary Ball Mill

Volume of Jar

Inner Diameter
(mm)

External Diameter
(mm)

Inner Depth (mm)

Height of Not Containing Cover
(mm)

Total Height
(mm)

Weight (KG)

50ml

39

49

45

50

58

0.7

100ml

48

62

57

65

72

1.3

250ml

73

88

65

73

80

2.1

500ml

90

107

93

100

107

3.5

1L

115

132

118

128

135

5.4

1.5L

115

131

143

150

158

5.8

2L

141

153

133

140

149

6.3

3L

141

157

198

205

213

9.2

4L

168

178

200

205

213

9.2

5L

182

192

200

205

213

10.2

Remarks:1. Size deviation within ±22. Weight deviation within ±0.2KG
