Split Test Cell

Steel Split Test Cell for Lithium Air Battery Research

  • Model Number:

    EQ-STC-LI-AIR
  • Net Weight:

    5 Kg (65 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10 day
  • contact now
Product Details

Steel Split Test Cell for Lithium Air Battery Research EQ-STC-LI-AIR

1. The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research.
2. You can control air flow pressure and test various anode and cathode material at easy.


SPECIFICATIONS:

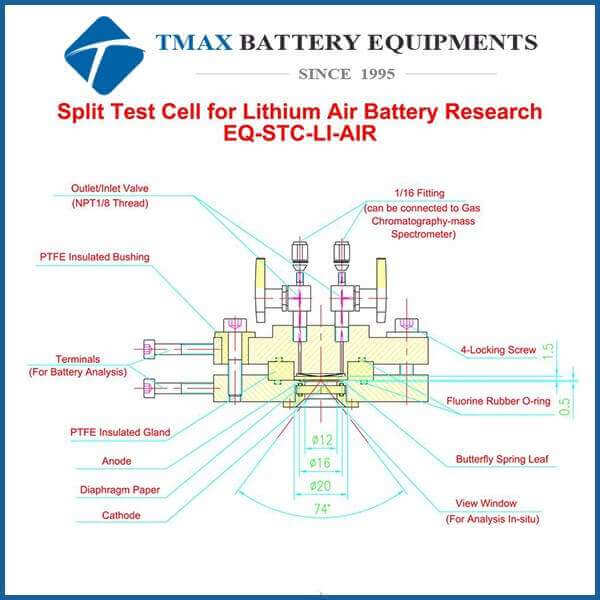

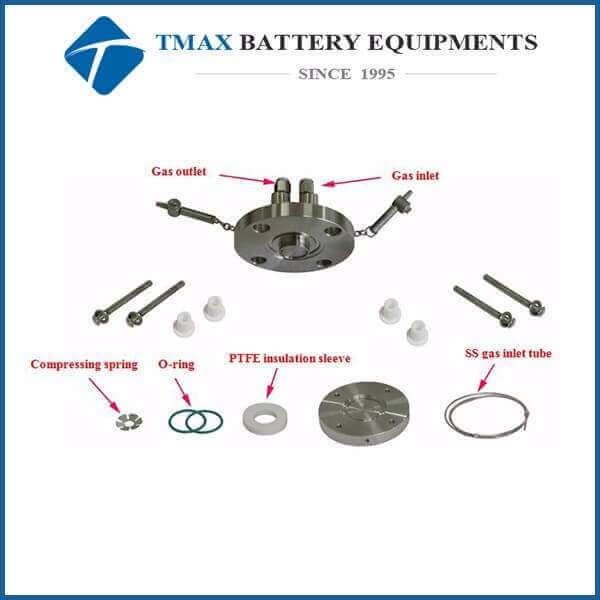

Structure

1.     Stainless Steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection

2.     Two electrodes design

3.     Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings

4.     Compact design fits in any benchtop glove boxes

5.     Grooved area on lower split to fixed position of the anode electrode

Cell Thickness

1~3mm (cathode+separator+anode)

Bottom Recesss Area

16mm Dia. (The recess area can accommodate the electrodes with size upto 16mm dia.)

Max. Working Temperature

200°C

Valves & Fittings

Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet

Warranty

One Year limited manufacture warranty with lifetime support

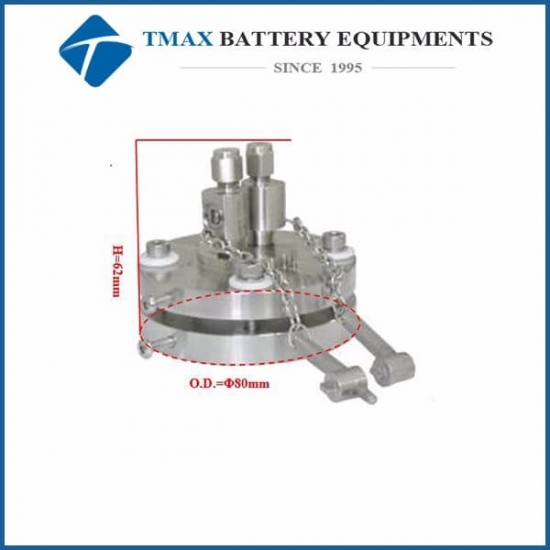

Dimensions

   Φ80×62mm

Optional

Anti-crossive Au coating on the cell internal and inserts is an option.

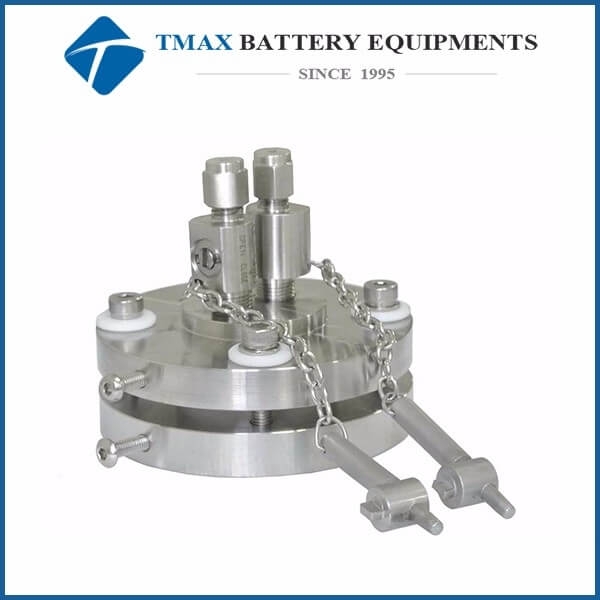

Detailed Images

                  Split Test Cell



                  Split Test Cell



                  Split Test Cell



                  Split Test Cell

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Split Test Cell

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
