Vacuum Sealing Machine

Three-station Two Chamber Final Sealing & Edge Trimming Machine

  • Model Number:

    TMAX-EFQB-200
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

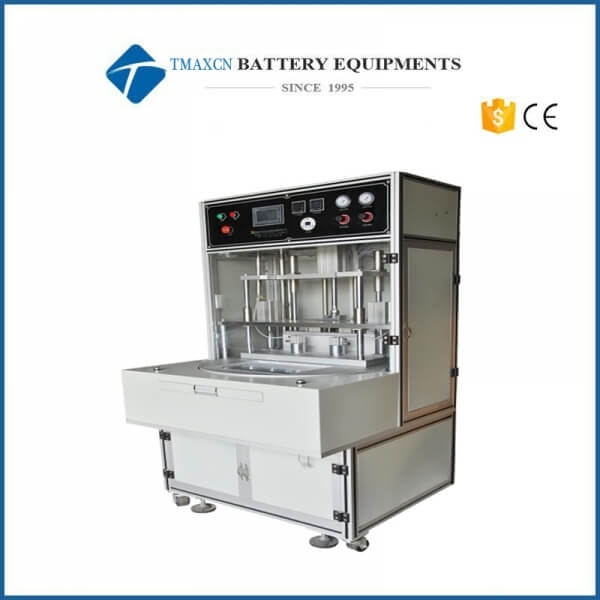

Three-station Two Chamber Final Sealing & Edge Trimming Machine

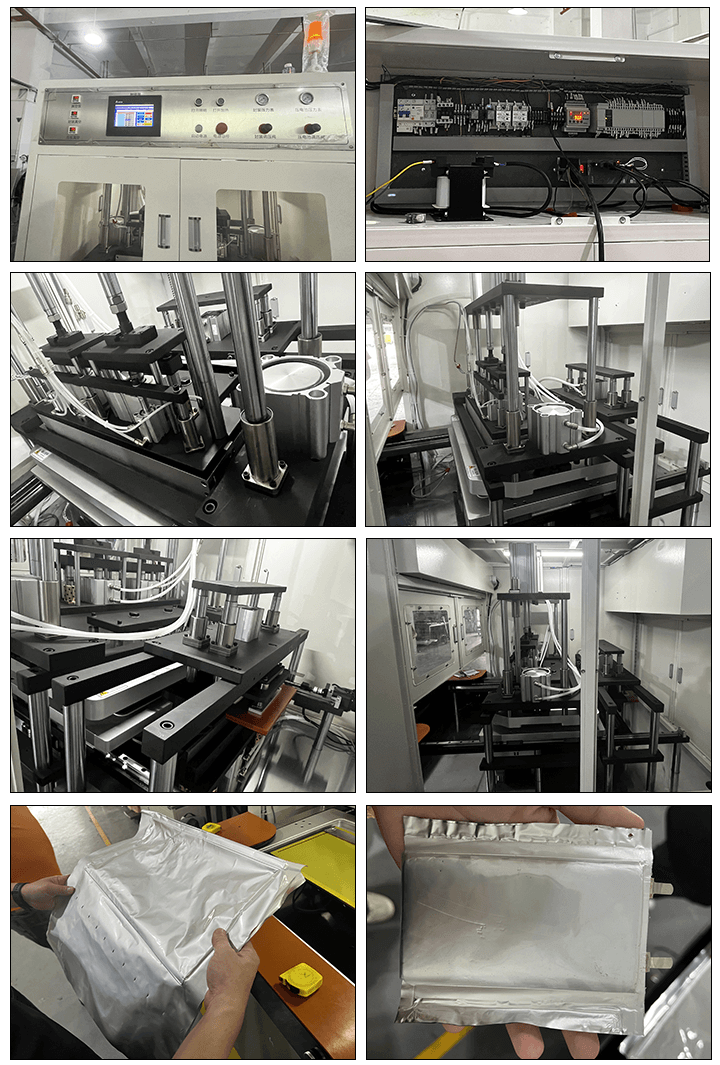

This machine is suitable for the final vacuum sealing of lithium pouch cells and the removal of airbag edges. Manually place the battery cell on the turntable feeding mechanism. The battery rush direction is downward. Rotate the feed through the turntable. (The turntable puts 3 positions and rotates 120 degrees each time.) The feed turntable rotates into position and starts edge sealing. Enter the trimming station at 120 degrees to trim the edges. After trimming, rotate 120 degrees to return to the loading position, manually remove the material, and repeat the above operation.

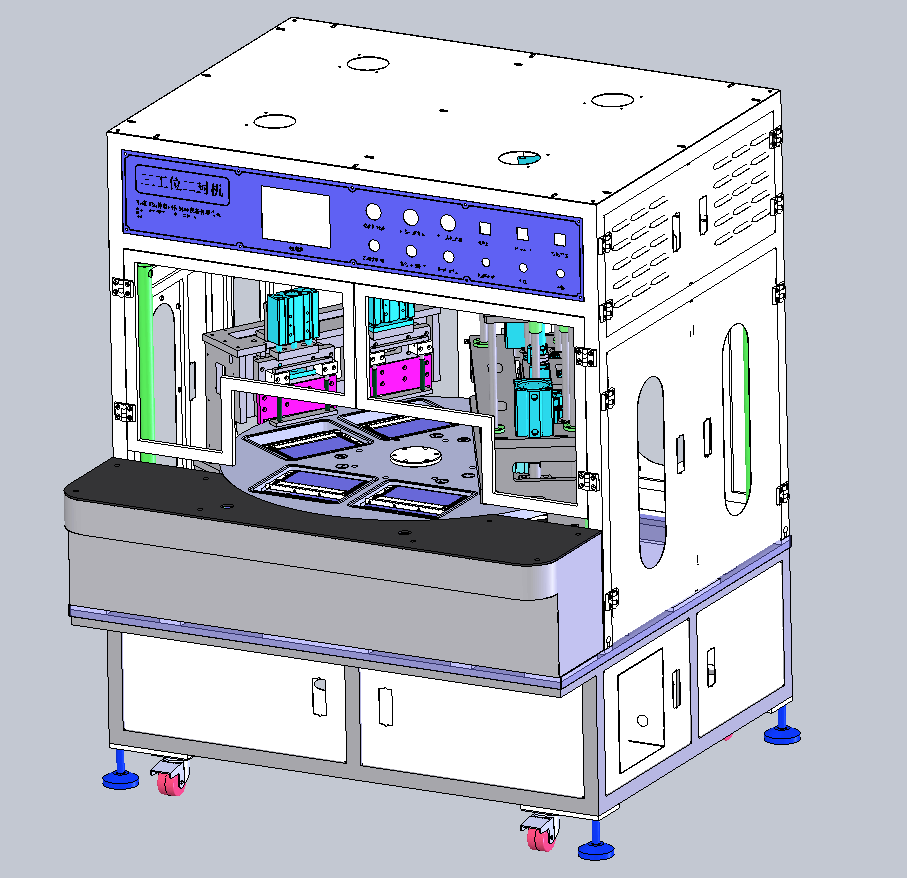

Equipment structure

1. Adopting rotary turntable feeding structure, precision of turntable divider: ± 0.1mm

2. Machine package alignment accuracy: ± 0.1mm, head parallelism: ± 0.01mm

3. Sealing time adjustment range: 1s-30s, adjustment accuracy: ± 0.1mm

4. Heat sealing time and vacuum time are set on the touch screen: the packaging pressure is adjusted on the operation panel,

5. The temperature accuracy is controlled within the range of ± 2°C and controlled by the PLC program. If the temperature is too high or too low, the alarm will stop automatically

6. The package adopts double head and double cavity structure;

7. The heating tube uses 700 watts; the working temperature range of the head is RT~300 ℃;

8. The diameter of the upper head cylinder is 63mm, and the diameter of the bayonet cylinder is 25mm;

9. The doors and windows are made of sheet metal baking paint, and the exhaust fan is installed on the top;

10. The cutting airbag adopts a double edge cutter structure, each pair of edge cutters independently cut edges;

11. The cutting edge is made of wear-resistant and corrosion-resistant tool steel, and the life of the cutter is> 600,000 times;


Specifications

Power supply

AC220V / 50Hz; Power: 4.5KW

Compressed air

0.4 ~ 0.6Mpa 20L / Min

Applicable length

200mm

Applicable width

120mm

Airbag width

70mm

Double cavity double cutter

Yes

Piercing function

Yes

Flat pressing and shaping function

Yes

Effective length of cutter

200mm

Cutter width

4.5mm

Number of batteries that can be placed

10 (dual cavity)

Production capacity

60 ~ 80PPM

Equipment weight

about 500Kg

Vacuum source

≤–95Kpa

Dimensions

1390 * 1240 * 1700mm (LxWxH)
