Turntable type vacuum sealing machine for lithium ion pouch battery

  • Model Number:

    TMAX-sealingmachine1
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

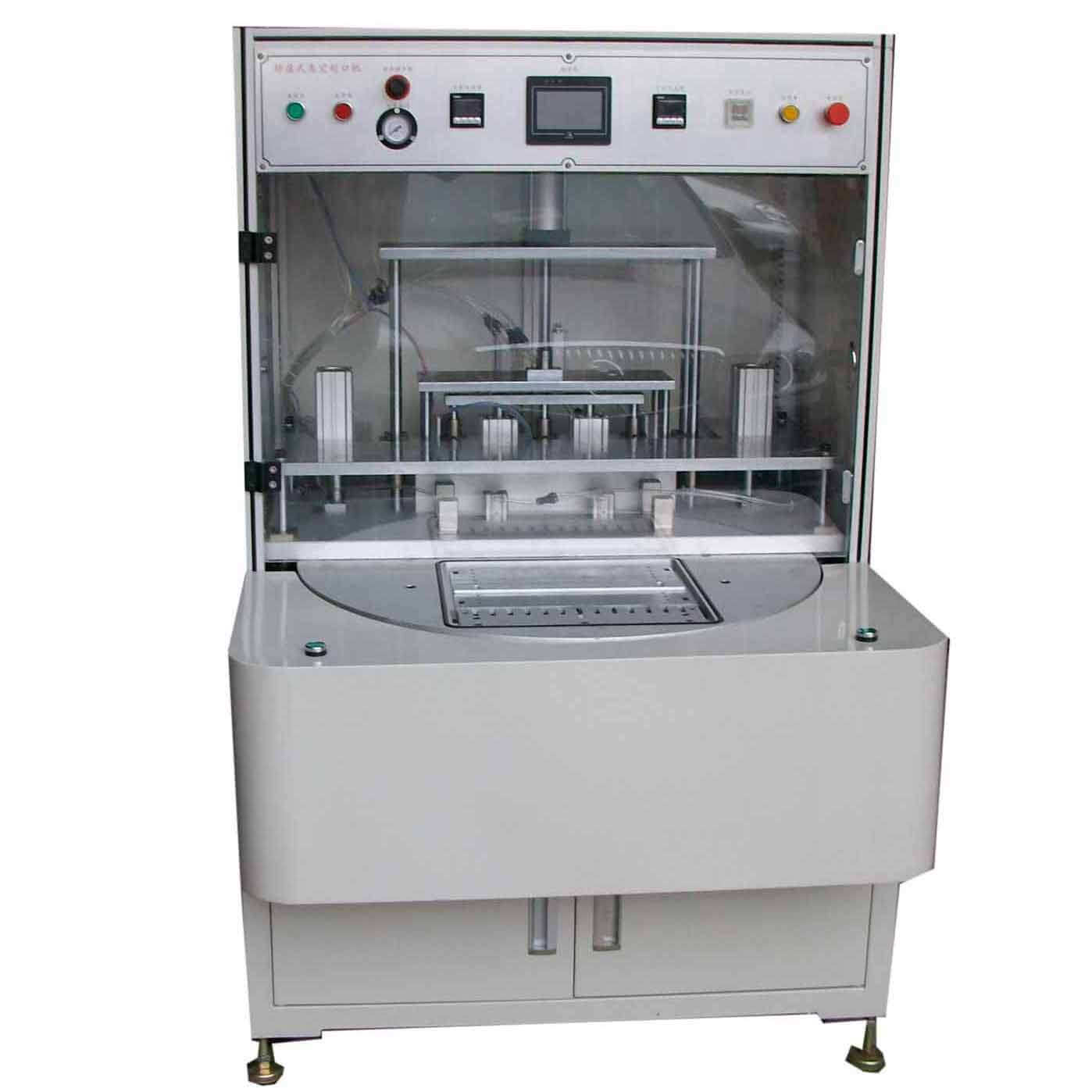

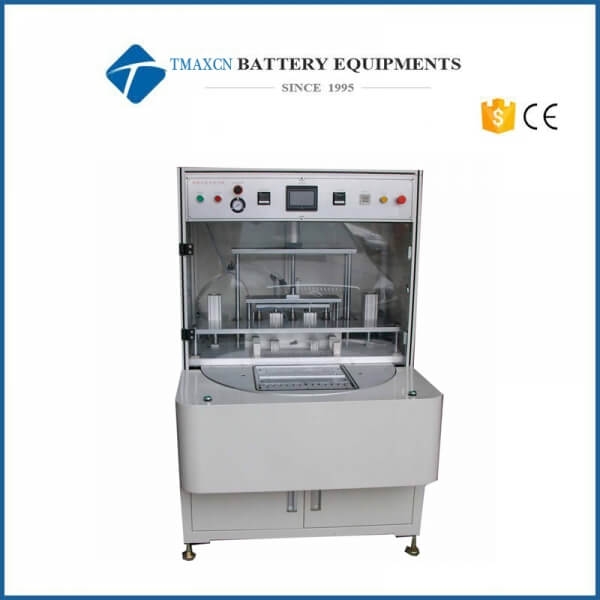

Turntable type vacuum sealing machine for lithium ion pouch battery

1.Suitable for soft packing lithium core top-side heating vacuum sealing

2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30

3.To configure a single head pressure regulator

4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C

5.Fixture locating detection, double-side heating, temperature alarm, screen protection

6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation


Technical Parameters

Main technical

parameters

TMAX-TS001

       TMAX-TS002

TMAX-TS003

Applicable battery size(L*W*H)

≤180*120*8mm

≤250*210*10mm

≤320*210*10mm

Sealing head length

200mm

280mm

330mm

Sealing stamp width

2-5mm

2-10mm

2-10mm

Parallelism of the  sealing head

±0.01mm

±0.01mm

±0.01mm

Production capacity

200-600pcs/H

150-500pcs/H

100-450pcs/H

Source voltage

AC 220V

AC 220V

AC 220V

power

1.2KW

1.8KW

1.8KW

Size(L*W*H)

640*640*1450mm

900*800*1600mm

900*1000*1600mm

Weight

300kg

 450kg

550kg

Air supply

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

Vacuum supply

 -0.095Mpa 20L/S

-0.095Mpa 20L/S

-0.095Mpa 20L/S

hot vacuum sealing machine






1.  We supply machines with battery technology support.

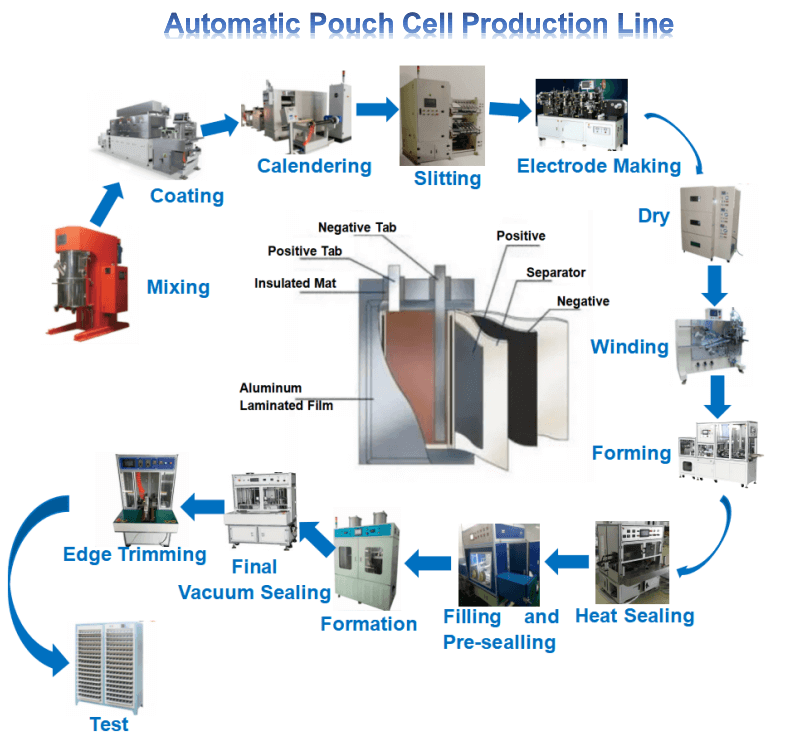

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
