Slliding Furnace

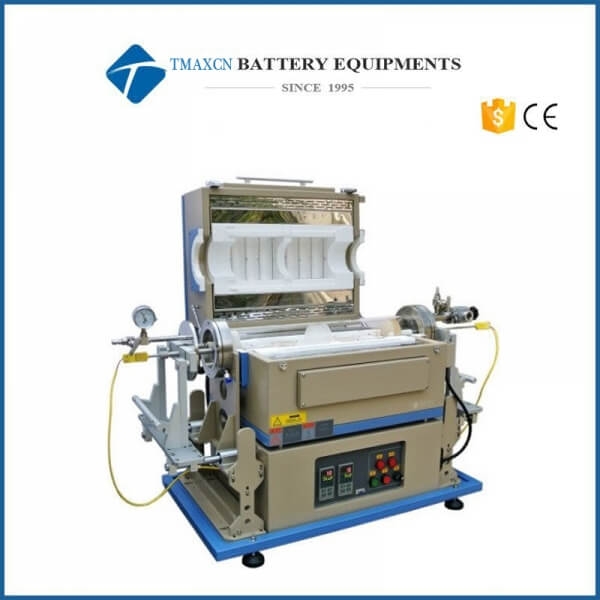

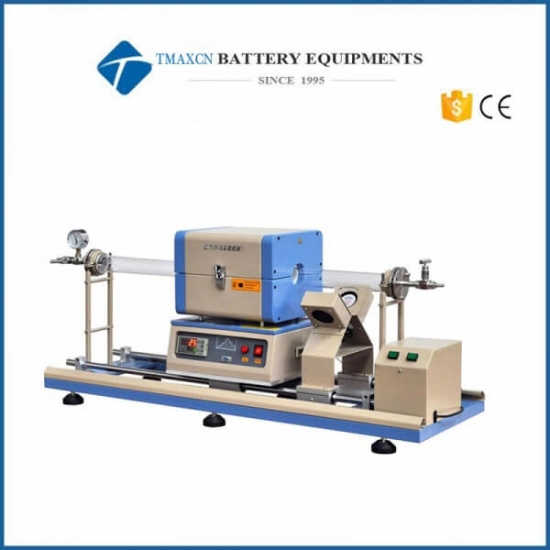

Two Zone IR Heated RTP Tube Furnace (4'' ID ) with Slide-able Sample Holder under Vacuum

  • Model Number:

    TMAX-1200X-IR-IISL
  • Dimension(L*W*H):

    Size can be customized
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

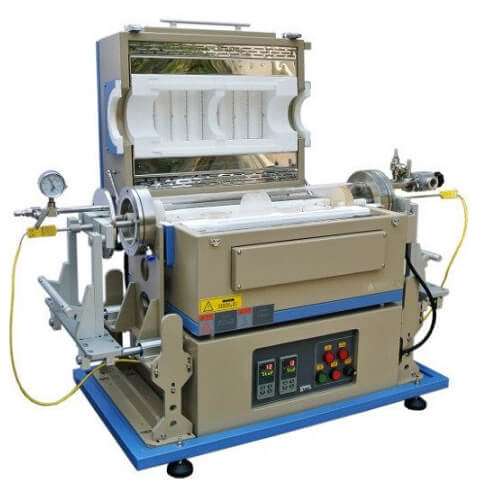

Two Zone IR Heated RTP Tube Furnace (4'' ID ) with Slide-able Sample Holder under Vacuum


TMAX-1200X-IR-IISL is dual zone IR heated RTP tube furnace with  4" ID quartz tube and slidable sample holder which is inside retractable bellows vacuum bellows.  It is capable of achieving a max. heating rate > 50°C/s  and a cooling rate  > 10°C/s. The furnace is designed for growing two dimension materials via HPCVD, where one heating zone is used as solid evaporating source and another zone for sample deposition.

.

SPECIFICATIONS

Furnace Features


  • Double layer steel casing with air cooling keeps furnace surface temperature lower than 60°C.
  • Heated by shortwave IR tube lamps for fasting heating
  • Two heating zones, 195 mm each, total 390 mm in length for HPCVD
  • Sample holder is slidable in inside retractable bellows, which can achieve fast heating or cooling under vacuum or controlled atmosphere
  • Vacuum flanges and the digital vacuum gauge are installed  for immediate use.

Voltage

  • AC 208-240V, three phase, 50/60 Hz
  • 24 Kw

Heating Element

  • 16 pcs 1.5 Kw Halogen light tube,  ( Dia. =10mm,  L=390mm )
  • Standard working life: 2000 hrs.  ( depends on heating rate )
  • The Halogen light tube is consumable.  Please click picture left to order spare.

Max. Temperature

  • 1100°C (<  30 minutes )
  • 1000°C ( continuous   )

Temperature Accuracy

  • +/ - 1°C

Max. Heating Rate

  • 50  ºC/s

Max. Cooling Rate

  • 10 °C/sec Max.  Cooling Rate from 1000~200C:

Process Tube Size

  • High purity fused quartz tube
  • Φ110OD×Φ106ID×740L, mm

Sliding Rails

  • Dual sliding rails made of Cr plated steel
  • Sliding rail length: 400 mm

Thermocouple

  • Two K type, 1/4" Dia x 24" length



Temperature Controller



  • Two temperature controller included to control two zone independently via SCR
  • PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
  • Built-in overheating & thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port.
  • PC Control:
    • An MTS-02 control module is included for PC control on this furnace.
    • The new version of PC module is now compatible with Lab View 05/08/2014
    • A laptop PC can be ordered for $500 together with the furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping.

Vacuum Flanges

  • Stainless steel quick vacuum flanges are installed on both ends of the tube for easy assembling
  • 1/4"diameter feedthrough on left flange  for inserting  K-type thermal couple
  • Digital vacuum gauge is included
  • KF25 right angle valve is installed for connecting to a vacuum pump
  • Needle valve for vacuum release is included
  • One  retractable bellows is installed on left flange, which allows sample hold sliding to cold under controlled vacuum or atmosphere

Vacuum Level

  •  Limited by vacuum pump
    • 10^-2 torr can be achieved by mechanical pump
    • 10^-4 torr can be reached by molecular pump
  • The pump is not included .

  •

Water Cooling  (optional)

  • Cooling water is required.
  • Please make sure the flow rate of cooling water is ≥ 10L/min, water temp. < 25ºC; pressure > 25 PSI.
  • We suggest using the EQ-KJ5000 Series recirculating water chiller as a cooling system (please order separately at related products below) to save water.
  • Warning: This RTP furnace's max dwelling time shall be less than 600 seconds at 1000ºC ~ 1100ºC with tap water, otherwise, O-ring may melt.

Dimensions

  • 1000mm×540mm×800mm

Net Weight

~180 Kg

Shipping Weight

500 lbs

Warranty

Two years limited manufacturer's warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order replacements at related products below).

Laptop, software & WiFi Control(Optional)

  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note:
    The software is only compatible with MTI’s Yudian Temperature Controller

Compliance

  • CE Certified
  • All electric components ( >24V) are UL / MET / CSA certified

  • The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.

Application Notes



  • Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.12 MPa (absolute pressure).
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.  The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube
  • Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
  • Click here to learn How to set up quartz/ ceramic tube and vacuum flange for MTI Tube furnace.
  • Quartz tubes should be replaced after every 10th use to ensure the best performance.
  • Samples should never be placed on the tube directly;
  • After CVD, the graphene must be transferred from the metal catalyst to another substrate for most applications. By using the graphene transfer tape, the residue can be low.
