UV Test Chamber

Ultraviolet Light Tester Climatic UV Aging Test Chamber

  • Model Number:

    TMAX-UVC

  • Compliance:

    CE Certified

  • Warranty:

    One year limited with lifetime support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

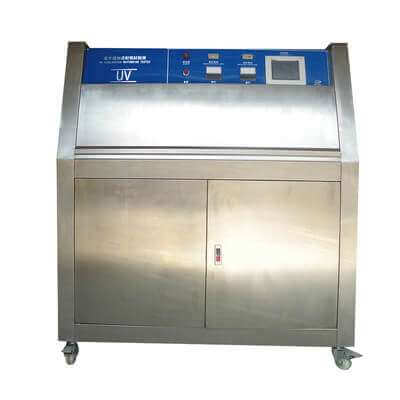

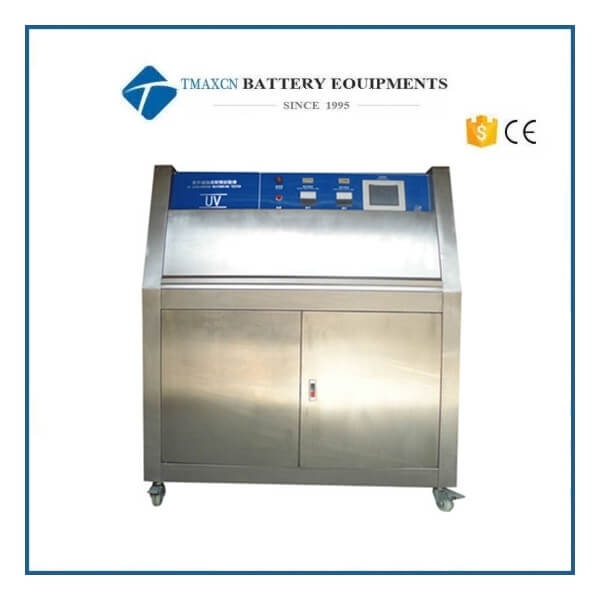

Ultraviolet Light Tester Climatic UV Aging Test Chamber


This series of UV climate resistant test chamber adopts the fluorescent UV lamp that best analogizes the UV spectrum in sunlight, and combines with temperature control and humidity supply devices to analogize the high temperature, high humidity, condensation, dark rain cycle and other factors of sunlight (UV section) that cause color change, brightness, strength reduction, cracking, peeling, pulverization, oxidation and other damage to materials, and at the same time, through the cooperation between UV and humidity With the same action, the single light resistance or single moisture resistance of the material is weakened or invalid, so it is widely used to evaluate the climate resistance of the material. The equipment has the characteristics of providing the best UV simulation of sunlight, low cost of use and maintenance, easy to use, automatic operation of the equipment with control, high automation of the test cycle, good light stability, high reproducibility of the test results.


Specifications

Temperature range

RT+10℃~70℃

Humidity range

≥90%RH

Temperature display

0.1℃

Temperature fluctuation

±1.0℃

Center distance in the lamp

70mm

Test object and lamp about

50±3mm

Irradiance

1.0W/m2 adjustable

Lighting, condensation, spray

Adjustable test cycle

Lamp tube

L=1200/40W，8pcs（UVA/UVB service life over 1600h）

Standard specimen size

75×290mm

Effective irradiation area

900×210mm

UV wavelength

UVA: 315-400nm;UVB: 280-315nm

Irradiation blackboard temperature

50℃~70℃

Standard sample rack

24

Test space

450×1170×500mm

Boundary dimension

550×1300×1480mm

Unit material

SS304

Shelf

Aluminum alloy frame base plate

Controller

TEMI touch screen PLC

Irradiation lamp

UVA-340, 8pcs, 4pcs on each side, 2 sides in total

Running time

0~999 hours 59min

It has the function of power-off program memory, and continues after power restoration

Temperature control

PID self-tuning SSR control

Temperature measuring device

Imported PT100 platinum resistance temperature and humidity sensor

Irradiation blackboard temperature

50℃~70℃

Protection

1. Earth protection

2. Overload and short circuit fuse of control circuit

3. Overtemperature protection

4. Power overload short circuit breaker

5. Water shortage protection
