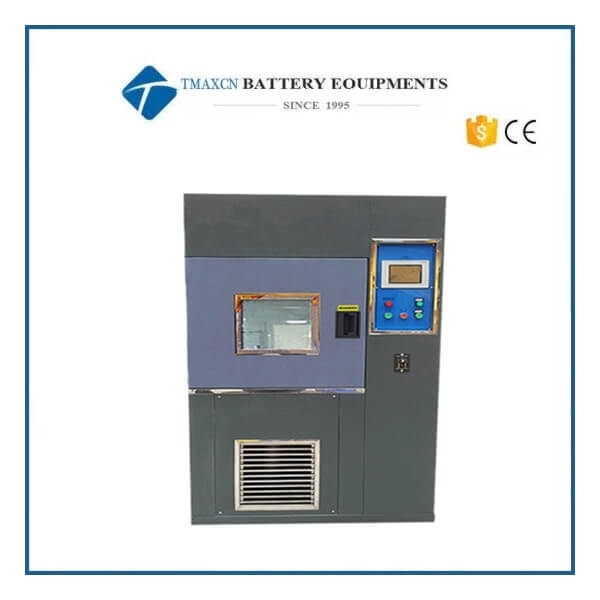

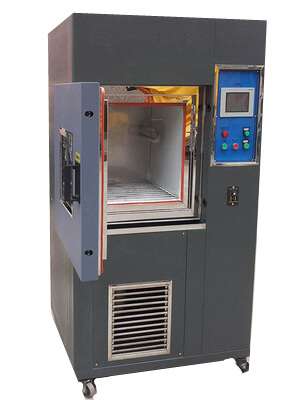

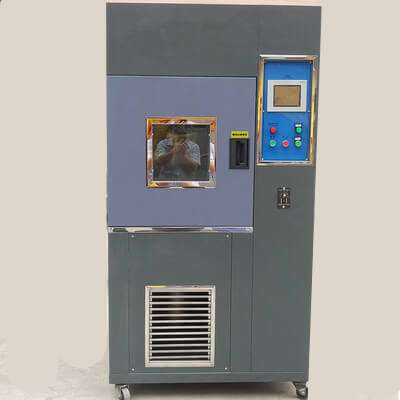

Sand and Dust Test Chamber Simulation Environment Sand Dust Resistance Test Equipment

Sand dust test chamber, simulating the damage of natural sand climate to the product, is suitable for testing the sealing performance of the product shell, mainly used for IP5X and IP6X tests specified in the shell protection level standard. Air flow with dust vertical circulation on the equipment, and dust for test can be recycled The whole air duct is made of imported high-grade stainless steel plate, the bottom of the air duct is connected with the conical hopper interface, the air inlet and outlet of the fan are directly connected with the air duct, and then the diffusion port on the top of the working chamber is connected with the working chamber body at a proper position, forming an "O" type closed vertical dust blowing circulation system, so that the air flow can flow smoothly and the dust can be distributed evenly as far as possible. A single high-power and low-noise centrifugal fan is used, and a frequency converter is used to adjust the wind speed according to the test requirements.

Specifications
