Vacuum Centrifugal Mixer

Vacuum Planetary Centrifugal Mixer Machine with Two 300 mL Cups & Optional Independent Speed Control

  • Model Number:

    MSK-PCV-300-LD
  • Dimension(L*W*H):

    400 mm (W) x 590 mm (H) x 580 mm (D)
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 day
Product Details

Vacuum Planetary Centrifugal Mixer Machine with Two 300 mL Cups & Optional Independent Speed Control


The planetary centrifugal vacuum mixer MSK-PCV-300-LD is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes two 300 mL containers and counter-weights. High-throughput adapters are also available for 6 samples (7 ml per sample) mixing per batch. We are committed to providing premium laboratory mixer for you!

SPECIFICATIONS

Features

Planetary Centrifugal Mixer

Planetary Centrifugal Mixer


  • Compared with other brands of the planetary centrifugal mixer, MSK-PCV-300 has the following unique features:
    • Mixing under vacuum for deaeration
    • Dual containers for larger quantity
    • Minimized contamination (no metal mixing blade)
  • Sample Materials
    • Nanopowders, ceramic powders
    • Grease
    • Slurry
    • Paste
Voltage Input
  • Single Phase AC 208 - 240V, 50/60 Hz
Power
  • Maximum: 2000 W
  • Motor Power: 750 W
Mixing

Planetary Centrifugal Mixer

  • Planetary Centrifugal Vacuum Mixing
    • The centrifugal force of rotation and revolution induces convection, homogenizing the materials
    • With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials
              Planetary Centrifugal Mixer   Planetary Centrifugal Mixer
Vacuum Capability
  • Pumping Rate: 165 L/min
  • Ultimate Vacuum: -95 kPa
  • Built-in vacuum pump with integrated control
Speed
  • Fixed speed ratio ( 0.6X between main plate revolution and container rotating )
    • Sample Platen Rotation (revolution motion):600 rpm - 2,000 rpm (adjustable)
    • Container Spin (rotation motion):360 rpm - 1,200 RPM (fixed at 0.6X of the revolution speed)
Containers and Counter-Weights
  • Two standard containers and counter-weights are included
    • Two 300 mL containers with gas vent, made of high-density Polyethylene ( Pic 1, 2 )
    • Counter-weights (10, 20, 50 g) with adapter, made of high-density Polyethylene (pic 3)
    • For ball milling application,  please choose stainless steel liner, which will reduce jar compacity to 200 ml  ( Pic 4)
                     Planetary Centrifugal Mixer Pic. 1   Planetary Centrifugal Mixer Pic.2        Planetary Centrifugal Mixer  Pic. 3     Planetary Centrifugal Mixer Pic. 4
Optional
  • Optional containers, which can be ordered at MTI at extra cost:
    • Two 100 mL containers (not included) with adapter and gas vent, made of high-density Polyethylene
    • Two 30 mL containers (not included) with adapter and gas vent, made of high-density Polyethylene
    • 26 mm Dia. adapter for 30 mL syringe (not included), made of high-density Polyethylene

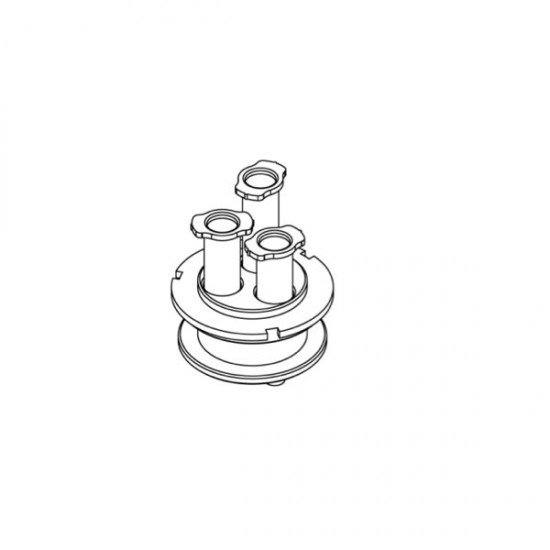

    • Two 3-container-sets (7 ml, 16 mm ID x 90 mm H) in one adapter are available for high throughput research (6 samples per batch)
    • You may order stainless steel container for ball milling application (Pic second to the right)
    • You may also order stainless steel container with a thicker wall for smaller sized ball milling application (the rightmost pic)
                    Planetary Centrifugal MixerPlanetary Centrifugal MixerPlanetary Centrifugal MixerPlanetary Centrifugal MixerPlanetary Centrifugal Mixer
Max. Mixing Volume and Weight

Container

Max Sample Volume

Max Sample Weight

Max Gross Weight (Container Included)

300 mL

150 mL

140 g

300 g

100 mL

50 mL

45 g

80 g (adapter not included)

80 mL(SS)

60 mL

90 g

300 g (adapter included)

 30 mL

15 mL

12 g

20 g (adapter not included)

  • Attention: Sample overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading the
Program
  • Store up to 6 programs in memory, as shown in Fig.1
  • 3 programmable segments, as shown in Fig.2. For example:
    • 800 rpm revolution speed (480 rpm rotation speed) for 60 sec;
    • 1500 rpm revolution speed (900 rpm rotation speed) for 180 sec;
    • 1000 rpm revolution speed (600 rpm rotation speed) for 60 sec.
  • Maximum running time for each segment is 200 sec. Maximum total running time is 600 sec
  • The rotation direction could be either clockwise (mode A) or counter-clockwise (mode B)
      Planetary Centrifugal Mixer  Planetary Centrifugal Mixer
              Fig.1                              Fig.2
Safety and Protection
  • Safety warning and interlocks are integrated. The unit automatically stops when
    • The unit is overloaded with the sample
    • The sample is loaded in an unbalanced way
    • The top cover is opened
Warranty
  • One year limited standard warranty with lifetime technical support

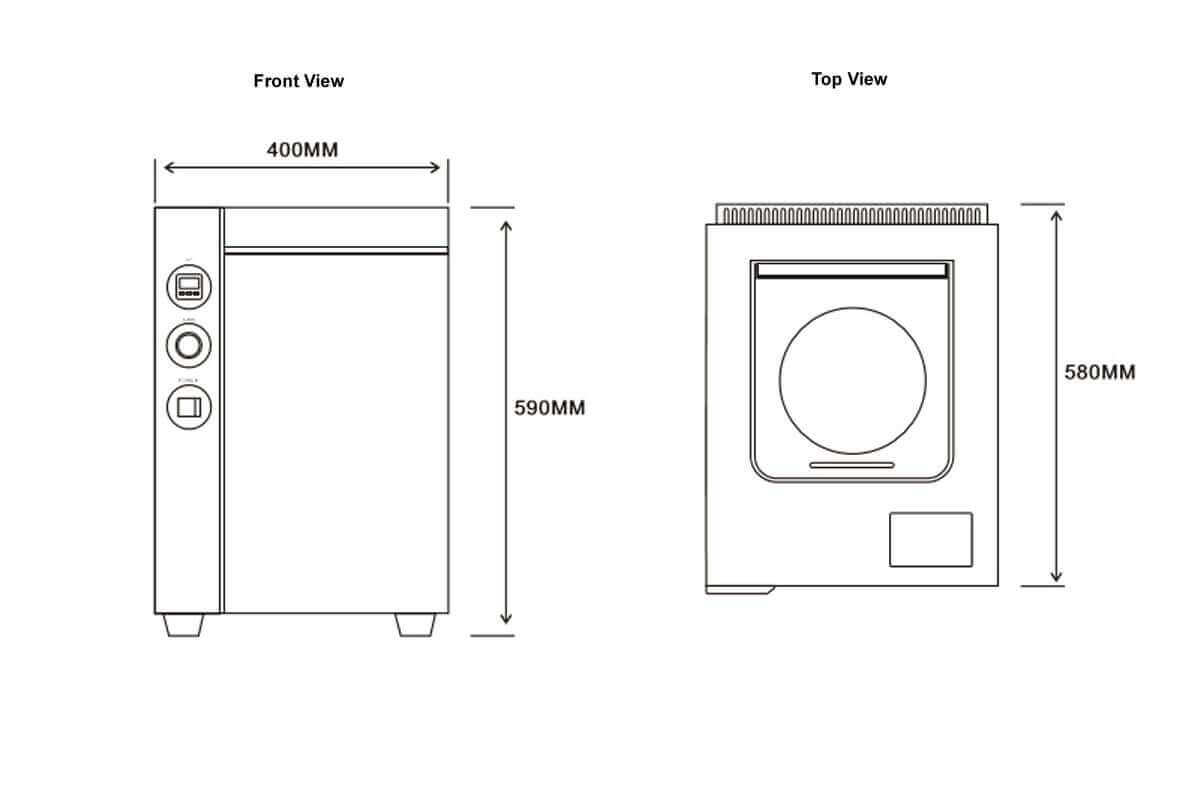

Dimension
  • 400 mm (W) x 590 mm (H) x 580 mm (D)
  •     Planetary Centrifugal Mixer   Planetary Centrifugal Mixer
Weight
  • 90 kg (200 lbs)
Shipping Weight & Dimensions
  • 267 lbs
  • 47"x39"x38"
Application Notes
  • Always use the mixer on level & stable surface for best performance and maximum safety
  • Do not use the mixer in a hazardous atmosphere, or with flammable, explosive, corrosive, poisonous material! Check the chemical resistanceof the container with the different material before loading the sample!!!
  • Do not overload the mixer! Stop the mixing operation immediately if abnormal sound/vibration are observed
  • Use a digital balance to make sure the sample loading is balanced before mixing
  • Double check if the containers are mounted correctly and securely before mixing
  • Do not open the cover lid until the rotation has completely stopped! Do not retrieve the containers and/or put hand close to mixing fixture while the rotation has not completely stopped!
  • Only use the included containers for the mixing operation! Double check to make sure there is no foreign object in the mixer before mixing
  • Please click underline to learn Centrifugal Force calculation.
