Features

·         Compared with other brands of the planetary centrifugal mixer, MSK-PCV-1100 has the following unique features:

o    Mixing under vacuum for deaeration

o    Dual containers for larger quantity

o    Minimized contamination (no metal mixing blade)

o    Low cost

·         Sample Materials

o    Nanopowders, ceramic powders

o    Grease

o    Slurry

o    Paste

Voltage Input

Single Phase AC 208 - 240V, 50/60 Hz

Power

·         Maximum: 1500 W

·         Motor Power: 1000 W

Mixing

·         Planetary Centrifugal Vacuum Mixing

o    The centrifugal force of rotation and revolution induces convection, homogenizing the materials

o    With the vacuum pressure, submicron air bubbles can be efficiently eliminated from the materials

Vacuum Capability

·         Pumping Rate: 60 L/min

·         Ultimate Vacuum: -98 kPa

·         Built-in vacuum pump with integrated control

Speed

·         Sample Platen Rotation (revolution motion):100 rpm - 2,000 rpm (adjustable)

·         Container Spin (rotation motion):78 rpm - 1,800 RPM (fixed at 0.78X of the revolution speed)

·         Customized ratio between revolution and rotation is available upon request at extra cost

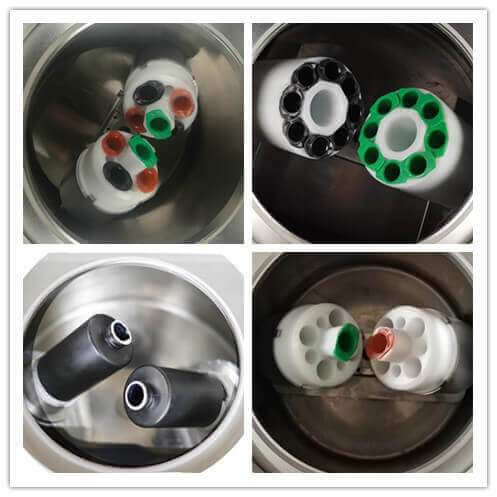

Containers and Counter-Weights

·         Two standard containers and counter-weights are included

o    Two 1100 mL containers with gas vent, made of high-density Polyethylene

Max. Mixing Volume and Weight

·         Attention: Sample overload might damage the motor and/or cause spilling. Follow both the volume and weight limit when loading.

Program

·         Store up to 10 programs in memory.

·         5 programmable segments. For example:

o    800 rpm revolution speed (480 rpm rotation speed) for 60 sec;

o    1500 rpm revolution speed (900 rpm rotation speed) for 180 sec;

o    1000 rpm revolution speed (600 rpm rotation speed) for 60 sec.

o    1200 rpm revolution speed (936 rpm rotation speed) for 60 sec.

o    600 rpm revolution speed (468 rpm rotation speed) for 60 sec.

·         Maximum running time for each segment is 200 sec. Maximum total running time is 1000 sec

·         The rotation direction could be either clockwise (mode A) or counter-clockwise (mode B)

Safety and Protection

·         Safety warning and interlocks are integrated. The unit automatically stops when

o    The unit is overloaded with the sample

o    The sample is loaded in an unbalanced way

o    The top cover is opened

Dimension

655 mm (W) x 805 mm (H) x 950 mm (D)

Weight

170 kg
