Vacuum Pump

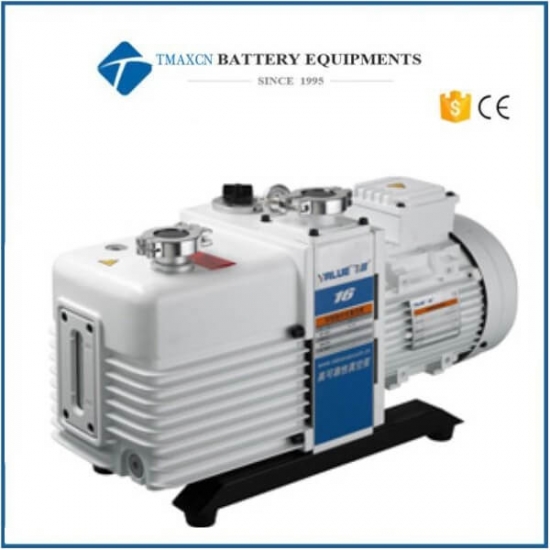

Vacuum pump

  • Model Number:

    TMAX-vacuum pump16
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10 day
  • contact now
Product Details

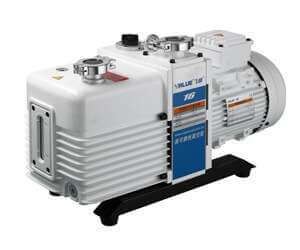

Vacuum pump



Product number

Technical name

Technical Parameters

MAX-vacuum pump16

Pumping speed m3/h(L/s)

50Hz

16 m³/h

4.4 L/s

60Hz

19.2 m³/h

5.2 L/s

Limit partial pressure - no gas town (Pa)

4x10-2

Ultimate total pressure - no gas town (Pa)

4x10-1

Ultimate total pressure - gas town (Pa)

8x10-1

power supply

Single phase / three phase

Motor power (KW)

0.75 KW/0.55 KW

Intake and exhaust connection port DN

KF25

Oil consumption

0.9-1.5 L

Motor speed (rpm)

50Hz

1440 rpm

60Hz

1720 rpm

Working temperature

5-40

Noise (dB)

≤58

Weight(kg

30kg

vacuum pump






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
