Product Details

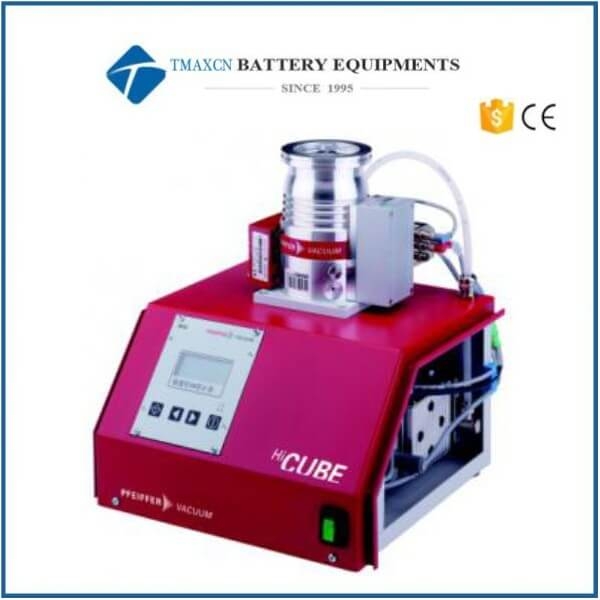

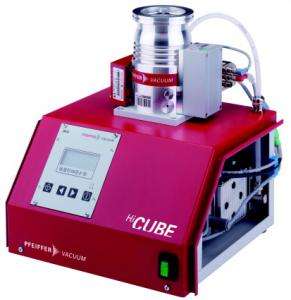

Pfeiffer molecular pump

pfeiffer HiCube 80 Eco The compact design is high performance, the front stage pump is equipped with dry pump to ensure clean oil free.The ultimate vacuum degree of molecular pump group can reach < 1x10-7 hPa.

This molecular pump group is ideal for many applications.

The optional interface DN 63/40 is optional for the molecular pump group, and the optional molecular pump group shows the controller DCU 002.

Advantages of this series of molecular pumps:

  1. The compact design of molecular pump is suitable for all high vacuum applications
  2. Air-cooled design, easy maintenance
  3. The perfect combination of the former stage pump MVP 015 dry vacuum pump and molecular pump Hipace 80

Pfeiffer  HiCube 80 Eco parameters:

Front stage pump (dry vacuum pump)

MVP 015

Molecular pump group flange interface

Optional :DN 63/40(KF/CF/F)

Molecular pump unit power supply

110 V, 50/60 Hz;230 V, 50/60 Hz

Forepump pumping(50 HZ)

0.50 m3/h

pumping speed(N2)

67 l/s

Weight

17kg

Limit Vacuum Degree

< 1x10-7 hPa





Hicube 80 Pfeiffer Vacuum

Pfeiffer molecular pump






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
