VACUUM PUMP

Molecular Pump

  • Model Number:

    TMAX-pump620
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10 day
  • contact now
Product Details

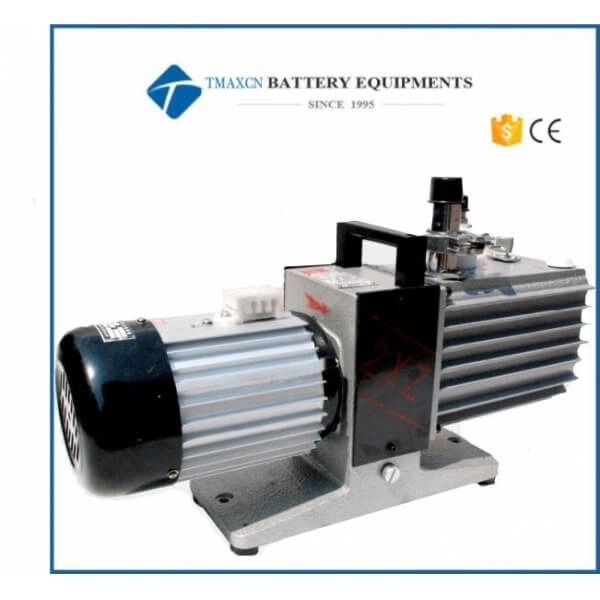

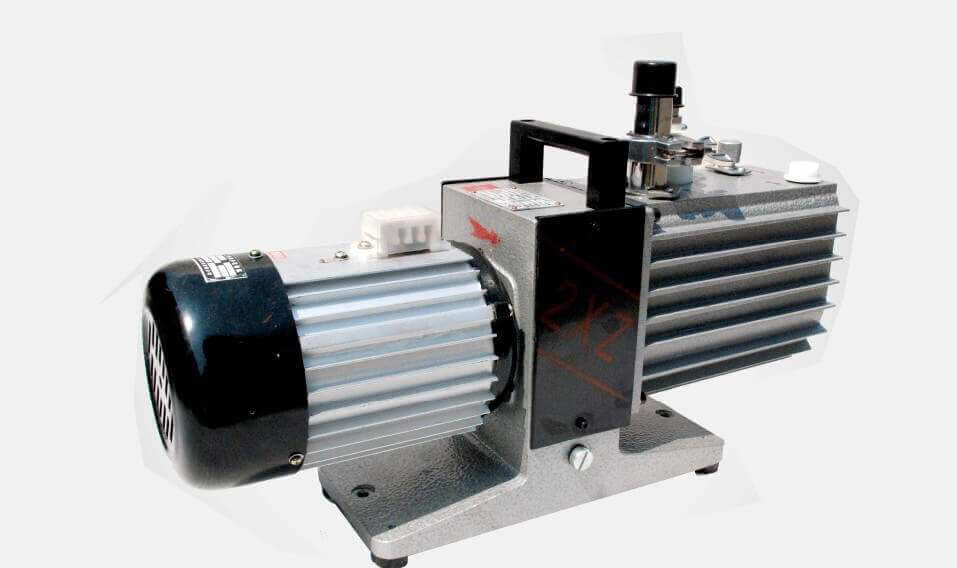

Monoblock Rotary-vane Vacuum Pump

Monoblock Rotary-vane Vacuum Pump is a kind of new pump, which is designed on the basis of rotary-vane vaccum pump through major reforms of structures, materials and manufacturing process.


Monoblock pump has the features such as small size, light weight, small vibration and low noise etc. It is suitable for the installation in the use of precision instrument and equipment.


Monoblock pump is directly driven by three-phase or single-phase AC motor.

It can be used alone, and also can be used as prepump for various vacuum system.

Accompanied by gasballast equipment, monoblock pump could extract a quantity of condensable gas.


Monoblock pump can not be used as compression pump or delivery pump to extract dusts, corrosive and explosive gas.


Features:

●    Smaller size, lighter weight

●    Lower noise, less vibration

●    Easy Starting with oil-backstreaming preventing when pump stopped.

●   Inlet connection of quick release flange with mouth.

●    With gasballast valve, a small quantity of water vapor could be extracted.



Main specifications:

Model
2XZ—0.5
2XZ—1
2XZ—2
2XZ—4
2XZ—8
Pumping speed L/s
0.5
1
2
4
8
Ultimate pressure ≤Pa
Without gas ballast
≤ 6×10-2
With gas ballast
≤6.5
≤1.33
 Speed r.p.m
1440
1420
 Motor power  kw
0.18
0.25
0.37
0.55
1.1
Bore of air inlet ports mm
16
16
KF25
KF25
KF40
 Temperature arise ℃
≤40
65
45(1)
Oil capacity  L
0.65
0.55
0.61
0.80
1.8
Overall
dimensions mm
L
445
445
488
528
590
B
130
130
145
145
235/298(1)
H
254
254
280
250
456
Weight (three-phase machine) kg
13.5
15
20
23
48.5/52(1)
 Lp/Lw dB(A)
64
66
68
70
76



Note: (1) indicate when the water cooling
Outline dimension drawing
 Vacuum Pump






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
