Roller Press

4"-16" Width Lab Heat Electric Roller Press Machine with Variable Speed

  • Model Number:

    TMAX-JS
  • Type:

    Roller Press Machine
  • Dimension(L*W*H):

    100mm-400mm Width
  • Net Weight:

    60-120kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years warranty and lifetime maintenance
  • Delivery Time:

    7 days
Product Details

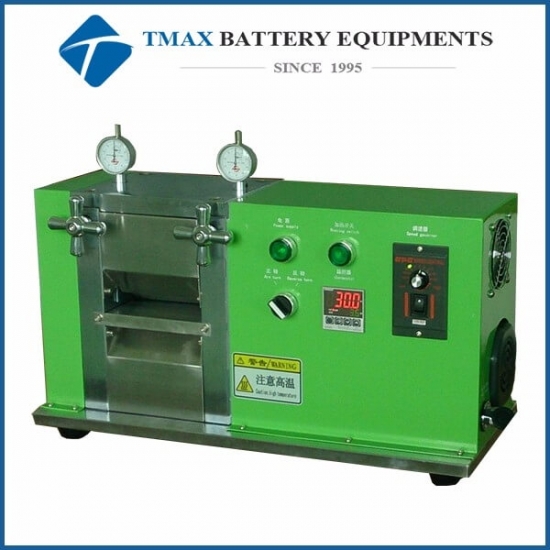

4"-16" Width Lab Heat Electric Roller Press Machine with Variable Speed


Features

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness. For full details about dual shaft mixer here.


Specifications

Model

TMAX-JS

Working Power

2400W

Voltage

220V/110V selectable

Effective Calendering Width

100-400mm selectable

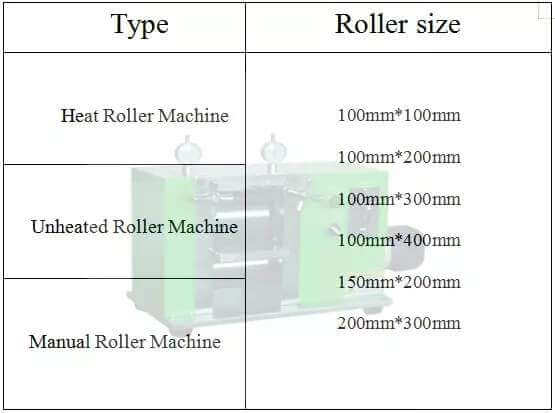

Roller Size Optional

100mm Dia. x 100mm W

100mm Dia. x 200mm W

100mm Dia. x 300mm W

100mm Dia. x 400mm W

Or customized roller diameter and rolling width

Hardness of roll surface

HRC62, imported 9CR2MO steel roll material

Calendering Thickness

(Effective clearance)

0~3 mm adjustable

Dial Gauge Accuracy

0.01mm

Rolling Speed

CVT, linear speed 0-8.5 m/min adjustable

Roller Surface Finish Degree

Hard chromium plating never rusts

Roll surface quenching depth

5mm

Max. Pressure

5Ton

Heating Temperature

· 150°C Max. (< 1hr)

· 130°C Continuously

· Recommended Heating Rate: 1.3°C/minute

The heating temperature can be customized

 Operation environment  Ar gas compatible

Temperature Control Accuracy

+/-1°C

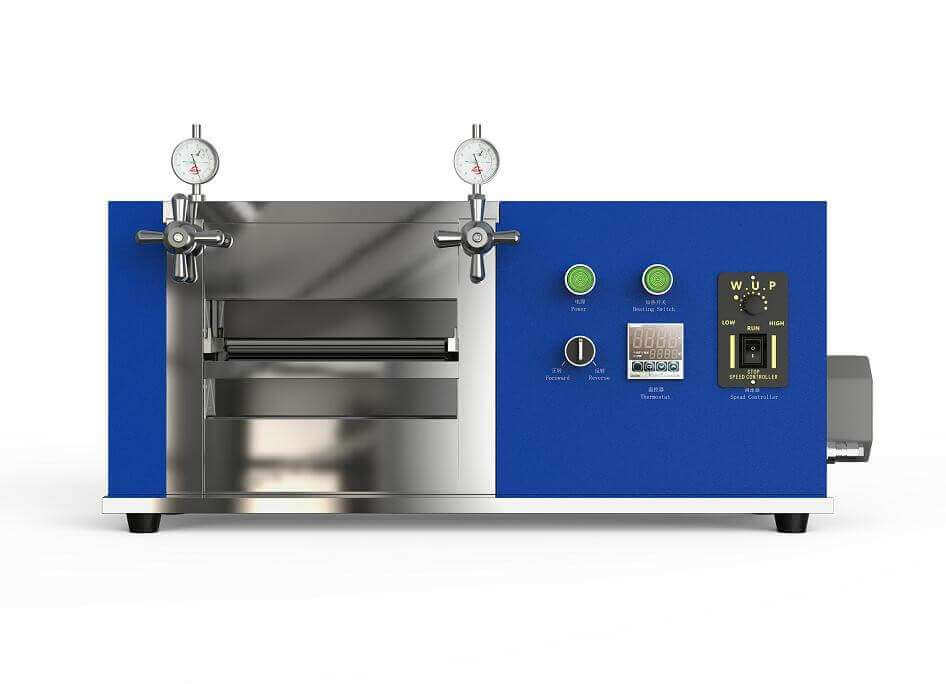

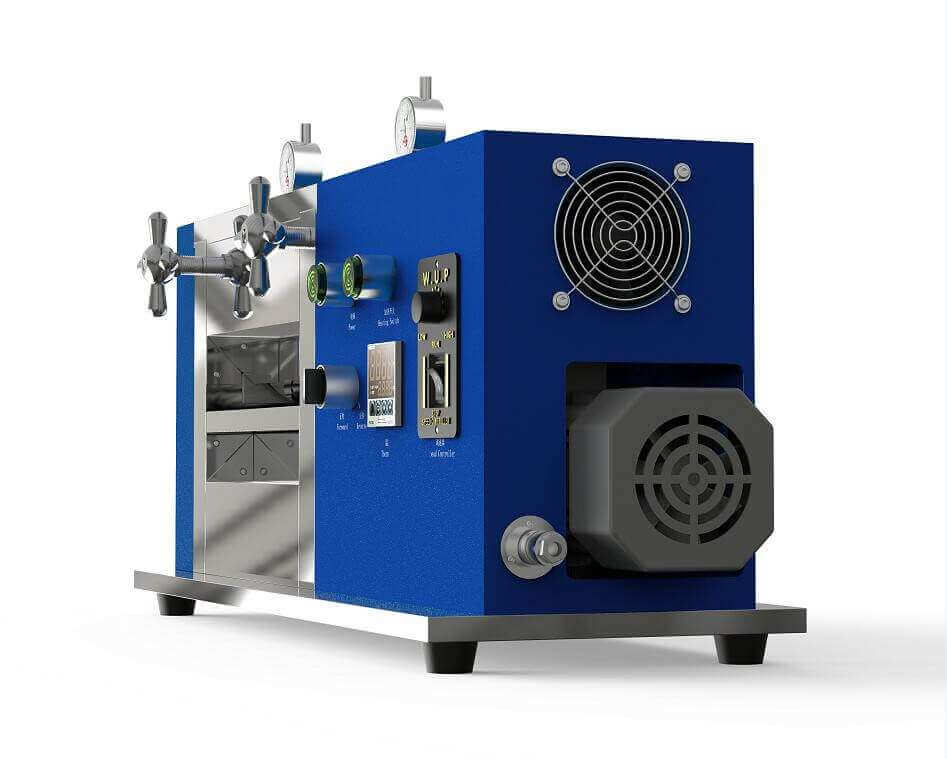

heat roller press

heat roller press

heat roller press

heat roller press

hot roller press

heat roller press






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
