inert gas glove box

Bench-top transparent inert gas glove box

  • Model Number:

    TMAX-VGB-2Y
  • Dimension(L*W*H):

    1150x 500 x 500mm
  • Net Weight:

    25 kg (55 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Bench-top transparent inert gas glove box


DESCRIPTION:

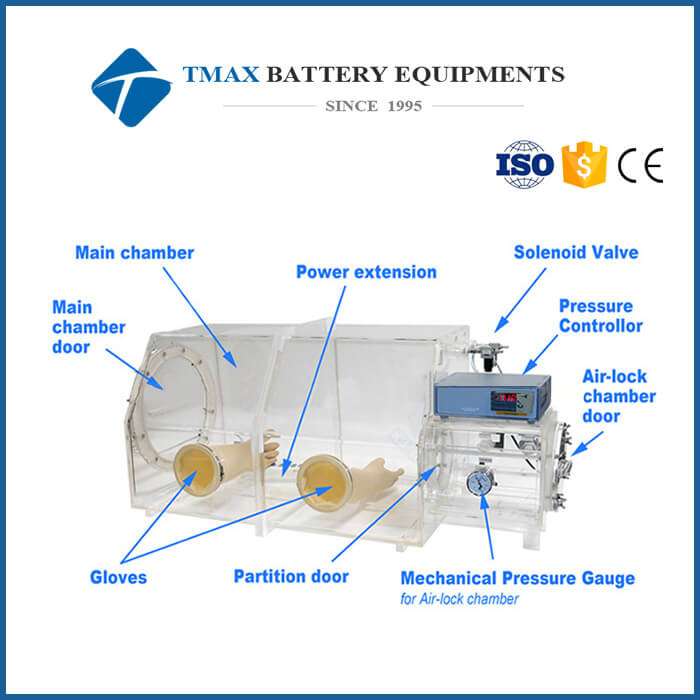

VGB-2Y Bench-top transparent lab glove box offers inert gas environmental workspace with vacuum air locker and side door. Two vacuum gauges indicate the pressure inside the main chamber and air-lock chamber respectively.

Three manual valves are installed for immediate use, while two solenoid valves are installed on the main chamber to implement the pressure auto-control. The Glove box is made of transparent acrylic providing a clear view from any angle.

Acrylic construction offers resistance to a wide range of chemicals,

high-impact strength, and scratch-resistance. It is widely used for preparing nano-materials.


SPECIFICATIONS:

Glove Box Chamber

Case Material: Transparent Acrylic
Dimensions: 875mm(L) x 480mm(W) x 500mm(H)
Max. Vacuum Level: 675 Torr (90 kPa)

Air-lock Chamber

Dimensions: 230mm(L) x 220mm(W) x 230mm(H)
Max. Vacuum Level: 100 Torr (13 kPa)

Vacuum gauges & valves

One mechanical vacuum gauge is installed for air-locker chamber
Two solenoid valves are installed on glove box chamber for pressure auto control
Two needle valves for main chamber and air-lock chamber are installed for immediate use

Pressure controller

Controls pressure inside the glove box chamber by adjusting the two solenoid valves
Working Voltage: 110-220V

Pressure Control Range: 101 - 95 kPa(Default)

Optional Equipment

You may order a Humidity & Temperature Monitor with Detachable Probe and KF-25 feedthrough,

Gloves

One pair of Latex Gloves are included for immediate use

Net weight

25 kg (55 lbs)

Product Dimensions

1150mm(L) x 500mm(W) x 500mm(H)

Application Notes

Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation
Corrosive gases are prohibited as they will damage the water sensor and oxygen sensor
The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas

Warranty

One year limited warranty with lifetime support


Main Parameters of Transparent Glove Box

No.

Model No.

Box Size
(mm)

Material

Glass Thickness
(mm)

Size of Transition Cabinet
(mm)

Remarks

1

GBT-10A

740*450*500

Organic Glass
or Acrylic Glass

10

No Transition Cabinet

Isolated from dust, no vacuum

2

GBT-15A

740*450*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

3

GBT-30A

740*450*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

4

GBT-10B

1000*500*500

10

No Transition Cabinet

Isolated from dust, no vacuum

5

GBT-15B

1000*500*500

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

6

GBT-30B

1000*500*500

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

7

GBT-10C

1200*600*600

10

No Transition Cabinet

Isolated from dust, no vacuum

8

GBT-15C

1200*600*600

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

9

GBT-30C

1200*600*600

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

10

GBT-10D

1200*800*700

10

No Transition Cabinet

Isolated from dust, no vacuum

11

GBT-15D

1200*800*700

15

240*240*240

Slight vacuum can be pumped, water or oxygen removal system is for option.

12

GBT-30D

1200*800*700

30

240*240*240

Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
