Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers

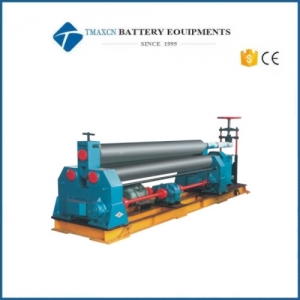

Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers   Features W11 three-roller rolling machine use mechanical driven mechanism,upper roller,special side wheel can be installed according to customers' specialrequirement,in order toprocess differ-ent kind of material,such as anglesteel rolling,round steel pipe rolling and etc   Technical parameter Type Max. Thickness of plate Max. Width of plate Plate yield limit Rolling speed Min dia. In full load Dia. Of upper roller Dia. of lower roller Center distance of lower roller Main motor power Weight Dimension Unit mm mm mpa M/min mm mm mm mm KW T mm W11-6x1500 6 1500 265 7.16 380 180 160 210 5.5 2.6 3310x1210x1330 W11-6x2000 6 2000 265 7.16 380 180 160 220 5.5 3.1 3810x1210x1330 W11-6x2500 6 2500 265 7.16 500 190 170 260 7.5 4.6 4310x1210x1330 W11-6x3200 6 3200 265 6.45 500 240 200 310 11 7.2 5200x1400x1200 W11-8x2000 8 2000 265 7.16 450 190 170 260 7.5 4.1 3810x1210x1330 W11-8x2500 8 2500 265 6.46 500 2450 200 310 11 5.5 4500x1420x1610 W11-12x2000 12 2000 265 5 500 240 200 310 11 5.5 4050x1420x1610 W11-12x2500 12 2500 265 5 750 260 220 330 11 6.3 5000x1500x1300

Hydraulic 4 Roller Plate Bending Machine For Metal Plate Rolling

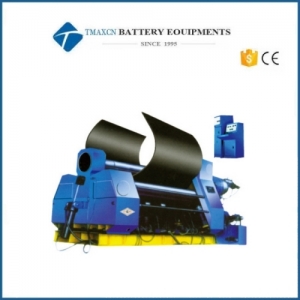

Hydraulic 4 Roller Plate Bending Machine For Metal Plate Rolling   Features ZDW12 4-roll rolling machine with mechanically-driven up-roll, and hydraulically-driven low-roll and side-roll, is electrically controlled. The machine can finish pre-changing of two ends of plates.rolling of cylindrical or arc parts, levelling and pre-bending of metal plates at onetime,thus, it is very effective.   Technical parameter Type Max. Thickness of plate Max. Width of plate Plate yield limit Rolling speed Min dia. In full load Dia. Of upper roller Dia. of lower roller Center distance of lower roller Main motor power Weight Dimension Unit mm mm mpa M/min mm mm mm mm KW T mm 8x2000 8 2000 6.1 6 700 280 260 180 11 11 5300x1400x1760 8x2500 8 2500 6.1 6 750 300 280 230 15 15 6100x2000x2070 12x2000 12 2000 5.45 10 700 300 280 230 15 15 5500x2000x2070 12x2500 12 2500 5.5 10 750 340 300 260 22 22 6300x2000x1200 12x4000 12 4000 4 10 850 380 340 260 30 30 7500x2000x1800 16x2000 16 2000 5.5 12 750 340 300 260 22 22 5500x2000x1800 16x2500 16 2500 6.5 12 850 350 320 280 30 30 6510x2000x1870

Three-Roll Hydraulic Plate Rolling Bending Press Machine

Three-Roll Hydraulic Plate Rolling Bending Press Machine   Introduction The plate rolling process of a plate rolling machine is a continuous three-point bending process of the plate. According to the different rolling temperatures, it can be divided into cold rolling, hot rolling and warm rolling. It is mainly a mechanical equipment that bends metal plates of a certain thickness into cylindrical, arc-shaped, rectangular and other curvatures or variable curvatures. It is one of the essential mechanical equipment in the metallurgy, building materials, petroleum, chemical, water conservancy and power, bridge, military industry, coal, mining, shipbuilding, boiler, aviation, power transmission and transformation equipment manufacturing industries. This machine belongs to the hydraulic three-roll plate bending machine, which is used to complete the pre-bending, rolling and straightening of the plate ends of various container carbon steel and low alloy steel plates without turning at room temperature after one feeding. The upper roller can move vertically or horizontally. Pre-bending is achieved by the horizontal movement of the upper roller, causing it to be in an asymmetrical position relative to the lower roller. The rounding process is carried out by the motor and the reducer driving the two lower rollers. Since the elevation of the lower roller remains unchanged, it is convenient for feeding and operation. Provide a detailed electrical schematic diagram. Electrical wiring must be strictly carried out in accordance with the drawing. The numbers at both ends of each connection are clear and complete. The terminal blocks of the wires are marked with the same wire number as the connection number, and corresponding marks are made on the electrical wiring diagram and schematic diagram. All the electrical components used in the equipment are high-quality products from well-known enterprises. Electrical protection devices (such as current relays, air switches, etc.) are strictly tested before installation to ensure reliable operation. The equipment operates smoothly, with flexible control, no jamming, oil leakage or abnormal noise. The tipping frame adopts hydraulic tipping, which is relatively fast. The vertical displacement of the upper roller is driven by hydraulic power, while the horizontal movement is driven by mechanical power. The equipment has high reliability and a low failure rate.   Technical parameter No Item Unit Parameters 1 Maximum thickness of the rolled plate mm T16*B3000*φ900(0s≤245MPa) 2 Maximum pre-bent plate thickness mm T12*B3000*φ900(0s≤245MPa) 3 Maximum width of the rolled plate mm 3000 4 The working length of the roller mm 3050 5 The remaining straight side length mm ≤4 times the thickness of the board 6 Apply pressure to he upper roller T 200 7 Rolling plate speed m/min 4.5 8 Upper roller diameter mm φ330 9 Diameter of the lower roller mm Ф180 10 The center distance between the two lower rollers mm 300 11 The pressure application speed of the upper roller mm/min 120 12 Number of idlers pcs 4 13 Number of idler sets pcs 1 14 Main motor power KW 15 15 Power of hydraulic motor KW 5.5 16 Power of mobile motor KW 1.5 The equipment's capacity for rolling cone cylinders is 60% of its full-load capacity The rounding capacity is 70% of the full-load capacity Oil cooling is an optional accessory

100KG-2200KG Laboratory Pneumatic Metal Plate Bending Press Machine

100KG-2200KG Laboratory Pneumatic Metal Plate Bending Press Machine   Introduction Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals. Technical parameter Model BSW01-100kg BSW01-300kg BSW01-500kg BSW01-800kg BSW01-1500kg BSW01-2200kg Nominal pressure(T) 0.1 0.3 0.5 0.8 1.5 2.2 Maximum working pressure of liquid(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 Maximum opening distance mm 250 250 250 300 300 300 Maximum stroke mm 100 100 100 100 100 100 Workbench size   Left and right mm 300 300 300 350 350 350 Before and after mm 200 200 200 250 250 250 Height of machine mm 800 800 850 1000 1050 1100
