Planetary Vacuum Mixer

Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml),and 50mL&150mL containers for choose

  • Model Number:

    MSK-SFM-16
  • Input Power:

    200W
  • Dimension(L*W*H):

    330*320*570mm
  • Net Weight:

    70 lbs
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 day
  • contact now
Product Details

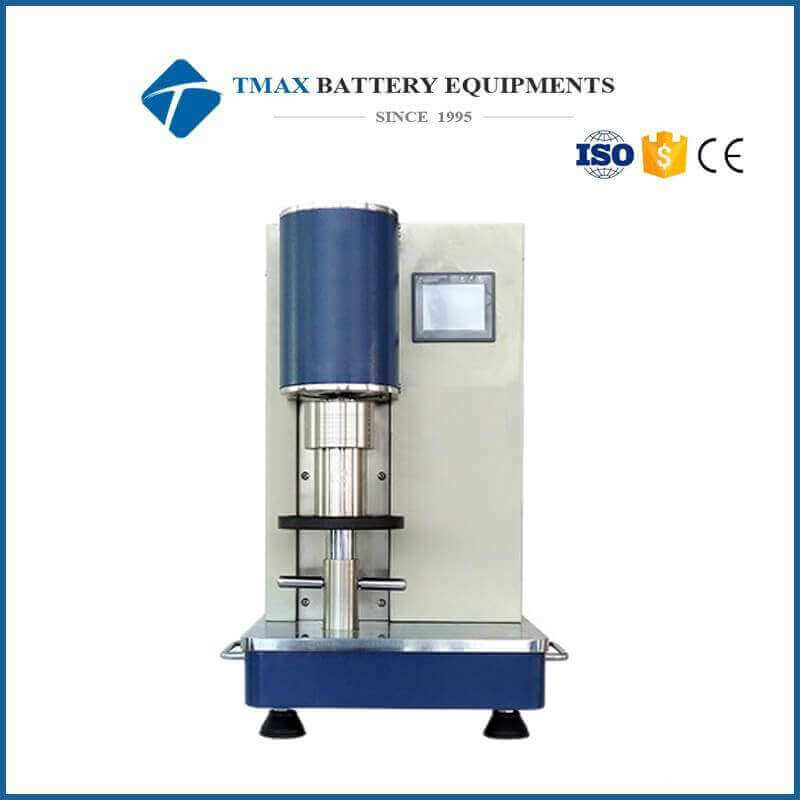

Compact Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml) - MSK-SFM-16

MSK-SFM-16 is a UL/CSA ready Compact Dual-Shaft Planetary Vacuum Mixer which can mix slurry much more uniform than the single shaft and remove gas bubble more efficiently. It has a built-in pump which can evacuate the mixing container to -0.08 Mpa with three segments programmable mixing speed from 0 - 600 rpm.  It is a high-quality tool for preparing battery electrode paste and various ceramic materials in the research lab.



Voltage Input

l   Single Phase 208~240VAC, 50/60hz

l   AC power plug is not included. Please click here to order the plug)

Power

200W

Rotary Speed

0 - 600  RPM

Mixing Container



l   Two vacuum sealed containers are included. 150ml stainless steel.

l   Dual helical ribbon mixing blades are built on the lid of the container.

l   50mL and 500 ml SS container is available at extra cost



Vacuum Pump &
Vacuum Level

l   Built-in single stage vacuum pump

l   Vacuum Level: -0.08~0.09 Mpa

Parameter Contol Panel

l   3.5" Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off

l   Mixing Time:    0 - 600 minute

l   Mixing Speed:  0 - 600 rpm and 3 variations in 1 setting possible

l   Note:  Max. mixing speed depends on slurry viscosity.  Max.10000 Mpa.s is allowed at 600 rpm.  Lower speed will be required for more sticky slurry

Dimensions

330mm x 320mm × 570mm (L x W x H)

Shipping Dimensions

18'' x 18'' x 24'' (L x W x H)

Net Weight

70 lbs

Warranty

One year limited with lifetime technical support

Application Notes

For best result, please consider ordering a filter to remove larger particle in slurry ( click picture below to order )







                    Planetary Vacuum Mixer







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Compact Vacuum Mixer


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.






inquiry now

    We will give you a quotation within 24 hours. give you a quotation within 24 hours.
