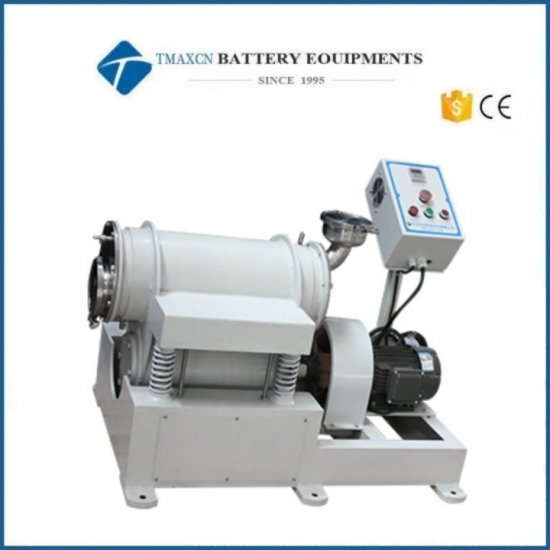

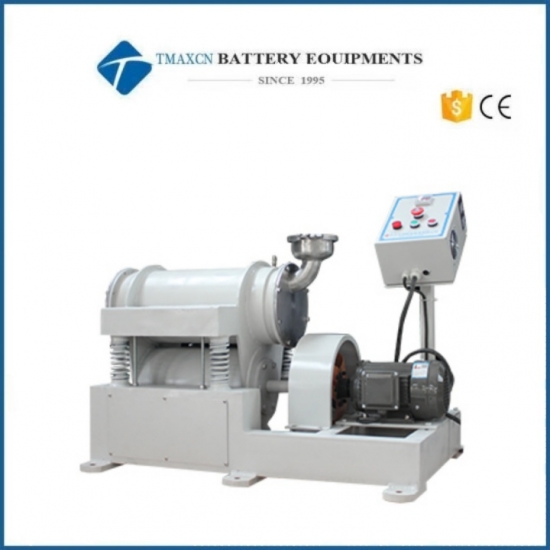

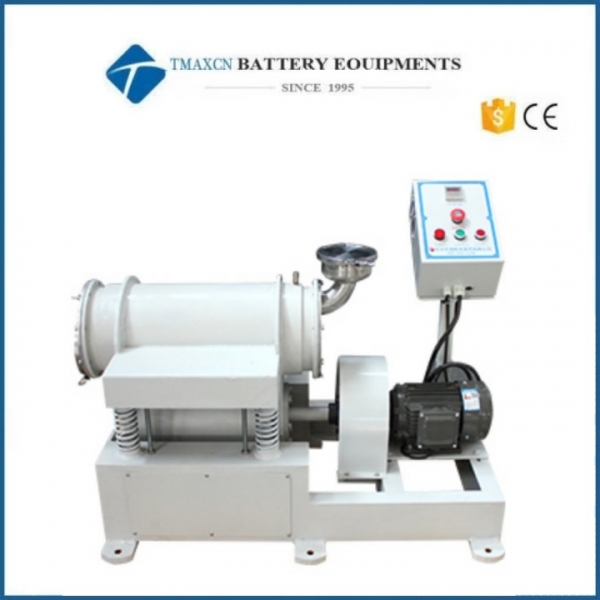

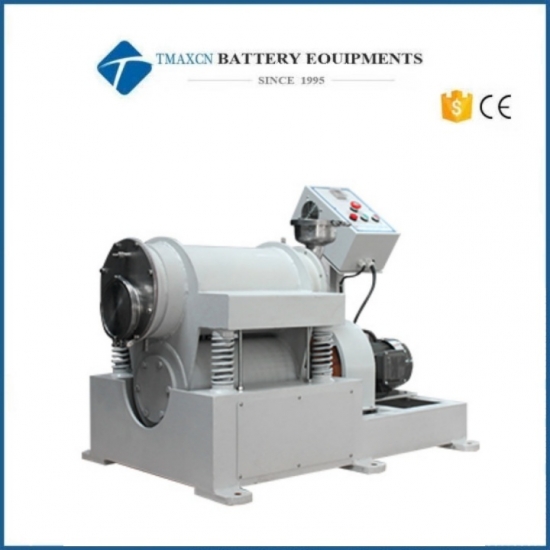

Highly Efficient Lightweight Vibration Grinding Machine

Highly Efficient Lightweight Vibration Grinding Machine

Structural Principle

The lightweight vibration ball mill is mainly composed of the frame, base frame, exciter, grinding cylinder, springs, motor, etc. When the machine is started, the motor drives the exciter to generate excitation force, causing the grinding cylinder to perform high-frequency and small-amplitude continuous vibration. Due to the rotation and relative movement of the grinding media, which causes frequent impacts and grinding abrasions on the materials, the purpose of uniform material grinding is achieved.

Structural Principle

The lightweight vibration ball mill is mainly composed of the frame, base frame, exciter, grinding cylinder, springs, motor, etc. When the machine is started, the motor drives the exciter to generate excitation force, causing the grinding cylinder to perform high-frequency and small-amplitude continuous vibration. Due to the rotation and relative movement of the grinding media, which causes frequent impacts and abrasion on the materials, the purpose of uniform grinding of the materials is achieved.

Product features

1. The filling volume of the medium in the grinding cylinder is higher than that of the ball mill of the same capacity, reaching 80%. Therefore, the processing capacity is large.

2. The structure is simple. By adjusting the amplitude, frequency, medium, and ratio, different particle sizes of products can be produced.

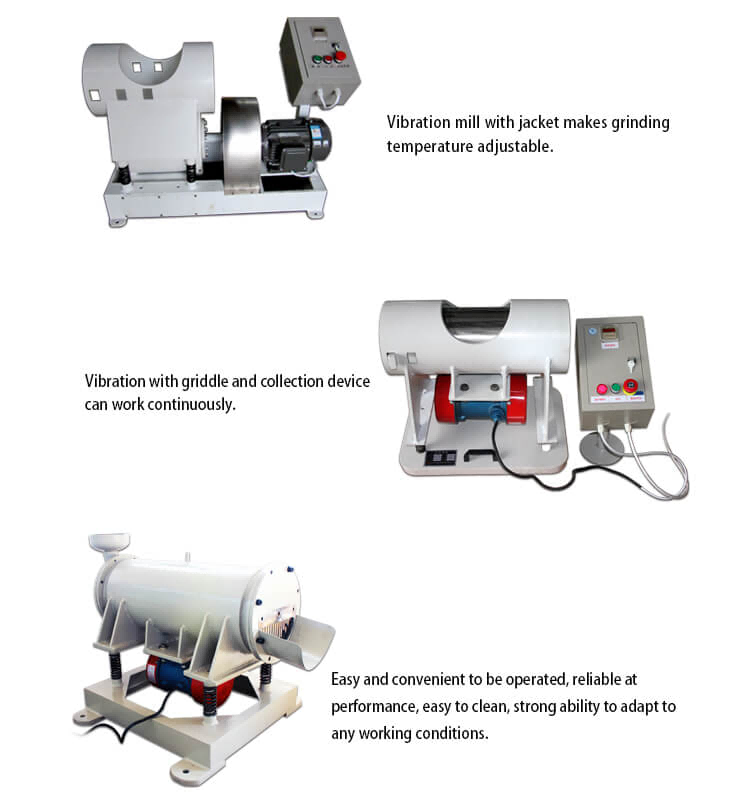

3. The vibrating mill with a jacketed grinding cylinder can regulate the grinding temperature.

4. The vibrating mill with a screen and collection device can carry out continuous production.

5. The operation is simple and convenient, the working reliability is high, it is easy to clean, and it has strong adaptability to working conditions.

6. It can be used for dry or wet ball milling.

7. It is lightweight, small in size, and has high efficiency.

8. Special customization can be carried out according to requirements.

Product Parameter

Product picture

Lightweight Vibrating Mill TMAX-ZM-(1L-5L)

Laboratory Vibration Mill TMAX-ZM-(10L-20L)
