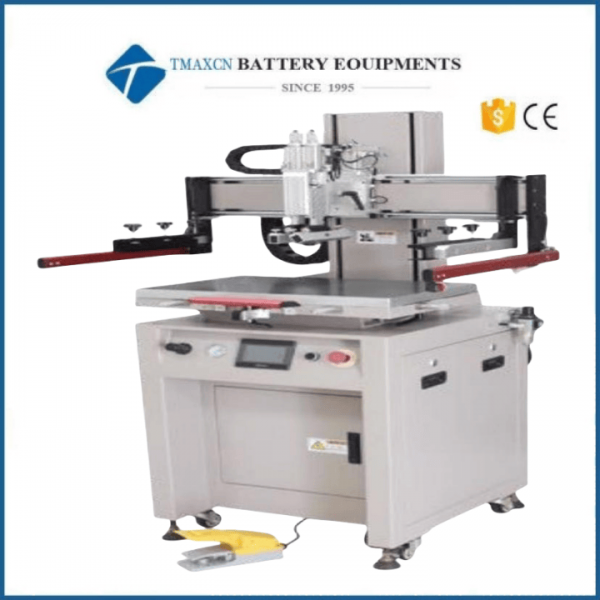

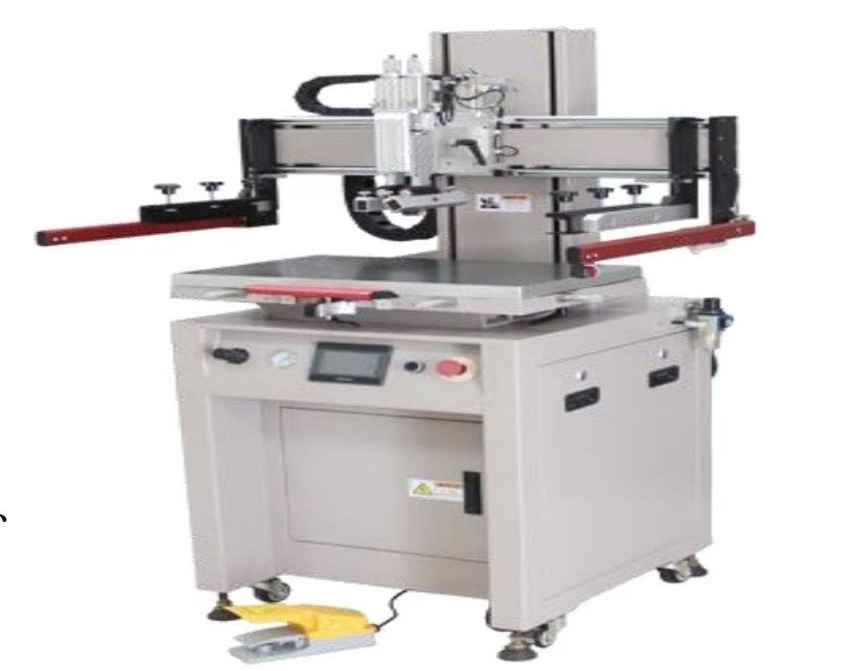

Lab Electric Precision Full Servo Flat Screen Printing Machine

Lab  Electric Precision Full Servo Flat Screen Printing Machine

Equipment use:

The machine is suitable for small film, PE sheet, small flat plate screen printing. For example, flexible circuit board, in-mold decoration, thin film keys, mobile phone glass, palm computer glass, solar silicon chip, biological test piece, projector, electronic components, etc.

Specifications:

Equipment structure:

a. The horizontal slide seat adopts double-branch linear guide rail structure, with high strength and precision, light and stable.

b. The screen clip frame adopts movable cantilever design, and the structure is light.

c. Screen lifting adopts servo motor with ball screw transmission, double linear guide rail guidance, fast and quiet operation.

d. Printing stroke using servo motor with linear guide rail guidance, fast and stable operation, accurate positioning, stroke, speed

e. Control settings to ensure high precision printing requirements.

f. A new design of the printing base, integrated scraper, ink knife angle, depth, printing and other multiple adjustment mechanisms to meet a variety of printing

g. Brush effect and convenient operation requirements.

h. Printing table three-point precision fine-tuning, adjustment fast and accurate.

i. Man-machine interface digital control, can set a variety of functions and operating parameters, conducive to operation data and standardization.

j. Oil-free three-point combination does not produce exhaust oil mist pollution, suitable for clean room use.

k. Safety pressure plate, photoelectric switch, emergency stop button, careful safety protection.

l. Can be customized according to customer requirements, to meet different use requirements.
