Lab High Printing Speed Small Screen Printing Machine with Vacuum Adsorption

Sales Manager: Gia Email: Gia@tmaxlaboratory.com Wechat: Dingqiuna Whatsapp：+86 131 7450 6016 Skype: gia@tmaxcn.com

Lab Electric Precision Full Servo Flat Screen Printing Machine

Sales Manager: Gia Email: Gia@tmaxlaboratory.com Wechat: Dingqiuna Whatsapp：+86 131 7450 6016 Skype: gia@tmaxcn.com

Lab Small Pneumatic Screen Printing Machine with Vacuum Suction

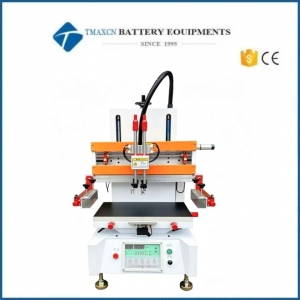

Lab Small Pneumatic Screen Printing Machine with Vacuum Suction Equipment Introduction: The KT-SY3050 is a small tabletop screen printing machine that uses pneumatic scraper for printing. It is suitable for small-sized printing and laboratory pattern printing. Main parameters of the equipment: Model KT-SY3050 Table Size 30*50cm Max Screen Frame Size 45*65cm Voltage / Power 220V, 65W Air Pressure 5-7bar Dimensions 72*65*110cm Horizontal Stroke Cylinder MAL25-400U Vertical Stroke Cylinder SC50-150 Squeegee Cylinder CQ2B32-25 Other Configurations With vacuum adsorption Remarks Pneumatic blade lifting; air compressor to be provided by user. Comes with one free screen frame and two squeegees.

CCD Vision Alignment Fully Automatic Screen Printing Machine

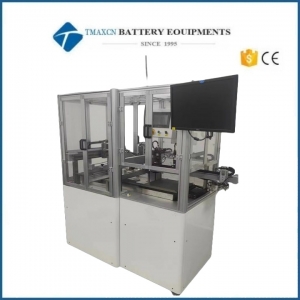

CCD Vision Alignment Fully Automatic Screen Printing Machine I. Equipment Name and Model Name: CCD Visual Alignment Automatic Screen Printing Machine Model: KT-255E II. Equipment Usage This machine is suitable for screen printing of products such as solar cells, semiconductors, biological test films, and electronic components. III. Equipment Configuration (Optional) 1. Automatic Loading and Unloading 2. Automatic Cleaning of Screen Plates 3. Automatic Adjustment of Scraper Pressure and Level 4. Downstream Material Diversion Device 5. Automatic Paper Rolling on the Workbench 6. Plate Lifting and Elevation IV. Specifications and Parameters: 1. Basic Specifications pecification Content Machine Dimensions L1500×W840×H1620mm Printing Area Max 250×250mm / Min 40×50mm Substrate Thickness 0.05mm~5.0mm Film Thickness Uniformity < ±0.001mm Power Supply 3-phase, 220V, 50Hz 3.0kW Air Pressure 0~6kgf/cm² PSI (includes air reservoir to maintain stable pressure) 2. Printing platform Printing Table Size 360mm×360mm Table Suction Area 260×260mm Table In/Out Repeatability 0.001mm (servo motor + ball screw) Table Conveying Direction Left/Right Printing Table Adjustment Range X: ±4mm, Y: ±4mm, θ: ±2° Table Alignment Accuracy < ±0.002mm Repeat Printing Accuracy < ±0.005mm Table Flatness Accuracy < ±0.015mm Table-to-Squeegee Parallelism < ±0.02mm Table-to-Frame Clamp Parallelism < ±0.02mm Table In/Out Speed 10~1500mm/s (adjustable) Platform Max Lifting Stroke 15mm Table Drive Servo motor + linear guide + ball screw (ensures no jerking at low speed) Table Material Customized per customer requirements Auto Roll Paper Function Optional Auto Alignment Device CCD automatic positioning Auto Feeding & Collecting Automatic (per customer requirements) 3. Printing base Printing Mode Fixed printing head Printing Speed 0~1200mm/s Printing Pressure 0~20kg/cm² Squeegee Stroke 0~300mm (digital setting) Squeegee Height Adjustment 20mm Squeegee Angle -30°~30° Flood Coater Height Adjustment 20mm Flood Coater Angle -30°~30° Squeegee Leveling Adjustment Available Printing Drive Servo motor 4. Frame base Max Frame Size 550×550mm Frame Thickness 25~50mm Screen Fixing 4-point cylinder clamp Screen Frame Mount Fixed screen Screen-to-Table Gap 0~15mm Auto Screen Cleaning Optional
