5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry

5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry   Introduction The hot press forming machine adopts a four-column and three-plate open space. The four columns are combined with precision sewn guide sleeves. It is a professional equipment developed for the IMD industry (in-mold decorative inlay injection molding technology) and the forming of film, PET, PVC and other sheet materials. It uses far-infrared radiation to uniformly heat the sheet materials, and then through a constant temperature device, the oil cylinder pressure makes them instantly formed. This machine can be used for both forming and punching by simply changing the mold. Scope of application Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Other industries: computer industry, communication industry, medical devices, cosmetic boxes, decorative boxes, toys, etc Features The maximum speed of this machine can reach 250MM per second, while the impact noise does not exceed 80 decibels, which is equivalent to a normal conversation in an office. The carbon fiber heating tube with rapid heating, small thermal lag and uniform heat generation has a lifespan (continuous point burning) of no less than 6,000 hours. Long-term operation of this machine by staff can enhance blood circulation in the human body, accelerate metabolism and boost immunity. This machine can be used for both forming and punching by simply changing the mold. The heating element of this machine is fully enclosed with heat insulation cotton on all sides. When in standby mode, the external radiation power only accounts for 10% of the heating power. The external radiation power of the conventional IMD hot press forming machine in the market is as high as 50%. In the hot summer, 10 units of 4KW conventional IMD equipment need to be equipped with 10 units of 5P air conditioners. And our hydraulic IMD equipment only requires two units. Application This product is widely used in the following industries: Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP5, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Computer industry: keyboards, mice, face cases; Communication industry: mobile phone keys, mobile phone lenses, mobile phone color shells, PHS and landline phone panels, window lenses; Other industries: medical devices, cosmetic boxes, sports and entertainment products, etc. Technical parameters Model 109S-5T 109S-10T 109S-20T 109S-30T 109S-50T 109S-60T Nominal force (T) 5 10 20 30 50 60 Maximum hydraulic working pressure (MPa) 7 21 21 21 21 21 Back stroke force (mm) 5 3.1 3.1 4 5.1 5.1 Height of table above floor (mm) 780 780 780 780 780 780 Biggest operational height (mm) 300 400 400 400 400 400 Maximum stroke of the ram (mm) 200 300 300 300 300 300 Dimensions of table (mm) Left-right 450 600 600 800 1000 1200 Front-back 350 450 450 600 600 700 Speed of slider (mm/s) Speed of down ≥100 ≥150 ≥150 ≥188 ≥178 ≥178 Working speed ≥100 ≥24 ≥24 ≥19 ≥14 ≥14 Speed of returning ≥100 ≥126 ≥126 ≥125 ≥116 ≥116 Heating effective area Left-right 330 550 550 700 900 1170 Front-back 300 400 400 550 550 650 Heating pipe length Total length 310 360 360 460 460 560 Dimension 700*1100*2040 900*1300*2080 900*1300*2080 1100*1700*2130 1300*1700*2480 1550*1900*2630 Motor + heating = power (KW) 2.2+3=5.2 2.5=2+6=8.2 2.2+6=8.2 2.2+7.5=9.7 3.7+10.5=14.2 3.7+13.5=17.2

20T Rubber Molding Curing Press Vulcanizer Machine

20T Rubber Molding Curing Press Vulcanizer Machine   Introduction The ZB-910 small-scale experimental vulcanizing machine can be used for vulcanization or molding of rubber products, plastics, composite materials and other synthetic materials, and can also be used for pressing standard test pieces for tensile, impact and other tests. This equipment features convenient operation, small floor space and low energy consumption. It is particularly suitable for use in factories and school laboratories without three-phase power supply.   Advantage The machine is lightweight and only requires a regular single-phase power supply. Its installation and operation are relatively simple. The pressure gauge shows the pressure, which can be adjusted freely within the range of 0 to 20MPa. The thermometer shows the temperature, and the temperature within the range can be set arbitrarily.   Technical parameters Nominal clamping force 0.2MN (i.e., 20 tons) Hot plate size 300*300mm Hot plate spacing 120mm Number of working floors Single layer Temperature range RT-250℃ (can be customized) Temperature fluctuation ±2%℃ Maximum hydraulic pressure 20MPa Total power 4KW Loading method Manual loading Power Supply 220V 50Hz Dimensions 450*450*1000mm Net weight Approximately 220Kg

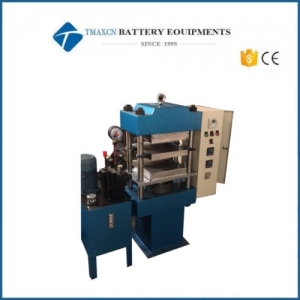

50T Electric Rubber Flat Vulcanizing Forming Equipment System

50T Electric Rubber Flat Vulcanizing Forming Equipment System   Introduction 1. The 50-ton pressure forming machine is a relatively advanced pressure forming equipment, used for the vulcanization of various rubber products and the pressing of bakelite and plastic products. The semi-machine has the advantages of compact structure and convenient operation. The electric heating is controlled and displayed by the T-2301 temperature indicator and regulator, featuring high control accuracy, intuitive temperature display and convenient adjustment. The steam heating type adopts metal hoses, which have good sealing performance, long service life and high reliability. 2. The parallel oil supply method of low-pressure high-flow gear pumps and high-pressure low-flow gear pumps is adopted, which not only ensures the rapid heating of the hot plate but also saves electricity. 3. The adoption of an automatic pressure replenishment device ensures the stability of the product quality.   Main Technical Maximum clamping pressure 0.5MN (50 tons) Pressure of the hydraulic system 16MPa Maximum stroke of the plunger 200mm Ascending speed of the plunger 16.5mm/s Heating plate size 400X400mm Number of hot plates 3 (can be increased as required) Distance between the hot plates 100mm (can be enlarged as required Total power of the electric heating 7.2Kw Heating steam pressure 0.6-0.8MPa Temperature of the hot plate 0-300 degrees Net weight Approximately 1200 kg Motor power 3KW, 1440r/min Dimensions L1450XW650XH1620mm

200T-350T Automatic Solicone Moulding Flat Vulcanizer Press Machine With Double Workstation

200T-350T Automatic Solicone Moulding Flat Vulcanizer Press Machine With Double Workstation   Main parameter Model 200T 250T 300T 350T Clamping force (T) 200 250 300 350 Stroke (mm) 300 300 300 300 Hot plate distance (mm) 300-430 300-430 300-430 300-430 Work platform (mm) Upper: 510*510 Lower: 560*560 Upper: 600*600 Lower: 650*650 Upper: 600*600 Lower: 650*650 Upper: 700*700 Lower: 750*750 Main cylinder diameter (mm) 360 400 450 475 Vacuum chamber travel (mm) 200 200 200 300 Motor power (KW) 9.5*2 9.5*2 9.5*2 11*2 Electrical power (KW) 16*2 18*2 18*2 21*2 Vacuum pump (KW) Double heads(200m2/h) Single  heads(100m2/h) ~ ~ ~ Weight (KG) Double head 9000 11300 13300 16500 Type of mold opening Rise/Fall - Mold entry and exit - front ejection mold opening - (Middle mold opening - ejection device) Dimensions (L*W*H, m) 3.2*2.4*2.6 3.45*2.6*2.75 3.45*2.6*2.75 4.5*2.8*2.95

150T-400T Automatic Solid Rubber Moulding Flat Vulcanizer Press Machine

150T-400T Automatic Solid Rubber Moulding Flat Vulcanizer Press Machine Main parameter Model 150T 200T 250T 300T 350T 400T Clamping force (T) 150 200 250 300 350 400 Stroke (mm) 320 320 320 320 320 320 Work platform (mm) 500*500 560*560 600*600 650*650 750*750 850*850 Main cylinder diameter (mm) 320 360 400 450 470 500 Motor power (KW) 5.5 7.5 11 11 11 11 Type of mold opening Rise/Fall - Mold entry and exit - front ejection mold opening - (Middle mold opening - ejection device)
