300T Four Column Hydraulic Powder Press Machine For Industrial Production

300T Four Column Hydraulic Powder Press Machine For Industrial Production Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. The YST-300T type machine is a large-scale tablet press independently developed by our factory. It can press multiple granular, powdered and crystalline raw materials into various common and special-shaped tablets. High pressure and high stability. It can be used for tablet forming in various industries. The entire equipment integrates the pressing system and the hydraulic system, presenting a simple, elegant and high-end appearance. The internal system adopts a professional hydraulic system imported from Taiwan, combined with PLC computer control. The entire movement is continuously automated. At the same time, it can avoid the problems of oil leakage and the need for frequent replacement of easily dirty oil. The mold pressing part can produce multiple pieces at a time or a single piece at a time, meeting various customer requirements. The pressing time can be appropriately adjusted by the PLC. The operation and replacement of molds are simple and easy to understand, which greatly facilitates customers. During the pressing process, limit contactors can be installed according to customer requirements to enhance production safety and quality. Technical parameter No Model YST-300 1 Work pressure 300T 2 The maximum itinerary for the upward rush 150MM (can be modified according to the actual product) 3 Packing height According to the product compression ratio 4 Output Four times per minute 5 Motor power 22KW, 380V, Siemens 6 Size 2300 * 1800 * 2700 7 Weight 8000kg 9 Hydraulic system The hydraulic system adopts the brand Xutian from Taiwan Xuzhan Company, including valve blocks

500T Four Column Hydraulic Powder Press Machine For Industrial Production

500T Four Column Hydraulic Powder Press Machine For Industrial Production Introduction YST series tablet press is our newest generation R&D result into the market, also it is one of the most advanced tablet forming machine. Compared with the common tablet press machine, its main advantages lies in: 1.Superior performance: It solved many difficulties in: forming, fling, wear-resistant, high strength production. 2.Easily operation: The whole machine can fully CNC operation, production debugging operated through PLC touch screen. It can cut the cumbersome process in great scope, and make the operation more simple. 3.Save the cost: Adopt high advanced YST series tablet press machine, it can save the electricity about 50%, and improve the capacity nearly 30% which compared under the same operating, conditions. YST-500T type machine is a large-scale tablet press newly developed by our factory. It can press granular and powdered raw materials into various common and special-shaped tablets. It is suitable for pressing large-scale products with high density requirements. At the same time, it can produce multiple tablets in one mold and is applicable to large-scale production industries. The equipment has high precision and the mold replacement and installation are convenient and easy to learn. High degree of automation. All actions are controlled by a microcomputer PLC and operate continuously and automatically. The pressing time, pressure and product thickness can be appropriately adjusted. Ensure stable product pressure, consistent density and small dimensional error. The entire hydraulic system adopts imported hydraulic components, which ensures higher stability and avoids problems such as oil leakage, easy oil dirtiness, insufficient pressure, and asynchronous and continuous actions. The working part and the hydraulic system part are separated and independent, causing no pollution. It features automatic heat dissipation, reducing equipment wear and tear. It is necessary to undertake the hydraulic oil and circulating cooling water devices required for the operation of the equipment, as well as the working power supply of the equipment. Technical parameter No Model number YST-500T 1 Work pressure 500T, adjustable from 50 to 500 tons. It can press tablets in both directions. The pressure can be directly displayed on the oil gauge through the regulating valve. The operation is convenient and simple, and it can maintain long-term pressing at 500 tons. 2 Stroke The upper cylinder stroke is 300mm and the lower cylinder stroke is 350mm. 4 The maximum itinerary for the upward rush 150mm 5 Downward rush stroke 100mm (Customized according to the thickness of the customer's product, adjustable within a certain range.) 6 Filling height 100mm(customizable according to product height) 7 Production volume 3-4 molds per minute, multiple pieces per mold (according to customer requirements) 8 Motor power Siemens 22KW, 380V 9 Appearance The equipment is integral and fully enclosed with stainless steel 10 Size 2800*1900*3200(mm) length * width * height, subject to actual dimensions. 10 Weight 12000kg 11 Note Hydraulic system: Taiwan Xutian PLC: Wuxi Guangyang Motor: Siemens Electrical appliances: Schneider Switch: Omron

63 Ton Automatic Hydraulic Powder Pellet Press Machine

63 Ton Automatic Hydraulic Powder Pellet Press Machine  Technical parameter Production capacity 4-6 molds/min (the actual production capacity according to product process requirements) Working pressure 63T PLC one-click adjustment Working stroke Upper stroke 200mm, lower stroke 100mm (can be customized) Filling depth 150mm (can be customized) Product mold (can be customized) Applicable shape (can be customized) Power supply 11KW (servo) Weight & Size 3000kg, L2500*W1000*H2500 mm (reference only)

10T-100T CNC 4 Post Servo Hydraulic Press Machine

10T-100T CNC 4 Post Servo Hydraulic Press Machine   Introduction The function of the equipment: press-fitting The power source of the equipment: It is powered by a fluid pressure of 25MPA, with a total power of 5.5KW Equipment structure: Four-column structure.   Working conditions 1. Working environment: Ambient temperature -10 to 45℃, relative humidity 40 to 80% 2 Power supply voltage: AC380V (±10%), frequency 50HZ (±1HZ), three-phase five-wire 3 The maximum working pressure of the liquid is 21MPA. When the room temperature is 35℃, the continuous working oil temperature does not exceed the set 65℃ 4 Use high-quality #46 hydraulic oil   Main technical parameter (30T press parameter) No Parameter Unit Vaule Note 1 Output range of the oil cylinder Tf or KN 5-30 or 50-300 2 The maximum working pressure of the oil pump MPA 21 3 The maximum working height of the sliding speed and the lower working face MM 400 4 Cylinder stroke MM 300 5 The minimum working height of the sliding speed and the lower working face MM 100 6 Effective area of the lower workbench (left and right * front and back) MM 500*400 T-slot clamping 7 Effective area of the upper working surface (left and right * front and back) MM 500*400 T-slot clamping 8 Throat depth MM 200 9 The height of the lower working face from the ground MM 900 10 The descent speed of the slider MM/S 150 11 The feed speed of the slider MM/S 1—20, adjustable 12 The rebound speed of the slider MM/S 150 13 Motor power KW 5.5KW 14 The total weight of the equipment is KG 2000 15 Repeatability accuracy of equipment pressure ±1% 16 Minimum display unit of pressure KN 1 17 Minimum display unit of displacement MM 0．01 18 The display accuracy of the downward press is MM ±0.01 19 Pressing down shows the repeat positioning accuracy as MM ±0.03 20 The sampling speed of the system for the force sensor Times/s 2000 21 Safety light curtain protection height MM 300 22 Holding pressure time MIN 0-5s 23 Parallel accuracy of the upper and lower working surfaces MM Within 0.15

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine

3T-10T Small Benchtop Single Column Servo Hydraulic Stamping Press Machine Introduction This series of hydraulic presses are widely used in press fitting, assembly, punching, embossing,shaping,riveting of various materials. Bending, shearing, stretching, press fitting and assembly of various small parts.lt is a multi-purpose. Press. C-type hydraulic press, simple structure, light weight, can be placed on the workbench or production line. Features 1. Adjustable hydraulic cylinder for precise positioning of the press-fit stroke. 2. The slider is controlled by up and down timers, which is easy to operate and easy to maintain 3. The pressure adjustment range is wide, and the minimum output can be adjusted to 500kgf. 4.With manual automatic two working modes. 5.Optional rack placement. 6.Can be customized according to customer requirements. Technical parameter Model BSW03-3T BSW03-5T BSW03-10T Nominal pressure(T) 3 5 10 Maximum working pressure of liquid(Mpa) 21 21 1 Surface height mm 800 800 800 Maximum opening distance mm 300 300 300 Maximum stroke (mm) 200 200 200 Workbench size Left and right mm 350 350 500 Before and after mm 250 250 300 Speed Rated load speed mm/s 85 85 85 Working speed mm/s 85 85 85 Main frame size mm 500x600x1200 500x600x1230 600x700x1430 Power (KW) 2.2 2.2 2.2

5T-20T Automatic Upper Oil Lower Electric Hydraulic Servo Press Machine

5T-20T Automatic Upper Oil Lower Electric Hydraulic Servo Press Machine   Introduction The upper oil lower electric powder forming machine adopts a 3R mold changing and positioning system. The servo motor drives the lead screw to drive the upper punch, mother mold and lower punch to move up and down with high precision. The powder is injected into the female mold through the hopper, material pipe and material shoe to achieve fully automatic functions such as powder pressing and forming, demolding, material picking and tray loading. Equipment forming speed: 1-30 revolutions per minute; Forming accuracy: ≤0.02mm; Repeatability accuracy: ≤0.005mm; Drive mode: Pure electric, oil on top and electricity at the bottom. Formwork structure: top one bottom one, top one bottom two, top one bottom three, top two bottom two, top two bottom three, top two bottom four; All parameters can be customized as needed. Features 1) The powder is formed by the servo motor driving the lead screw to rotate the upper punch, the mother mold and the lower punch to move up and down. The product has uniform density, uniform size and stable weight. 2) It features a reasonable structure, stable performance, firm operation, reliable durability, high working accuracy and high efficiency. 3) High-definition LCD screen, user-friendly human-machine interface, precise control, intuitive and simple operation, and convenient maintenance. 4) Safety: The moving parts adopt a fully enclosed design to eliminate operational safety hazards and ensure no blind spots in safe production. 5) Environmental friendliness: The entire machine adopts a fully dust-proof design, is easy to clean, has no oil or powder leakage, and generates low noise. 6) The guide sleeve parts of the equipment are automatically oiled to ensure no grinding occurs, and the oil injection pump automatically alarms when it is short of oil. Application This product is widely used in the following industries: 1. Hard alloys: tungsten carbide, tungsten oxide, etc. 2. Ceramic powders: alumina, zirconia, silicon carbide, silicon oxide, etc. 3. Magnetic materials: manganese-zinc ferrite, nickel-zinc ferrite, neodymium iron boron, aluminum-iron-boron, iron-silicon-aluminum, etc. The products are applied in industries such as inductor cores, integrated inductors, semiconductors, communication base stations, various power supplies, consumer electronics, medical care, industrial electronics, construction machinery, electric vehicles, and new energy (photovoltaic, energy storage, wind power). Technical parameters Model FM-5T FM-10T FM-15T FM-15T FM-20T FM-20T Maximum pressure (T) 5 10 15 15 20 20 Maximum demolding force (T) Concave mold 5 5 8 8 10 8 Second stroke / 4 / 7 6 / Maximum filling depth (mm) Concave mold 30 50 50 50 60 50 Excess material/shortage (mm) 0-5 0-5 0-5 0-5 0-5 0-5 Upward stroke (mm) 150 150 150 150 150 150 Upward stroke adjustment (mm) 30 30 30 30 30 30 Die surface adjustment allowance (mm) 5 10 10 10 10 10 Maximum forming speed (S.P.M) 8-35 8-35 8-35 8-35 8-35 8-35 Motor power (KW) Upstroke servo motor 5.5 11 15 15 15+Reducer 15+Reducer Downstroke servo motor 4.4 2.9 7.5 7.5 4.4+Reducer 7.5 Lower two-stroke servo motor / 2.9*2 / 5.5*2 4.4*2 / Feeding servo motor 0.4 0.4 0.4 0.4 0.4 0.4 Machine weight (T) 1.7 2.2 2.5 3.2 6.5 6.5 Machine dimensions (mm) Length 1150 1150 1150 1150 1250 1250 Width 1150 1150 1150 1150 1550 1550 Height 2350 2420 2850 3300 3450 3450

1T-12T CNC Precision Servo Electronic Press Machine

1T-12T CNC Precision Servo Electronic Press Machine   Introduction The servo press, also known as the CNC servo electronic press or precision electric cylinder press-fitting machine, is abbreviated as the electronic press. Its working principle is that the servo motor drives the high-precision ball screw to perform precise pressure assembly operations, and the entire process realizes the closed-loop control of the press-fitting force and the press-in depth. It can also be configured with functions such as heating, real-time pressure curve display, multi-station, scanning code, and automation.   Product features 1. The position control accuracy of the common electric cylinder is ±0.01mm, and that of the new type of electric cylinder is ±0.001mm 2. The speed of a common electric cylinder is 30 to 50mm/s, while that of a new type of electric cylinder is over 100mm/S 3. The new type of electric cylinder adopts direct drive technology, reducing energy consumption by 30% without a reducer   Equipment application: 1) Assembly, forming and riveting of precision components 2) Stamping blanking of films, metal sheets and plastics   Scope of application Applicable industries: automotive industry, motor industry, electronics industry, new energy industry, etc Technical parameter Item Unit EPC Single column/EPC 4 column Rated output (press-fitting force) T 0.448 1 2 3.5 6.12 9 13 Maximum force (punching force) T 1.2 2 4.5 7 12 18 26 Motor power KW 00.93 1.2 2.3 3.7 6 9 6 Lead screw diameter mm 40 50 80 Equipment speed Maximum fast-forward speed mm/s 1-330 1-250 1-250 1-250 1-200 1-200 1-200 Maximum working speed mm/s 1-165 1-125 1-125 1-125 1-100 1-100 1-100 Control accuracy mm Control accuracy 0.008/ Repeatability accuracy 0.001 Maximum opening height mm 350 400 450 500 The upper slider stroke mm 180 230 285 310 390 425 390 Dimensions of the lower worktable Left and right (inside the column mm 500 500 600 600 Front and back (including columns mm 400 400 500 500 The height of the workbench from the ground mm 750 750 750 750 Optimize the external dimensions mm ～650 ～650 ～750 ～750 Front and rear external dimensions mm ～550 ～550 ～650 ～650

100T-400T Automatic Single/Double Workstation Vacuum Hot Press Machine For Carbon Fiber Forming

100T-400T Automatic Single/Double Workstation Vacuum Hot Press Machine For Carbon Fiber Forming   Introduction The fiber vacuum hot press, also known as the fiber vacuum hot press forming machine, adopts a servo oil circuit system, which is low-noise, energy-saving and environmentally friendly. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within ±3 degrees, ensuring the stability of the hot pressing temperature and significantly improving the product yield. It can be equipped with a mold temperature control machine function. Applicable materials 1. Fiber materials: Forming of decorative parts such as carbon fiber and glass fiber. 2. Composite materials: PC/PMMA/ABS and other composite board film sheet forming. 3. Insulation materials: Molding of insulating and heat-insulating materials such as aerogel, cold gel, silicone, PET, and filter elements. Note: The industry applications of the product are as follows. Features 1. It adopts a servo system, which is low-noise, energy-saving and environmentally friendly. It can reduce electricity consumption by up to 46%, generate less heat and operate at a low oil temperature (within 50 degrees), which can extend the service life of the hydraulic press and reduce production costs. 2. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within ±3°C, ensuring the stability of the hot pressing temperature and significantly improving the product yield. 3. The equipment structure features a four-column and three-plate structure, without oil-free bushings for guidance, to achieve a parallelism of ±0.03mm between the upper and lower heating plates. . 4. The vacuum hood is used for vacuuming, with a vacuum negative pressure value of 0.1kpa. It features automatic vacuuming, automatic pressure holding, automatic pressure replenishment, and automatic vacuum breaking functions. 5. The heating plate is made of high-quality die steel for heat treatment and ground to achieve a flatness of 0.05mm. 6. The oil pump is driven by a servo motor, controlled by PLC, and combined with pressure sensors and displacement sensors for closed-loop control. It can be made into segmented pressure, time and stroke control, and can be divided into three or more segments. This product is widely used in the following industries: 1. Mobile phone industry: Front and back covers for 2.5D/3D/3.5D mobile phones, full-coverage mobile phone cases. 2. Automotive industry: Interior and exterior trims, buttons, instrument panels, touch panels, smart Windows. 3. Panel industry: Decorative panels for tablets, laptops, medical devices, home appliances and kitchen appliances, smart locks, etc. 4. Electronics industry: Drones, VR/AR glasses, smartwatches, wristbands, switches, keyboards. 5. Fiber materials: Decorative parts made of fiber materials such as carbon fiber and glass fiber, like helmets, etc. 6. Insulation materials: aerogel, cold gel, silicone frame, PET, filter element and other insulation and heat insulation materials. 7. Composite materials: PC/PMMA/ABS and other film composite plates Technical parameter Item Unit 100T 200T 300T 300T 400T Master cylinder clamping force T 100 200 300 300 400 Master cylinder stroke mm 300 400 400 400 400 The maximum pressure for the liquid in the main cylinder Mpa 21 21 21 21 21 Return stroke force KN 80 50 80 30 30 The distance between the movable beam and the workbench Max. mm 500 600 450 400 400 Min. mm 200 200 50 0 0 Slider speed Rapid decline mm/s 130 150 120 120 250 Working speed mm/s 20 20 20 20 20 Fast return journey mm/s 150 125 100 120 120 Effective area of the heating plate mm 500*580 1200*1200 600*600 600*600 750*750 The height of the workbench from the ground mm 1075 1387 1315 1315 1114 Motor power KW 16 25 25 16*2 30 Maximum temperature ºC 200 200 200 300 300 Machine weight KG 4000 5000 7000 15000 18000

5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry

5T-60T Compact Flat Hot Laminate Press Molding Machine For IMD Industry   Introduction The hot press forming machine adopts a four-column and three-plate open space. The four columns are combined with precision sewn guide sleeves. It is a professional equipment developed for the IMD industry (in-mold decorative inlay injection molding technology) and the forming of film, PET, PVC and other sheet materials. It uses far-infrared radiation to uniformly heat the sheet materials, and then through a constant temperature device, the oil cylinder pressure makes them instantly formed. This machine can be used for both forming and punching by simply changing the mold. Scope of application Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP4, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Other industries: computer industry, communication industry, medical devices, cosmetic boxes, decorative boxes, toys, etc Features The maximum speed of this machine can reach 250MM per second, while the impact noise does not exceed 80 decibels, which is equivalent to a normal conversation in an office. The carbon fiber heating tube with rapid heating, small thermal lag and uniform heat generation has a lifespan (continuous point burning) of no less than 6,000 hours. Long-term operation of this machine by staff can enhance blood circulation in the human body, accelerate metabolism and boost immunity. This machine can be used for both forming and punching by simply changing the mold. The heating element of this machine is fully enclosed with heat insulation cotton on all sides. When in standby mode, the external radiation power only accounts for 10% of the heating power. The external radiation power of the conventional IMD hot press forming machine in the market is as high as 50%. In the hot summer, 10 units of 4KW conventional IMD equipment need to be equipped with 10 units of 5P air conditioners. And our hydraulic IMD equipment only requires two units. Application This product is widely used in the following industries: Home appliance industry: control decorative panels for rice cookers, washing machines, microwave ovens, air conditioners, refrigerators, etc. Electronics industry: MP3, MP5, VCD, DVD, calculator, electronic notepad, digital camera and other facial mask cases and nameplates; Automotive industry: instrument panels, air conditioning panels, interior parts, headlamp housings, logos, etc. Computer industry: keyboards, mice, face cases; Communication industry: mobile phone keys, mobile phone lenses, mobile phone color shells, PHS and landline phone panels, window lenses; Other industries: medical devices, cosmetic boxes, sports and entertainment products, etc. Technical parameters Model 109S-5T 109S-10T 109S-20T 109S-30T 109S-50T 109S-60T Nominal force (T) 5 10 20 30 50 60 Maximum hydraulic working pressure (MPa) 7 21 21 21 21 21 Back stroke force (mm) 5 3.1 3.1 4 5.1 5.1 Height of table above floor (mm) 780 780 780 780 780 780 Biggest operational height (mm) 300 400 400 400 400 400 Maximum stroke of the ram (mm) 200 300 300 300 300 300 Dimensions of table (mm) Left-right 450 600 600 800 1000 1200 Front-back 350 450 450 600 600 700 Speed of slider (mm/s) Speed of down ≥100 ≥150 ≥150 ≥188 ≥178 ≥178 Working speed ≥100 ≥24 ≥24 ≥19 ≥14 ≥14 Speed of returning ≥100 ≥126 ≥126 ≥125 ≥116 ≥116 Heating effective area Left-right 330 550 550 700 900 1170 Front-back 300 400 400 550 550 650 Heating pipe length Total length 310 360 360 460 460 560 Dimension 700*1100*2040 900*1300*2080 900*1300*2080 1100*1700*2130 1300*1700*2480 1550*1900*2630 Motor + heating = power (KW) 2.2+3=5.2 2.5=2+6=8.2 2.2+6=8.2 2.2+7.5=9.7 3.7+10.5=14.2 3.7+13.5=17.2

100T-200T IMD High-Pressure Servo Heat Press Forming Machine

100T-200T IMD High-Pressure Servo Heat Press Forming Machine   Introduction The IML/IMD high-pressure forming machine, also known as the high-pressure gas forming hot bending machine or vacuum hot pressing forming machine, integrates the functions of oil pressure, servo, air pressure, and IR hot pressing forming. It heats the sheet material by closing the mold, and the gas is pressed down in sections. The lower mold cavity is evacuated to achieve three-dimensional film forming. It can achieve segmented pressurization, segmented heating and curve temperature rise. It can be equipped with a mold temperature control machine function. Applicable materials 1. Fiber materials: Forming of decorative parts such as carbon fiber and glass fiber. 2. Composite materials: PC/PMMA/ABS and other composite board film sheet forming. 3. Insulation materials: Molding of insulating and heat-insulating materials such as aerogel, cold gel, silicone, PET, and filter elements. Features 1. It adopts a servo system, which is low-noise, energy-saving and environmentally friendly. It can reduce electricity consumption by up to 46%, generate less heat and operate at a low oil temperature (within 50 degrees), which can extend the service life of the hydraulic press and reduce production costs. 2. The unique heating system device can control temperature and pressure in sections and zones. The overall temperature difference can be controlled within 4 degrees, ensuring the stability of the hot pressing temperature and significantly improving the yield of the products. 3. Through precise design, the volume of the equipment has been significantly reduced, occupying a smaller area. With the same space, more equipment can be placed, and it can also be placed on the second floor. 4. It can heat up and cool down quickly without the need for telescopic trays, greatly improving production efficiency. 5. The equipment is equipped with a baking tray with ceramic heating bricks, which can instantly heat special diaphragms to 200°-300°, saving baking time and increasing production capacity. 6. The lower mold can be externally connected to an oil temperature control machine to ensure that the temperature of the lower mold remains stable at ±3°, thereby guaranteeing the yield of the product. This product is widely used in the following industries: 1. Mobile phone industry: Front and back covers for 2.5D/3D/3.5D mobile phones, full-coverage mobile phone cases. 2. Automotive industry: Interior and exterior trims, buttons, instrument panels, touch panels, smart Windows. 3. Panel industry: Decorative panels for tablets, laptops, medical devices, home appliances and kitchen appliances, smart locks, etc. 4. Electronics industry: Drones, VR/AR glasses, smartwatches, wristbands, switches, keyboards. 5. Fiber materials: Decorative parts made of fiber materials such as carbon fiber and glass fiber. 6. Insulation materials: Aerogel, cold gel, silicone, PET, filter elements and other insulation and heat insulation materials. 7. Composite materials: PC/PMMA/ABS and other film composite plates. Technical parameter Industry model Mobile phone industry General industry Dual-station model Nominal pressure (T) 100 100 200 Maximum working pressure of the liquid ≤21 ≤21 ≤21 Return force (T) 5T 5T 30 Height of the rack surface from the ground (mm) 1150 1150 1150 Maximum opening distance (mm 500 600 600 Maximum stroke of the slider (pressure head) 300 400 400 Effective area of the workbench Left &right 580 800 1300 Front&back 630 500 700 Slider pressure head speed Upward speed ≤130 ≤130 100 Working speed ≤14 ≤14 15 Return speed ≤180 ≤180 120 Host dimensions (mm) 1280*1430*2300 1530*1600*2400 2260*2080*2400 Servo motor power (KW) 16KW 16KW 34KW

Automatic Rotary Pharmaceutical Tablet Press Machine For Pill Mass Production

Automatic Rotary Pharmaceutical Tablet Press Machine For Pill Mass Production   Introduction  Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements. Technical parameter Model ZP-11D ZP-15D ZP-17D ZP-19D ZP-21D Molding qty 11 15 17 19 21 Digital display adjustment Anti-misoperation digital display adjustment Turntable High hardness, heat resistance, wear resistance and stability Pressure (KN) 100 80 60 60 60 Pressing dia (mm) 40 25 20 13 12 Filling depth (mm) 28 15 15 15 15 Tablet thickness (mm) 10 6 6 6 6 Turntable speed (rpm) 20 30 30 30 30 Production (pcs/h) 13200 27000 30600 34200 37800 Power (KW) 3.0 Power supply 220V/380V

5T-20T Laboratory Manual Hydraulic Rubber Vulcanizing Press Machine

5T-20T Laboratory Manual Hydraulic Rubber Vulcanizing Press Machine   Introduction The 6014H series manual hydraulic flat vulcanizing press is a major equipment used for pressing and forming various rubber model products and non-model products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It has an independent power mechanism and electrical system, which are centrally controlled by buttons. The working pressure and heating temperature can both be adjusted within a certain range   Technical parameter Model 6014H-5 6014H-10 6014H-20 Pressure capacity 5T 10T 20T Pressure gauge The hydraulic gauge is manually controlled for pressure Pressure plate size (mm metric) 250*250/300*300/350*350/400*400/450*450/500*500 mm Material of hot press plate High-temperature resistant imported steel plate, surface carbonized and quenched, special treatment for fast heat conduction, no deformation under parallel pressure, wear-resistant Hardness of the pressure plate 50~60HRC Flatness of the pressure plate ≤ 0.03 mm Flatness of the pressure plate ≤ 0.16 mm Temperature range Room temperature -250℃ [Customizable maximum temperature: 500 ℃] Temperature uniformity 1.5℃ [The larger the pressure plate, the higher the temperature and the worse the temperature uniformity.] Temperature controller Two Omron temperature controllers Temperature control method PID self-tuning in combination with high-precision sensors ensures temperature control accuracy of ±1.0℃. Timer The LED time range is 0.1s - 99 minutes - 9.9 hours Heater The heating mold is built-in cylindrical Heating time It takes approximately 15 minutes from room temperature to 160℃ Two hot plates The temperature of the hot plate can be set separately Heating method Electric heating Cooling method Natural cooling Cylinder stroke Max 100mm [customizable Cylinder speed 5mm/s [Manual] Pressure gauge 0~200kg/sq.cm Mold opening method Manual ascent and descent Host volume (mm) 400x550x600 500x550x600 550x550x600 Power supply voltage 3 phase, AC220V 3 phase, AC220V 3 phase, AC220V Overall weight of the machine About 150kg About 270kg About 350kg

20T Rubber Molding Curing Press Vulcanizer Machine

20T Rubber Molding Curing Press Vulcanizer Machine   Introduction The ZB-910 small-scale experimental vulcanizing machine can be used for vulcanization or molding of rubber products, plastics, composite materials and other synthetic materials, and can also be used for pressing standard test pieces for tensile, impact and other tests. This equipment features convenient operation, small floor space and low energy consumption. It is particularly suitable for use in factories and school laboratories without three-phase power supply.   Advantage The machine is lightweight and only requires a regular single-phase power supply. Its installation and operation are relatively simple. The pressure gauge shows the pressure, which can be adjusted freely within the range of 0 to 20MPa. The thermometer shows the temperature, and the temperature within the range can be set arbitrarily.   Technical parameters Nominal clamping force 0.2MN (i.e., 20 tons) Hot plate size 300*300mm Hot plate spacing 120mm Number of working floors Single layer Temperature range RT-250℃ (can be customized) Temperature fluctuation ±2%℃ Maximum hydraulic pressure 20MPa Total power 4KW Loading method Manual loading Power Supply 220V 50Hz Dimensions 450*450*1000mm Net weight Approximately 220Kg

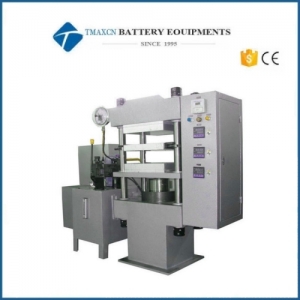

25T Silicone Flat Press Moulding Vulcanizing Machine

25T Silicone Flat Press Moulding Vulcanizing Machine   Applications The ZB-910 small flat vulcanizing machine is suitable for pressing various molded products, such as rubber and plastic, and is also applicable to thin sheet products.   Performance characteristics The main unit is of a four-column integral structure, with an upward pressing type. It is divided into three parts: the main unit, the oil tank and the electrical control box. The electric heating is controlled by an automatic temperature controller in three channels, which can be adjusted freely within the range of 20 to 200 degrees. Once the temperature is reached, the circuit can automatically maintain a constant temperature. After the set vulcanization time is achieved, an automatic alarm will sound.   Main Technical Nominal clamping force 0.25MN (i.e., 25 tons) Hot plate size 350*350mm Hot plate spacing 150mm Number of working layers 2 layers Maximum hydraulic pressure 14.5MPa Maximum stroke of the plunger 250mm Heating power 7.2KW Motor power 2.2KW Dimensions 1250x550x1420 mm Net weight Approximately 1T Note This equipment requires 25 liters of 46# hydraulic oil, which should be prepared by the user.

40T-600T Automatic CNC Hydraulic Bending Machine Torsion-Bar Press Brake

40T-600T Automatic CNC Hydraulic Bending Machine Torsion-Bar Press Brake   Features The main machine adopts the structure of series WC67Y hydraulic press brake High precision,high efficiency CNC Torsion Bar Synchro Press Brakes Holistic welding structure Stabilizes left and right balance with help of the mechanical Torsion Bar Back gauge is drove by servo motor and performance Ball screw and linear guide   Technical parameter Specification can be customized as your actual needs! Model Nominal force Worktable length Columns distance Throat depth Slider stroke Max. height Power Dimension Unit KN mm mm mm mm mm KW L*W*H, mm 40T/2200 400 2200 1870 230 100 320 4 2200*1200*1900 40T/2500 400 2500 1960 230 100 320 4 2500*1200*1900 50T/2500 500 2500 1960 230 100 320 5.5 2500*1200*2000 63T/2500 630 2500 1960 250 120 320 5.5 2500*1300*2210 63T/3200 630 3200 2600 250 120 320 5.5 3200*1300*2210 80T/2500 800 2500 1960 300 120 320 7.5 2500*1400*2300 80T/32000 800 3200 2600 320 120 350 7.5 3200*1500*2300 80T/4000 800 4000 3160 320 120 350 7.5 4000*1500*2400
