Medium Speed Type Automatic Continuous Tablet Powder Press Machine With 90000pcs/H Production

Medium Speed Type Automatic Continuous Tablet Powder Press Machine With 90000pcs/H Production   Introduction ZP-27D is the Fourth Generation automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. maximum press diameter 25mm, maximum capacity 90,000pcs/h, maximum depth of filling 35mm, it is suitable for pressing that material that is difficult formed into tablet, meet the requirements of cGMP production.   Main Features High efficiency and high cost performance. This machine adopts double pressure, with 27 sets of molds, maximum press diameter is 25mm,maximum pressure is 120kn,maximum capacity is 90,000 pcs/h,maximum depth filling is 35mm. It meets the requirements of cGMP.The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular castiron and strictly implemented for 12 months,which is hard, wearable, non-toxic and smooth,which fullymeets the requirements of cGMP. The design adds an overall Parallel movement system for the punches, which moves the position of the upper and lower main pressing wheels at an equal distance as a whole to realize the movement of the tablet forming position and extend the service life of the machine and punches.   Technical parameters Model ZP-27D Dies No. 27 Max. Capacity (pcs/h) 90000 Max. Pressure (KN) 120 Max. Dia. Of tablet (mm) 25 Max. Depth of filling (mm) 35 Max. Thickness of tablet (mm) 17

60000pcs/H Automatic Double Color Pill Tablet Pressing Compressor Machine

60000pcs/H Automatic Double Color Pill Tablet Pressing Compressor Machine   Introduction ZP-25/55D is a sixth-generation automatic rotary tablet press that continuously presses powders and granules into round tablets, special-shaped tablets, two-color tablets, and ring tablets. It has the advantages of high pressure and easy operation. It is also a suitable model for materials that are difficult to press and corrosive materials, and meets cGMP production requirements.   Main Features Meet cGMP requirements. The entire shell is made of stainless steel, and the tablet pressing chamber is isolated from the external environment by organic glass, with good sealing performance. All parts of the tablet pressing chamber that come into contact with the drug meet the requirements of "non-toxic, odorless, and anti-corrosion". The turntable is made of ductile iron QT50o, pressed by solid rods, with strong hardness, corrosion resistance,heat resistance,wear resistance,and good system stability. This tablet press has a turntable with double dust suction, six upper and lower dust suction ports, good powder removal effect, and a clean turntable surface. Low noise. The upper and lower rails are made of cast steel GCr15, with scientifically designed arc and angle of the rails, large-angle linear structure, smooth mold operation,and low noise.   Technical parameters Model 25D 41D 55D Molding qty 25 41 55 Production (pcs/h) 60000 140000 160000 Pressing diameter (mm) 30 13 9 Pallet thickness (mm) 15 6 6 Max. pressure (KN) 100 80 80 Max. Depth of filling (mm) 30 15 15

165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine

165000pcs/H High Speed Automatic Rotary Tablet Press Forming Machine   Introduction ZP-26/40D is a seventh-generation fully automatic high-speed tablet press that continuously presses powders and granules into round tablets, special-shaped tablets, two-color tablets, and ring tablets. It is an industrial 4.0 version of the intelligent tablet press that integrates automatic adjustment of powder filling volume, real-time pressure monitoring, recycling of excess powder, and rejection of single tablets, and meets cGMP production requirements.   Main Features Automatic tablet weight adjustment system. The servo motor controls the filling track without handwheel adjustment. The system can automatically increase or decrease the filling amount according to the set value, and the average tablet weight accuracy is <±2%. The real-time online detection and rejection system to automatically identify and promptly reject products with unqualified tablet weight, which can achieve continuous rejection and accurate single-piece rejection. The machine has extremely high processing accuracy, fast running speed and low noise. The turntable runout is <0.04mm, the upper and lower mold hole diameter tolerance is<0.013mm, the surface roughness is <0.8um, the middle mold hole diameter tolerance is <0.017mm, and the production qualified product rate is 10o%. Material loss is <1%. Technical parameters Model 26D 32D 40D Molding qty 26 32 40 Production (pcs/h) 165000 210000 260000 Pressing diameter (mm) 25 16 13 Pallet thickness (mm) 10 9 9 Pre-pressing pressure (KN) 20 20 20 Main pressing pressure (KN) 100 80 80

200000pcs/H High Production Automatic Multi-Punch Rotary Tablet Press Machine

200000pcs/H High Production Automatic Multi-Punch Rotary Tablet Press Machine   Introduction The multi-punch tablet press is a new type of intelligent tablet press developed by our company. It features high pressure, easy operation and maintenance. The multi-punch rotary tablet press is suitable for the pharmaceutical, chemical and food industries. The multi-punch tablet press can press pharmaceutical tablets, tablets and health products. The stainless steel rotary tablet press has stable tablet weight and sensitive adjustment. The medium-sized tablet press equipment has high precision and smooth operation. The mold, hopper, feeding device, tablet discharge port, scraper and other components of the granular tablet press are easy and quick to disassemble, and are easy to clean and maintain. The equipment is well-configured, with excellent performance of the core components, a long service life and few malfunctions.   Application It is applicable to industries such as pharmaceuticals, health products, food, and daily chemicals.   Technical parameter Model ZP-45 Structured and modular design Easy to disassemble, maintain and replace. Output 200000 pcs/h Raw materials suitable for pressing Powder, granules The types of tablets that can be compressed Circular, irregular, two-color and ring-shaped Maximum pressure 100KN The maximum diameter of tablets that can be compressed 13mm, special-shaped piece 16mm Maximum tablet thickness 8mm Comply with GMP requirements Non-toxic, odorless and anti-corrosion handwheel adjustment Accuracy The sensitivity reaches 0.1mm Power supply 380/220V 50Hz Power 5.5KW Weight 1800kg Size 1100*940*1755 mm

130000pcs/H Automatic Rotary Tablet Press Machine

130000pcs/H Automatic Rotary Tablet Press Machine   Introduction Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements.   Technical parameter Model ZP-35 Tablet pressing pressure, pre-pressing 80KN Tablet diameter 16mm Compressible tablets Circular, irregular, two-color, ring-shaped Compressible materials Powder or granules Filling depth 20mm Max. tablet thickness 6mm Production capacity 130000 pcs/h Motor power 4KW Voltage 380V/220V/50Hz Size (mm) 1040*910*1690 Weight 1400kg

Automatic Pharmaceutical Tablet Making Press Rotary Compression Machine

Automatic Pharmaceutical Tablet Making Press Rotary Compression Machine   Introduction Tablet presses can continuously press powder or granules into round tablets, irregular-shaped tablets, two-color tablets, ring-shaped tablets, etc. They are the preferred products for large-scale production in pharmaceutical, chemical, electronic, food and other enterprises, and meet GMP production requirements.   Technical parameter Model ZP-51D ZP-65D ZP-83D ZP-99D Number of dies 51 65 83 99 Tablet pressing pressure, pre-pressing The main pressure is 150kn, and the pre-pressure is 150kn The main pressure is 150kn, and the pre-pressure is 150kn The main pressure is 150kn, and the pre-pressure is 150kn The main pressure is 150kn, and the pre-pressure is 150kn Tablet diameter 25mm 16mm 13mm 10mm Compressible tablets Circular, irregular, two-color, ring-shaped Circular, irregular, two-color, ring-shaped Circular, irregular, two-color, ring-shaped Circular, irregular, two-color, ring-shaped The filling track is controlled by a servo motor The average sheet weight accuracy is ≤±2% The average sheet weight accuracy is ≤±2% The average sheet weight accuracy is ≤±2% The average sheet weight accuracy is ≤±2% Compressible materials Powder or granules Powder or granules Powder or granules Powder or granules Filling depth 20mm 18mm 18mm 18mm Tablet thickness 1-8mm 1-8mm 1-8mm 1-8mm Turntable speed 10-80 rpm 10-80 rpm 10-80 rpm 10-80 rpm Production capacity 470000 pcs/h 620000 pcs/h 790000 pcs/h 950000 pcs/h Motor power 11KW 11KW 11KW 11KW Voltage 380V/220V/50Hz 380V/220V/50Hz 380V/220V/50Hz 380V/220V/50Hz Size (mm) 1310*1305*2010 1310*1305*2010 1310*1305*2010 1310*1305*2010 Weight 5510 kg 5510 kg 5510 kg 5510 kg

Air Press Orbital Riveting Machine With Foot Pedal For Hardware Parts Riveting

Air Press Orbital Riveting Machine With Foot Pedal For Hardware Parts Riveting   Application It is applicable to various hardware accessories, mechanical parts, sports equipment, travel products, hardware tools: such as the riveting of solid rivets or hollow rivets with pliers, etc   Technical parameter Riveting ability Solid φ1-6 mm The length of the rivets 150mm Deep throat 120mm Horsepower 1/2HP Maximum pressure 200-800kg Mechanical height 940-1050mm Working area 190*320mm Net weight 120kg

Oil Press Orbital Riveting Machine With Two-Stage Height Adjustment System

Oil Press Orbital Riveting Machine With Two-Stage Height Adjustment System   Introduction The steel plate body is sturdy in structure with a low center of gravity. It is equipped with a two-stage height adjustment device and a large cooling system, which makes the oil temperature less likely to rise and the pressure less likely to decline. The two-stage speed design of the chuck stroke ensures higher production capacity. It has a large output force and strong riveting ability, with the maximum strength of rivets reaching up to 20mm.   Technical parameter Riveting ability Solid φ3-20 mm The length of the rivets 400mm Deep throat 200mm Horsepower 5HP Maximum pressure 1400-5500kg Mechanical height 1800mm Working area 160*260mm Net weight 580kg

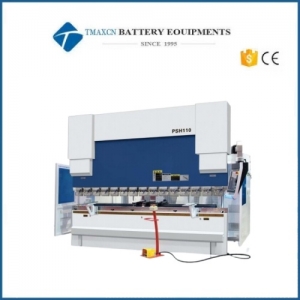

50T-320T Automatic Electro-Hydraulic Bending MachineCNC Press Brake

50T-320T Automatic Electro-Hydraulic Bending MachineCNC Press Brake   Features The machine is in an overall welding and overall processing structure, and the main parts of machine are all analyzed by ANSYS finite element analysis software, which has ensured the reliability of machine and the precision of entire machine. The CNC control system adopts Netherland DELEM, ltalian ESA, or Swiss CYBELEC products, which can achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion, extending length of workpieces, bending pressure for bottom bending,open distance, and automatic withdrawal of rear stopper, etc   Technical parameter Specification can be customized as your actual needs! Model 50T1600 80T2500 110T2500 110T3200 110T4000 Nominal pressure (KN) 500 800 1100 1100 1100 Max. Bending width (mm) 1600 2500 2500 3200 4000 Column spacing (mm) 1300 2100 2100 2700 3300 Throat depth (mm) 205 350 410 410 410 Cylinder stroke (mm) 100 200 200 200 200 Die setting height (mm) 540 570 570 570 570 Main power (KW) 5.5 7.5 7.5 7.5 7.5 Oil volume (L) 160 225 225 350 350 Speed (mm/s) Approaching 230 230 220 220 220 Working 0-15 0-15 0-15 0-15 0-15 Returning 140 140 140 140 140 Dimension (mm) L 2200 3220 3240 4030 4830 W 1450 1780 1780 1780 1780 H 2155 2650 2680 2680 2780 Weight (kg) 3700 5800 7800 8000 10000

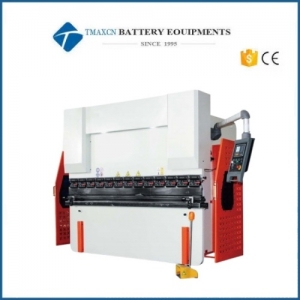

40T-600T Simple CNC Hydraulic Bending Press Brake

40T-600T Simple CNC Hydraulic Bending Press Brake   Features Complete steel-welded structure, with sufficient strength and rigidity Hydraulic down-stroke structure, reliable and smooth Mechanical stop unit, synchronous torque and high precision Back gauge distance and upper ram stroke with electric adjustment,and counter display Upper tool with tension compensating mechanism,in order to guarantee high precision of bending E21 CNC system X-axis and Y-axis drive automatic control   Technical parameter Model Nominal force Worktable length Columns distance Throat depth Slider stroke Max. height Power Dimension Unit KN mm mm mm mm mm KW L*W*H, mm 40T/2200 400 2200 1870 230 100 320 4 2200*1200*1900 40T/2500 400 2500 1960 230 100 320 4 2500*1200*1900 50T/2500 500 2500 1960 230 100 320 5.5 2500*1200*2000 63T/2500 630 2500 1960 250 120 320 5.5 2500*1300*2210 63T/3200 630 3200 2600 250 120 320 5.5 3200*1300*2210 80T/2500 800 2500 1960 300 120 320 7.5 2500*1400*2300 80T/32000 800 3200 2600 320 120 350 7.5 3200*1500*2300 80T/4000 800 4000 3160 320 120 350 7.5 4000*1500*2400 Force & Worktable length can be customized!

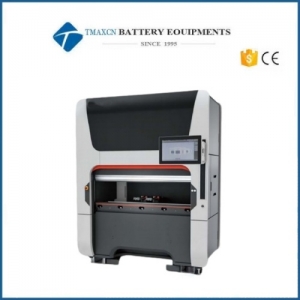

3T-18T Small Servo Electric CNC Bending Machine Press Brake

3T-18T Small Servo Electric CNC Bending Machine Press Brake   Features The servo press brake is flexible, reliable and advance bending machine.Servo Electric Press Brake combines high accuracy, flexibility and reliability. This concept offers low power consumption , less maintenance and no hydraulic oil and components for operation.   Technical parameter Model EP03-02 EP60-04 EP12-06 EP18-08 Pressurization capacity (T) 3 6 12 18 Processing length (mm) 230 400 600 800 Bending stroke (mm) 120 120 120 120 Rear stopper stroke (mm) 150 150 150 250 Number of axes 2 2 2 3 Spindle power (KW) 2 3 5.5 7.5 Speed of the return (mm/s) 200 200 200 200 Work progress speed (mm/s) ＜30 ＜30 ＜30 ＜30 Opening height (mm) 420 420 420 420 Laryngeal opening depth (mm) - 150 150 250 Column spacing (mm) 250 370 520 770

100KG-2200KG Laboratory Pneumatic Metal Plate Bending Press Machine

100KG-2200KG Laboratory Pneumatic Metal Plate Bending Press Machine   Introduction Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals. Technical parameter Model BSW01-100kg BSW01-300kg BSW01-500kg BSW01-800kg BSW01-1500kg BSW01-2200kg Nominal pressure(T) 0.1 0.3 0.5 0.8 1.5 2.2 Maximum working pressure of liquid(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 Maximum opening distance mm 250 250 250 300 300 300 Maximum stroke mm 100 100 100 100 100 100 Workbench size   Left and right mm 300 300 300 350 350 350 Before and after mm 200 200 200 250 250 250 Height of machine mm 800 800 850 1000 1050 1100

500T Industrial Single Column Hydraulic Powder Press Machine

500T Industrial Single Column Hydraulic Powder Press Machine   Introduction The 500-ton single-arm hydraulic press, also known as the 500-ton single column oil press or 500-ton single-column press, is a custom-made model. The machine body adopts a C-shaped single-arm structure and is welded by submerged arc welding. After welding, it undergoes vibration treatment to ensure the quality of the machine The degree of non-deformation of the body. The wave pressure system is located inside the machine body, with an attractive appearance and convenient operation.   Structure The structure of the 500-ton single-column hydraulic press: The main body structural components of the 500-ton single-column hydraulic press are all made of steel plate interlocking structure. After interlocking, they are tempered in a tempering furnace to eliminate the interlocking force, ensuring that the machine body is not prone to deformation during long-term use. The hydraulic system is composed of cartridge valves, integrated oil circuits, pump sets and oil tanks, etc. The electrical control system is composed of a control box and various control components, etc. The control box is equipped with a PLC programmable control system, which can complete the control of all the actions of the machine. The operation console can complete the operation of all the actions of the machine. The operation console is equipped with operation buttons for the actions of each part of the hydraulic press, function transfer switches, start and stop buttons for each motor, and alarms for each part. Monitor the indicator light, press the buttons with both hands, and press the return and emergency stop buttons.   Parameters Nominal pressure 5000KN System pressure 25MPa Slider stroke 500mm Opening height 800mm Countertop size 2000*800mm Deep throat 600mm Downward speed 200mm/s Working speed 8-20mm/s Return speed 200mm/s Servo motor 32KW
