Die Cutting Machine

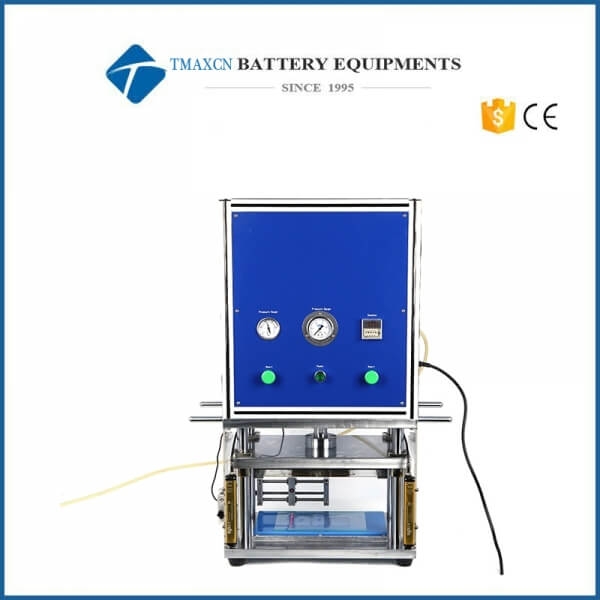

Semi-automatic Pouch Cell Battery Electrode Die Cutting Machine

  • Model Number:

    TMAX-MQ300
  • Input Power:

    2.2KW
  • Dimension(L*W*H):

    580*455* 900mm
  • Net Weight:

    120kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 day
  • contact now
Product Details

Semi-automatic Pouch Cell Battery Electrode Die Cutting Machine


Below is a video link to our product:

https://www.youtube.com/watch?v=ViewaPpy8lU&t=113s

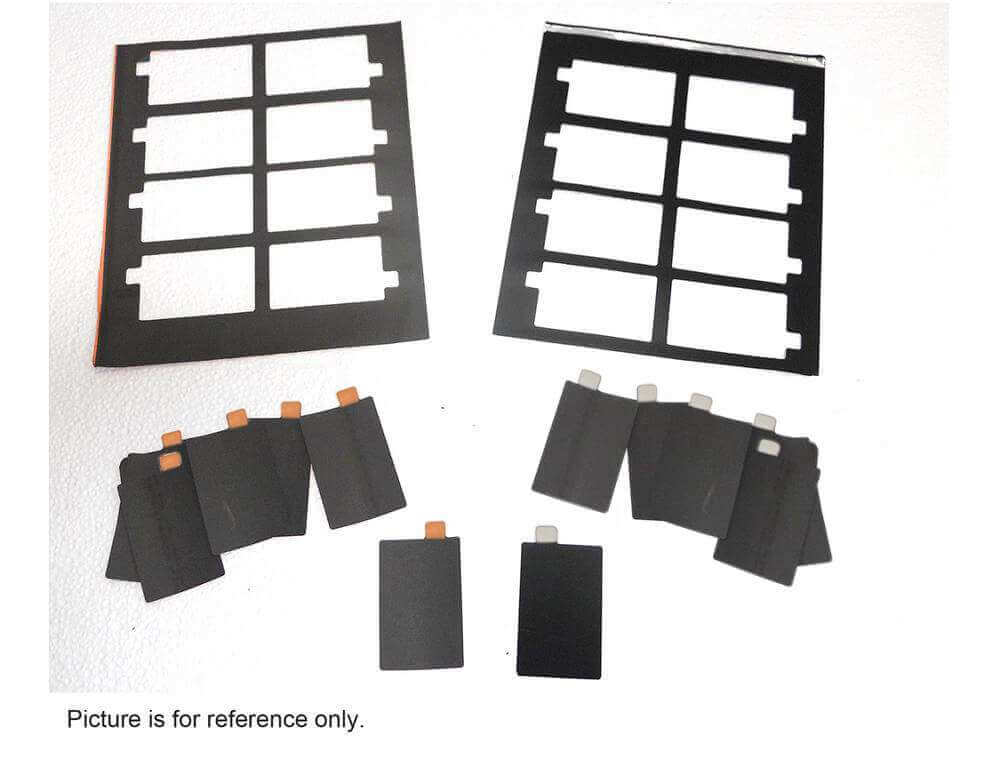

1 TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

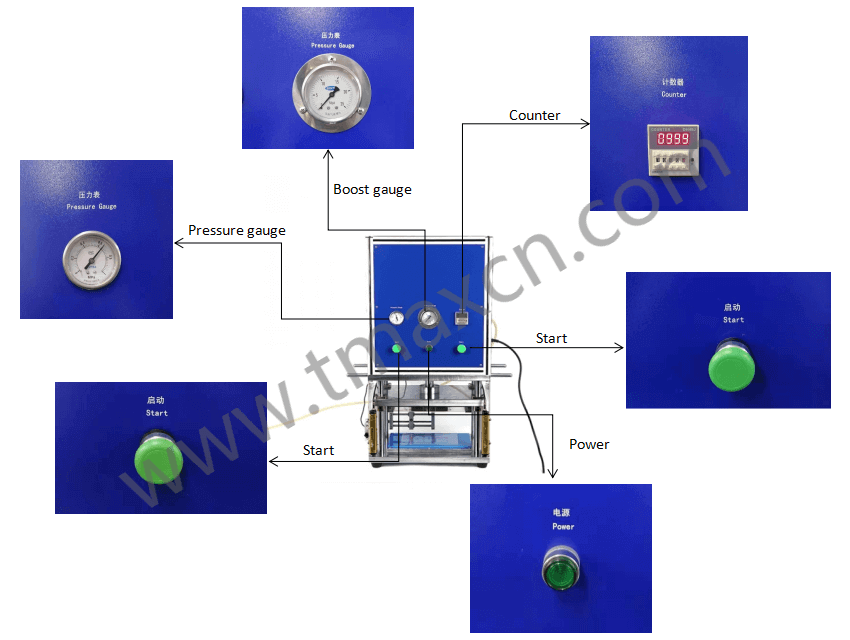

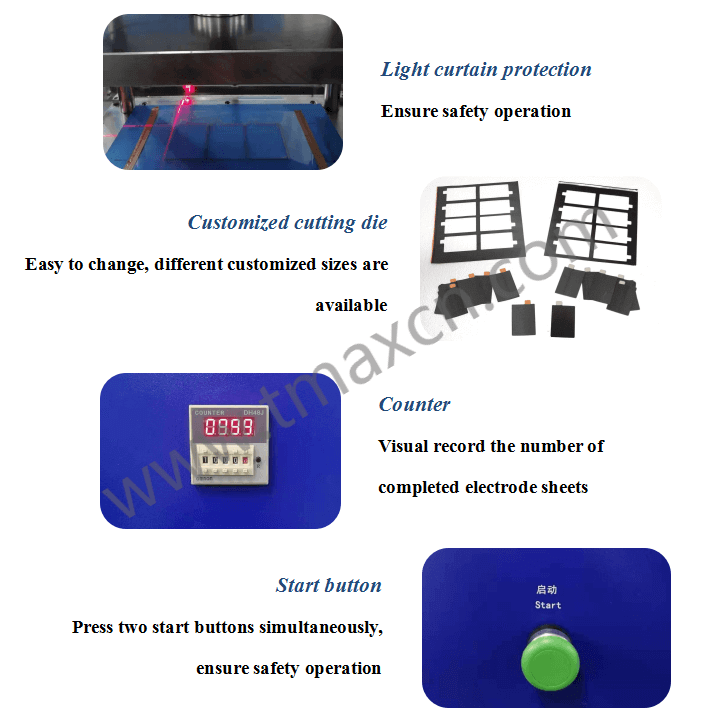

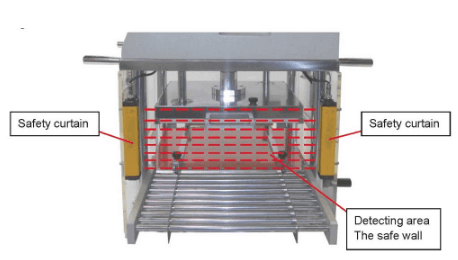

2 This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.



3 High speed, high accuracy, long lifetime to make cutted electrode without burr, to get a good consistency.



4 This model has max die dimension with 200*300mm, if need other models, please choose the TMAX-JD-500model with max die size up to 500*500mm.

SPECIFICATIONS:

Model

Battery Electrode Die Cutter Machine  TMAX-MQ300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Max cutter die size

200mm(L) * 300mm(W)

Die Set Dimensions

One set of standard electrode die is included.within the dimensions::

200mm(L) *300mm(W)

Customized size die is available upon request

Safety Protection

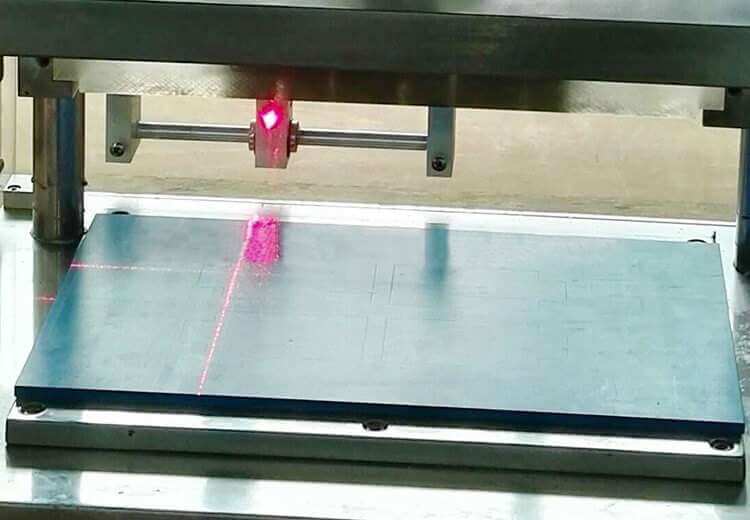

Built in Safety Curtain to protect against hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

3 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

Production Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

580*455* 900mm

Net Weight

120kg (265 lbs)

Shipping Dimensions

470*750*1090mm



electrode die cutter electrode die cutterelectrode die cutterelectrode die cutterelectrode die cutter







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


semi-automatic slitting machine


1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.
