Cold Magnetron Sputtering Deposition System For Conductive Coating Of SEM Sample Preparation

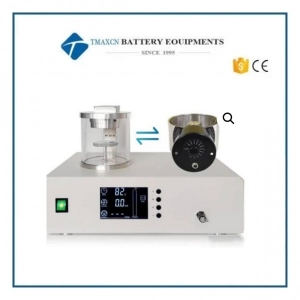

Cold Magnetron Sputtering Deposition System For Conductive Coating Of SEM Sample Preparation      Model: TMAX-JY-JS02-Cold Magnetron Sputtering Deposition System Product Description The TMAX-JY-JS02 is a benchtop cold magnetron sputtering coating system equipped with a standard rotating/tilting sample stage. It is specifically designed for high-quality conductive coating of non-conductive samples with varied surface morphologies for SEM imaging. It also meets the requirements for electrode coating, semiconductor materials, and other thin-film applications. Key Features · "Ultra-Cold" Sputtering: Utilizes a high-efficiency, low-voltage DC magnetron source to prevent thermal damage to sensitive samples. · Wide-Angle Coverage: Innovative magnetron design ensures uniform coating coverage, even for closely positioned samples. · Fast Operation: Independent solenoid valves for venting, purging, and exhaust enable rapid system cycling. · Stable Coating Performance: Precisely controlled sputtering current ensures consistent deposition rates and optimal coating quality, unaffected by chamber pressure. · Multi-Material Compatibility: Supports various metal targets (Pt standard, optional Au, Au/Pd, or Pt/Pd) with quick and easy target replacement. Technical Specifications Sputtering System Parameter Specification Target Material Standard: Pt (57mm diameter × 0.1mm thickness)  Optional: Au, Au/Pd, Pt/Pd Sample Stage Rotation 0–60 rpm (continuously adjustable) Sample Stage Tilt -45° to +45° (continuously adjustable) Stage Diameter 40mm (holds 4 standard sample holders; custom sizes available) Sputtering Current Microprocessor-controlled (0–99 mA) with safety interlock Vacuum Range Atm ~3 Pa Control Method Programmable (1–999s) with Start/Pause buttons; automatic pumping/sputtering/venting Vacuum Pump Parameter Specification Pumping Speed 133 L/min Ultimate Vacuum 0.05 Pa Noise Level 56 dB Applications & Advantages · Ideal for SEM Sample Preparation: Ensures high-conductivity coatings without thermal damage, critical for delicate or heat-sensitive materials. · Versatile Material Deposition: Suitable for Pt, Au, and alloy coatings in semiconductor, nanotechnology, and materials research. · User-Friendly Operation: Automated processes and ergonomic design enhance efficiency and reproducibility. · Compact & Reliable: Benchtop design saves lab space while delivering professional-grade performance.     html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; } html {margin:0;padding:0;} body {margin:0;padding:5px;} body, td {font:12px/1.5 "sans serif",tahoma,verdana,helvetica;} body, p, div {word-wrap: break-word;} p {margin:5px 0;} table {border-collapse:collapse;} img {border:0;} noscript {display:none;} table.ke-zeroborder td {border:1px dotted #AAA;} img.ke-flash { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/flash.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-rm { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/rm.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-media { border:1px solid #AAA; background-image:url(https://www.lithmachine.com/js/htmledit/kindeditor/themes/common/media.gif); background-position:center center; background-repeat:no-repeat; width:100px; height:100px; } img.ke-anchor { border:1px dashed #666; width:16px; height:16px; } .ke-script, .ke-noscript, .ke-display-none { display:none; font-size:0; width:0; height:0; } .ke-pagebreak { border:1px dotted #AAA; font-size:0; height:2px; }
