Two Zones Lab CSS Furnace for Rapid Thermal Processing up to 5" Dia Wafer at Max.800°C

  • Model Number:

    OTF-1200X-RTP-II-5
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

Two Zones Lab CSS Furnace for Rapid Thermal Processing up to 5" Dia Wafer at Max.800°C - OTF-1200X-RTP-II-5

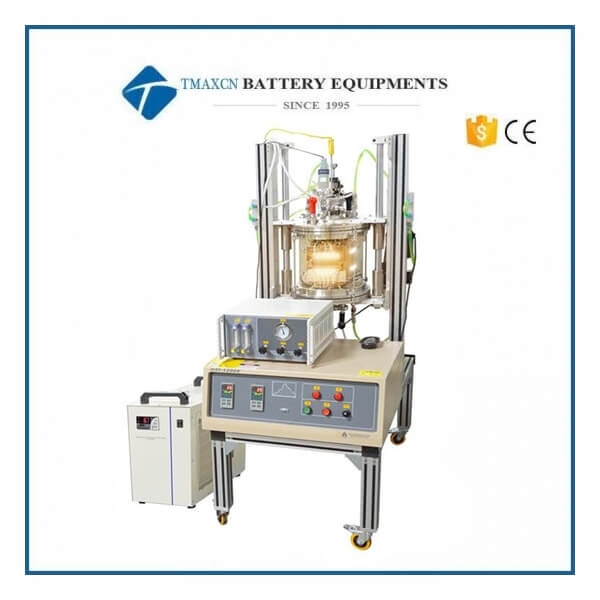

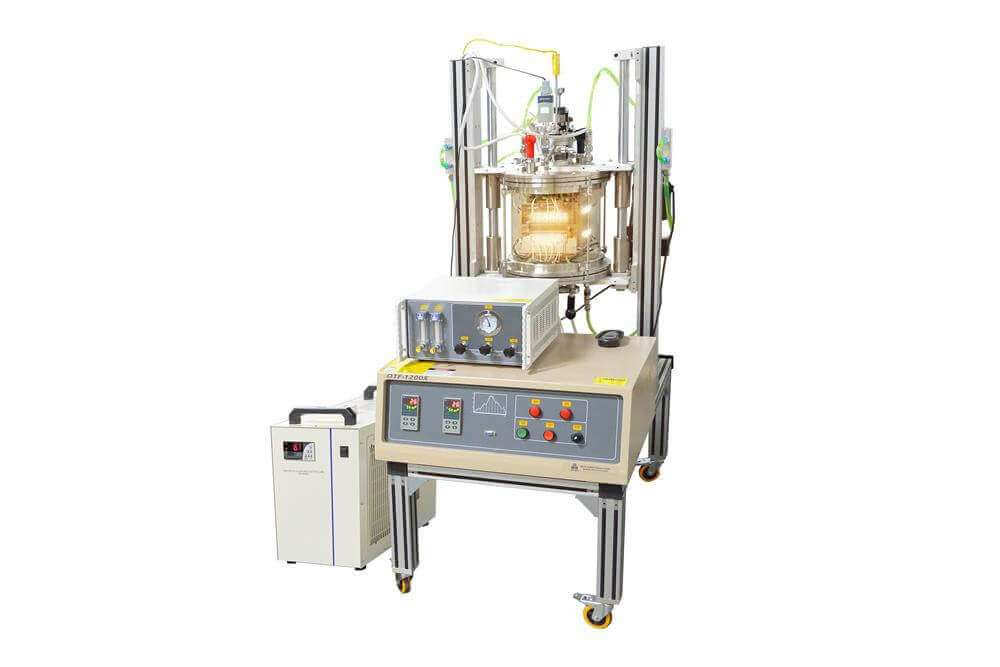

OTF-1200X-RTP-II-5  is a rapid thermal processing furnace with 11" I.D. quartz chamber. It is designed for Thermal Evaporating or CSS (Close Spaced Sublimation) film coating up to 5" Dia. circular samples and 800°C Max. The furnace is heated by two group of halogen heaters (Top and Bottom) separately with max. 10ºC/s heating rate. Two 30 segment precision temperature controllers are built in with +/-1ºC accuracy. RS485 port and control software are included to allow for the operation of furnace and temperature profile logging via PC. It is an excellent tool to research new generation thin film for solar cells, such as CdTe, Sulfide, and Perovskite solar cell.


SPECIFICATIONS:

Furnace structure & Vacuum Chamber

· Two temperature controllers.

· The chamber is made of high purity fused quartz tube.

· Quartz tube size: 11" OD/10.8" ID x 9" H

· The vacuum flanges are made of Stainless Steel 316.



Vacuum Flanges

 Two Zones CSS Furnace

Two Zones CSS Furnace

· Top Flange with one KFD-25 vacuum port and one gas outlet (1/4" pipe required) can slide up or down manually to load and unload substrate and evaporated material easily.

· Bottom flange has one KFD-25 vacuum port with one gas inlet (1/4" pipe required) with needle valves.

· The flange is sealed by double silicone o-rings and can achieve max. the vacuum pressure of 10E-2 Torr by a quality mechanical pump and 10E-5 Torr by a molecular pump (vacuum pump is not included, please order separately).

· One digital vacuum gauge is installed on the top flange.

· Precision anti-corrosion digital vacuum gauge is in standard package (Since 2016.03.24).



Gas Flow Control

Two Zones CSS Furnace



Gas mixer integrated with two float-meters with adjustable measurement ranges of 16 -160 mL/m



Heater and Sample Holder
Two Zones CSS Furnace

· Two independently controlled heaters with a manually adjustable gap from 2 - 30 mm.

· 20 pcs Halogen lamps are used as the heating element for rapid thermal processing.

· Heaters are is made of stainless steel with water cold jacket to reduce heat radiation and allow for fast cooling.

· 5" Dia. the circular wafer holder is built into the top heater for holding the substrate.

· One set of high thermal-conductive AlN plates or graphite plate (5" Dia. x 0.5mm Thick) is included (place on the bottom for evaporating material )

· A 58L/min circulating water chiller is included for saving water source ( click the picture below to see detailed specs).

           Two Zones CSS Furnace  Two Zones CSS Furnace  Two Zones CSS Furnace  Two Zones CSS Furnace




Temperature Controller

· Two precision digital temperature controllers with 30 segments programmable offer independent control of the top and bottom heaters.

· Each controller has PID autotune function to protect heaters from overshooting and an alarm function to avoid overheating and a thermal couple are broken.

· PC communication interface & software is installed for recording temperature profile shown as below.

· Two Zones CSS Furnace  Two Zones CSS Furnace  Two Zones CSS Furnace





Working Temperature

· Maximum temperature for each heater: <= 800ºC.

· Maximum temperature difference between two heaters: <= 300ºC depends on the spacing between two heaters:

Spacing 30mm       Max. temp difference:  315ºC @ heating bottom only



Heating & Cooling Rate

· Heating: < 8ºC/s ( heating single heater only )

· Cooling: < 10ºC/s (600 - 100ºC) Max.



Thermal Couple

Two K-type thermal couples are installed on top and bottom heaters separately.



Working Voltage

220VAC, Single Phase, 60A Air Breaker required



Power Requirement

9.5KW total



Dimensions

Two Zones CSS Furnace1085mm L x 680mm W x 1710mm H



Shipping Weight & Dimension

· Two pallets: 525 lbs   and 48" x 40" x 87" and 165 lbs with 39x31x29" dimension







Optional

· One vacuum pump is required. Please order separately by clicking the first picture from the left below. Vacuum level can reach < = 10E-2 torr by mechanical pump.

· If you run corrosive gas, please consider to use the anti-corrosive dry pump is shown in the second picture from the left below ( Pfeiffer pump from Germany ) at extra cost.

· You may choose digital MFC gas delivery system by clicking the first picture from the right below.

         Two Zones CSS Furnace        Two Zones CSS Furnacec Two Zones CSS Furnace



Warranty

One year limited with lifetime support ( Consumable parts such as quartz tube and heating lamps are not covered by the warranty).



Laptop, software & WiFi Control (Optional)
Two Zones CSS FurnaceTwo Zones CSS Furnace

· Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.

· Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.

· A wireless remote control provides up to 300 meters operating range.

· Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.

· Note:  The software is only compatible with Tmax’s Yudian Temperature Controller




Application Notes & Warnings
Two Zones CSS Furnace


· The tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 Mpa. Vacuum pressures may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube.

· Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.

· The foot-stand of this furnace is designed for short distance hauling on the even surface
