304SS Chamber VCD Flash Evaporator Featuring Selectable Manual or Automatic Operation

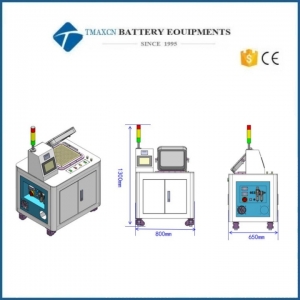

304SS Chamber VCD Flash Evaporator Featuring Selectable Manual or Automatic Operation Product Introduction The KT-CML300 vacuum drying instrument is a rapid vacuum-assisted coating equipment, also known as VCD or flash evaporation equipment. Working principle: Under the condition of rapid vacuum pressure, the solvent volatilizes rapidly to assist the physical process of coating crystal formation. It is used for rapid vacuum drying of various substrate coating materials. Its advantages include excellent coating uniformity, rapid solvent volatilization, high stability, and it can be applied to the auxiliary coating process after the coating of thin film batteries such as perovskite solar cells. Equipment pictures (refer to the actual items)   Product Features: Vacuum chamber: The chamber is made of 304 stainless steel, enhancing the safety and reliability of the chamber. A visible window is provided on the chamber cover, facilitating observation of the film formation process. The sealing ring is sealed with fluorocarbon, improving the sealing performance of the chamber. The chamber can be automatically opened and closed. Vacuum system: The mechanical pump with high power can achieve a pumping rate of 180 m3/h and a maximum pressure of 5*10-1 Pa. Equipment advantages: There is a manual/automatic mode switch. Nitrogen can be charged for pressure retention. The pressure retention value and time can be set. The pumping speed and pressure relief speed can be adjusted. The height of the sample platform can be adjusted, suitable for different-sized products. Equipment technical parameters Chamber Material 304 Stainless Steel Equipment Dimensions Approx. 800×650×1300mm (L×W×H) Sample Stage Dimensions 300×300mm Substrate Thickness <3mm Ultimate Vacuum Pressure ≤0.5Pa Pump-down Time ATM to 8Pa <10s (no load) Pressure Holding Mode Two-stage or multi-stage (flow meter control optional) Pressure Holding Range 1~100Pa Pressure Holding Time 1~999s Equipment Weight Approx. 150kg Equipment Power 600W Vacuum Pump Brand Baosi / Imported pump (oil pump / dry pump optional) Vacuum Pump Power Supply 380V / 3.7kW Vacuum Pump Weight 85kg Vacuum Pump Pumping Speed 90~180m³/h Vacuum Gauge Measuring Range 1.0×10⁻⁵ - 1.0×10⁻¹Pa Remarks Customizable for 500-600mm VCD equipment
