High-Precision Slurry De-ironing Filtration & Transfer System

High-Precision Slurry De-ironing Filtration & Transfer System

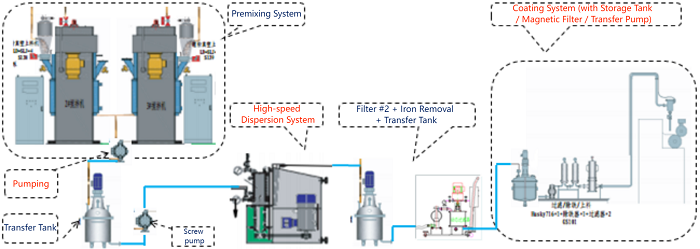

I. Flow Diagram & Description:

#1 Scheme:

#2 Scheme:

1. The slurry contained in the transfer tank is conveyed via a diaphragm pump through filtration and iron-removal equipment before being delivered to the coating machine's hopper.

2. All components are interconnected using quick-release couplings and mounted on a stainless steel tray. The slurry transfer process is regulated by the piping network and control system.

3. Crucial Note: The connecting pipeline valves and level control mechanisms between this system and the coating hopper/storage tank must be installed and managed by the end-user and coating machine supplier, as these elements are specifically tailored to your facility and selected coating line configuration.

II. Equipment Composition & Capacity:

III. Other Instructions & Cautions:

1. Shaft seal, squeegee, and filter cartridge are consumable parts.

2. This system is intended for a single slurry formulation in continuous production—frequent batch changes or intermittent operation should be avoided.

21. When changing slurry types, flush pipes and magnetic filters, and replace key parts (filter cartridge, mesh), and preferably replace piping too.

22. During normal operation, ensure the pipelines remain filled with slurry to prevent air ingress and moisture, which can cause slurry solidification.
23. External dimensions: 500 mm × 1000 mm × 900 mm (L × W × H).
