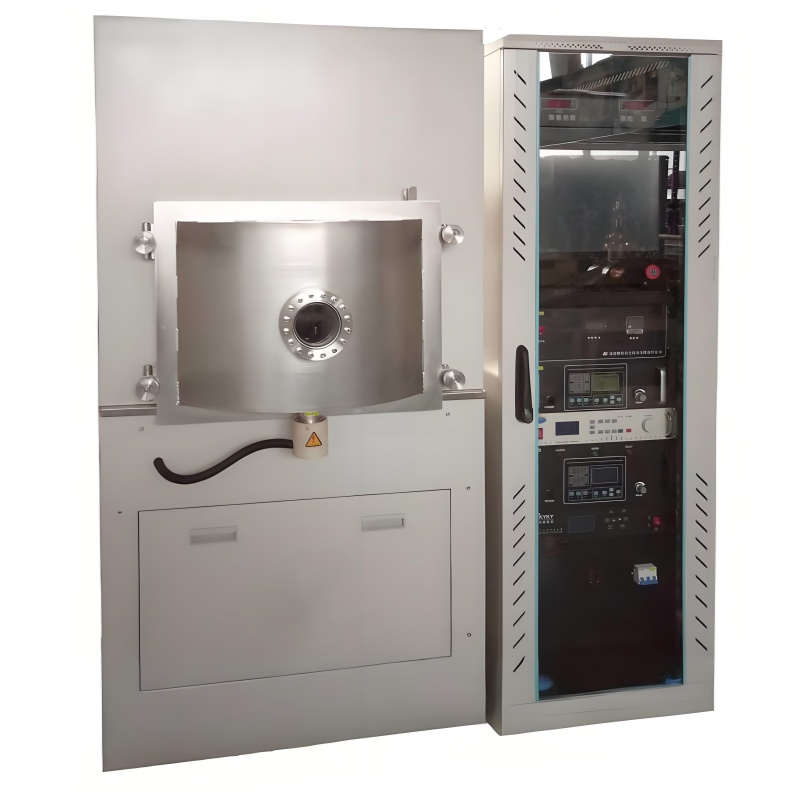

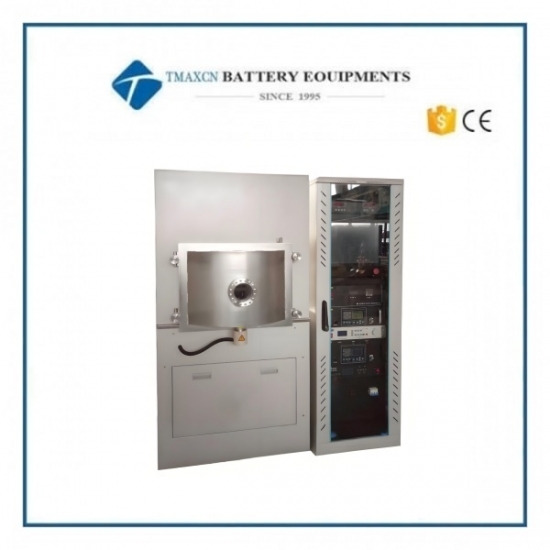

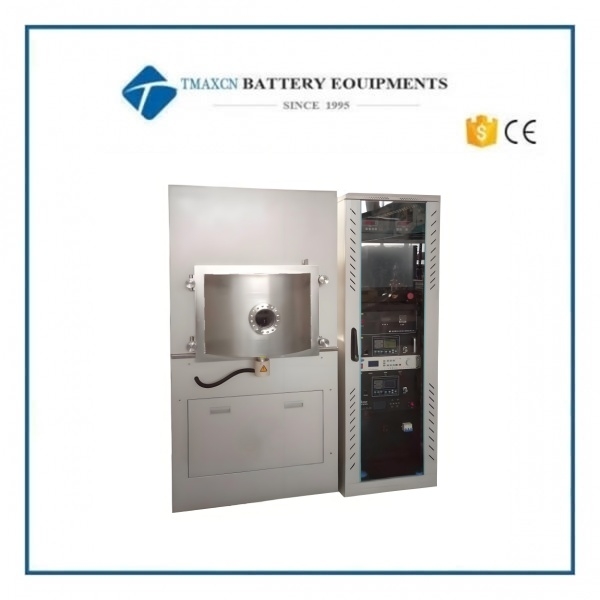

TMAX-PC-DZ03-Electron Beam Evaporation Coating System

Key Applications

Designed for the deposition of conductive films, semiconductor films, ferroelectric films, and optical coatings, this system is widely utilized in university laboratories, research institutions, and small-scale production environments requiring high-precision thin-film fabrication.

System Components

· Deposition Chamber: U-shaped design with front-loading door, dimensions: 800 × 600 × 600 mm.

· E-Gun Electron Beam Source:

o Anode voltage: 8 kV / 10 kV (1 set included).

o Power range: 0–10 kW (adjustable).

· Crucible: Water-cooled, 6-pocket design (11 mL per pocket).

· Resistive Evaporation Source (Optional):

o Voltage: 5 V / 10 V.

o Power: 300 A current, max. 3 kW output (1 set).

o Configurable with 3 water-cooled electrodes to form 2 evaporation boats.

· Substrate Holder:

o Accommodates up to 4″ substrates.

o Rotational speed: 5–60 RPM (continuously adjustable).

o Substrate-to-source distance: 300–350 mm.

o Heating range: up to 800°C ±1°C (manual control).

o Includes a manual sample shutter assembly.

· Gas Delivery System: 1-channel mass flow controller (MFC).

· Vacuum System:

o Base pressure: ≤6.7 × 1^0–4 Pa.

o Pump-down time: ≤20 min (from 1 × 10^–1 Pa to 5 × 10^–4 Pa).

o Leak rate: ≤6.7 × 10^–7 Pa·L/s.

· Thickness Monitoring: Quartz crystal microbalance (QCM) with display range: 0–99,999 Å.

Technical Advantages

1. Precision Control: Adjustable e-beam power and substrate rotation ensure uniform film thickness and composition.

2. Versatility: Compatible with multiple evaporation sources (e-beam + resistive), enabling deposition of diverse materials.

3. High-Temperature Stability: Substrate heating up to 800°C (±1°C) supports annealing and epitaxial growth.

4. Efficient Vacuum Performance: Rapid pump-down and low leak rate enhance process reproducibility.

5. User-Friendly Design: Front-loading chamber and modular components simplify maintenance and sample handling.

Target Industries & Research Fields

· Advanced Materials: Optoelectronics, MEMS, superconducting films.

· Energy Applications: Thin-film solar cells, battery electrodes.

· Academic Research: Surface science, nanotechnology, and condensed matter physics.
