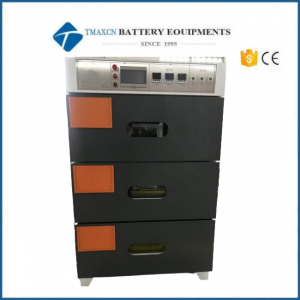

150℃ 3 Layers Single Door Vacuum Drying Oven for Supercapacitor Drying

150℃ 3 Layers Single Door Vacuum Drying Oven for Supercapacitor Drying Ⅰ.Overview: This product is suitable for the vacuum baking process of battery electrodes and cells to be filled with liquid during the production of lithium batteries. Adopting industry-leading uniform temperature technology, with a temperature fluctuation of ± 2 ℃; -0.098Mpa in the vacuum chamber can be maintained for ≥ 24 hours; Multiple quality and safety protections are ideal equipment to ensure drying effectiveness.   Ⅱ.Product features: A. Electrical characteristics: 1. The temperature control adopts AISET three position PID temperature controller, with high temperature control resolution. 2. The temperature measuring probe is selected from Taiwan Hualing's special model and placed at the back of the vacuum chamber to quickly and accurately reflect the working temperature. 3. Triple over temperature protection device, automatically cuts off heating when the set temperature is exceeded, ensuring the safety of materials and equipment. 4. Equipped with timed shutdown function, timing starts after constant temperature, and automatically stops when baking time ends. Each layer can be timed independently. 5. The ventilation fans on each floor can be independently turned on and can be used as cooling fans when heating is stopped. 6. High quality SUS stainless steel seamless electric heating tube is selected, which heats up quickly and is energy-saving and durable. B. Structural features: 1. Adopting a vacuum chamber heated by surrounding hot air and innovative circulating air duct design, ensuring high-precision uniform temperature inside the chamber. 2. The inner cavity material is T3.9mm high-quality SUS stainless steel, which is resistant to corrosion from battery paste and electrolyte. 3. Multi layer insulation materials form a closed insulation layer, blocking heat loss and effectively solving the problems of adjacent warehouse temperature and external wall heating. 4. The box door is a double-layer tempered glass structure with overvoltage protection function. When the air pressure inside the chamber is too high, it can automatically release air, restoring the air pressure inside the chamber to the allowable range. 5. The vacuum chamber and the box door are equipped with opposite silicone sealing rings, and the -0.098Mpa state inside the chamber can be maintained for more than 24 hours. Ⅲ.Technical parameters: Item Specification Touch screen 7.0-inch color touch screen PLC Xinjie Programmable Controller Temperature controller Shanghai Yatai brand PID temperature controller Operation interface Color touch screen+PID temperature controller+digital vacuum gauge; Can achieve automatic air exchange, constant temperature, cooling and other actions Chamber size H 300mm×W 800mm×D750mm×3 layers Whole size H 1850mm×W1460mm×D1060mm Power Single layer : 3KW（peak power ）×3 Power source 3Ph, 380V Supporting gas source Vacuum: -0.095~-0.1Mpa Compressed air: 0.4-0.5Mpa Dry gas: 0.1~0.2Mpa Working temperature RT～150℃ Temp Accuracy ±1℃ Temperature distribution uniformity Temperature difference at various points within the studio≤±2℃ Heating rate It takes about 28 minutes for the room temperature (calculated as about 25 ℃) to rise to 80 ℃ Heating method Electric heating, enclosed hot air circulation, independent for each layer Over temperature protection device Each layer is equipped with dual mechanical overtemperature protection, with independent temperature measurement for each layer Alarm method Alarm light+buzzer on Working chamber vacuum degree 0～-0.098Mpa，Vacuum maintained after 24 hours of pressure holding≥96% Pressure transition rate The vacuum pumping and inflation break time in the studio is less than 1 minute Chamber Materials SUS Stainless steel plate Shell material Using SECC steel plate, the surface is sprayed with plastic

3 Layers Single Side Energy Saving Type Vacuum Drying Oven

     3 Layers Single Side Energy Saving Type Vacuum Oven   Series: Standard Vacuum Oven Series Applicable Products: Batteries, battery cells, electrode sheets Internal Dimensions: 350(H) × 850(W) × 800(D) mm × 3 layers External Dimensions: 2000(H) × 1270(W) × 1150(D) mm   1. Basic Structure Composed of 5 parts: 1. Frame structure 2. Inner chamber 3. Vacuum and nitrogen system 4. Electrical control system 5. External circulation system   2. Working Principle Each unit can work continuously in a cycle. Basic process: open the door to place battery cells or electrode sheets into the oven, then set heating, vacuum, and nitrogen timing. The system automatically executes heating and timed ventilation based on preset parameters to complete the baking process.   3. Configuration 3.1. Inner Chamber: Made of 3.0 mm stainless steel with iron square tubing reinforcement. 3.2. Frame: Made of 1.5 mm high-quality cold-rolled plate; double-layer insulation using aluminum silicate, aluminum foil cotton, and sound insulation cotton. 3.3. Hot Air System: Each layer consists of fan, heating box, air duct, and piping to ensure temperature uniformity. 3.4. Control System: Includes PLC, touchscreen, pressure sensor, high-vacuum baffle valve, solid-state relays, temperature controller, solenoid valve group. 3.5. Hardware: Includes door, rear cover, vacuum pipes, and other stamped components.   4. Machine Features 4.1. Door Type: Single-opening; elastic double-layer glass door; three-layer pressure monitoring with overpressure protection. 4.2. Inner Chamber Seal: Molded silicone O-ring, high temperature and corrosion resistant. 4.3. Working Principle: Surrounding hot air external circulation. Double insulation keeps outer temperature within +20°C of ambient. 4.4. Heating Structure: O-type external circulation air, left air outlet and right air intake to ensure uniform temperature. 4.5. High Vacuum Pneumatic Baffle Valve: Three-layer isolation, independently controlled. 4.6. Touchscreen Display: Fully automatic cycle control with return to vacuum pressure holding after completion; digital safety temperature display. 4.7. Multi-level Overtemperature Protection: Effectively prevents temperature runaway and enhances protection accuracy. 4.8. Touchscreen Central Operation: Easy and reliable operation. PLC program control ensures stable performance. 4.9. Independent Layer Control: Each layer can set total baking time, cycle time, vacuum time, and drying time. After parameter setting, pressing auto button starts the baking cycle. Automatic shutdown occurs after baking completes. Over-temperature alarm is triggered with red light and message display. 4.10. Nitrogen Charging Control: Charging stops automatically at setpoint between -0.1 MPa and -0.02 MPa. 4.11. Fault Alarms: On-screen fault alerts and cause descriptions during normal operation. 4.12. Vacuum Pipe: Corrosion-resistant. 4.13. Program Interlock: Prevents cross-contamination between layers.   5. Technical Specifications No. Item Specification 1 Heating Principle External circulation hot air heating 2 Power Supply 380V 50Hz 14KW 3 Gas Source Dry gas: 0.1–0.2 MPa / Vacuum: -0.098–-0.1 MPa / Compressed air: 0.4–0.5 MPa 4 Temperature Range Ambient to 120°C 5 Vacuum Retention -0.1 to -0.098 MPa; ≥95% retention for 24h under ambient pressure 6 Display Error ≤±1°C between setpoint and stabilized value 7 Insulation External temperature ≤45°C (excluding glass door) 8 Temperature Uniformity ≤±3.5°C within 50 mm from chamber walls at atmospheric pressure 9 Interlayer Temperature Difference ≤20°C (adjacent layer temp rise ≤100°C; ≤20°C above ambient) 10 Response Time Ambient to 85°C in ≤30 min; core stabilization time: 90–120 min (no load) 11 Interface Position & Size Located at rear; Vacuum: DN20; Gas inlet: Φ12 mm air tube 12 Inner Chamber Size 350(H) × 850(W) × 800(D) mm × 3 layers 13 Outer Dimensions 2000(H) × 1270(W) × 1150(D) mm 14 Color Gray-white-orange (customizable)   6. Electrical Configuration No. Component Specification 1 PLC Inovance 2 Touchscreen 7-inch Inovance color screen 3 Temperature Controller Digital intelligent controller / PID auto-tuning 4 Temperature Control Mode PID + SSR (thyristor), Shanghai Yatai 5 Over-temp Protection Shanghai Yatai Controller 6 Temp Sensor Hualing K-type thermocouple 7 Vacuum Gauge Digital / ±101.0 kPa, Taiwan Kingdom 8 Vacuum/Nitrogen Valves Vacuum baffle valve 9 Alarm Device Yijia 10 Heating Tube Custom-made 11 Control Mode Independent control for each chamber; PLC automatic circulation for heating, vacuuming, and nitrogen; operations set via touchscreen   7. Installation Requirements 7.1 Installation Distance: Minimum 1500 mm in front; ≥500 mm on sides and rear. User must provide independent power switch and external wiring. 7.2 Installation Site Conditions (provided by buyer): l 7.2.1 Power: 3-phase 4-wire AC 380±38V, 50±1Hz l 7.2.2 Vacuum Source: -0.1 MPa, DN20 hose barb l 7.2.3 Nitrogen Source: 0.1–0.2 MPa, Φ12 gas tube l 7.2.4 Compressed Air: 0.4–0.6 MPa, Φ8 gas tube 7.4 Power Consumption: ≤12 kWh max 7.5 Environmental Requirements: l 7.5.1 Temperature: -5~35°C, Humidity: ≤40% l 7.5.2 No flammable/explosive gas, liquid, or solids nearby l 7.5.3 Prohibited to bake flammable, combustible, or explosive materials inside the oven

Lab High Temperature 600W 1400W And 2000W Benchtop Vacuum Drying Oven Used in Perovskite Solar Cell Fabrication Line

Sales Manager: Gia Email: Gia@tmaxlaboratory.com Wechat: Dingqiuna Whatsapp：+86 131 7450 6016 Skype: gia@tmaxcn.com

Automatic Vacuum Drying System

The TMAX-SBVO-03 vacuum oven is specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry. This vacuum oven is manual vacuum and air control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking.

Lab 400C High-temperature Vacuum Drying Oven with Vacuum Pump

100-400°C Convection Drying Oven with Digital Temperature Controller

Three-Layer Double-Door Intelligent High Vacuum Oven

Three-Layer Double-Door Intelligent High Vacuum Oven   Equipment Series: High Vacuum Series – One-to-Four Configuration Applicable Products: Battery, Cell, Electrode Sheet Baking Internal Chamber Dimensions: Height 350mm × Width 850mm × Depth 1250mm (× 3 units) External Dimensions: Height 2150mm × Width 2000mm × Depth 1400mm   I. Basic Structure Consists of eight parts: 1. Frame Section; 2. Internal Chamber Section; 3. Vacuum and Nitrogen Charging Section; 4. Electrical Control Section; 5. External Circulation Section; 6. Internal Circulation Section; 7. Double-Door Interlock Section; 8. Cooling System Section (Optional Configuration)   II. Process Flow Diagram   III. Product Overview The high vacuum oven is used for moisture removal baking of lithium battery cells and electrode sheets. Compared with conventional ovens, it has advantages of stable performance, high vacuum level, short baking time, excellent dewatering and drying effect, and good pressure retention. It is combined with a dedicated high vacuum unit and cooling system to form an independent baking system, replacing conventional traditional ovens. IV. Working Principle Each machine can operate in continuous cycles; the basic process: open the door, place the cells or electrode sheets into the oven, then set the heating time, vacuum time, and nitrogen time. The system will automatically complete heating and timed gas exchange according to the preset time parameters, completing the baking process.   V. Product Features High Vacuum Design The internal chamber is made using pressure vessel standard welding process, with high vacuum retention, long durability, and no deformation. Stable Temperature Uniformity Temperature uniformity reaches ±3℃ under constant temperature. Optimized Space Design The internal chamber size can be customized according to the customer’s battery size, improving space utilization efficiency. Precise Temperature Control Temperature is controlled using silicon-controlled rectifier (SSR) + PID mode, with low thermal inertia and good control effect. Heating Method Hot air circulates both inside and outside the chamber, maintaining consistent internal and external chamber temperatures. Heat radiation and heat conduction ensure chamber temperature uniformity. During cooling, heating tubes are shut off, and internal heat is carried away by air circulation, accelerating cooling speed. Sixfold Safety Protection Ensures operational safety and product reliability. Automated Program Control PLC program controls heating, vacuuming, and nitrogen injection. Manual/automatic operation modes can be switched. Automatic timed heating is completed by simply setting heating time, vacuum time, and nitrogen time. The system will automatically perform baking and gas exchange. Internal Airflow Structure Uses magnetofluid circulation with good sealing and high temperature resistance.   VI. Oven Structure Internal Chamber Dimensions Height 350mm × Width 850mm × Depth 1250mm (× 3 units) External Dimensions Height 2140mm × Width 2000mm × Depth 1400mm Outer Shell Material A3 cold-rolled steel plate, coated with baking paint, color: gray-white-orange Inner Liner Material Industrial brushed stainless steel plate, thickness: 4.5mm Door Type Double-door Inner Liner Sealing Ring Molded silicone O-ring, high temperature and corrosion resistant Control Mode PLC automatic control mode, touch screen operation Double-Door Interlock Function When one door is opened, the opposite door lights up and locks. Forcibly opening both doors will trigger an alarm and light prompt (effectively prevents cell trays from being pushed through and falling out the other side) Vacuum and Nitrogen Charging Port Position and Interface Specifications Interface position is at the rear of the equipment; vacuum interface is KF40, dry gas charging interface is φ12mm air pipe interface   VII. Vacuum and Temperature Control Vacuum Degree No-load chamber vacuum ≤10 Pa, full-load chamber vacuum: 50–100 Pa, leakage ≤500 Pa within 24 hours Heating Method Dual circulation of air internally and externally, dual heat source dual-control heating via thermal radiation, thermal conduction, and electric heating External Heating Structure U-shaped airflow; air is discharged from the left, drawn in from the right, with exhaust from top and bottom, achieving temperature uniformity Main Heating Temperature Control Temperature control accuracy within ±0.5℃ Chamber Temperature Deviation ±3℃ (empty box, constant temperature state) Temperature Range Room temperature +20℃ to 200℃ Heating Rate Room temp to 85℃ ≤30 minutes (atmospheric pressure, no load; time for instrument to reach set temperature); internal chamber temperature stabilization time 60–90 minutes (no load); room temp to 85℃ ≤45 minutes (full load); internal chamber temperature stabilization time 90–120 minutes (full load) Heating State Temperature rises in a curve to the set value, then remains flat during constant temperature phase Cooling Method Cold air system connected to external airflow duct; alternating conduction cooling from outside the inner liner air duct; internal vacuum nitrogen is used for alternating cooling Cooling Time ≤60 minutes (empty box, from 100℃ to 55℃, measured at core); full-load test time ≈120 min (depending on battery size and capacity) Surface Temperature of the Chamber When internal temp is 100℃, surface temp ≤ room temperature + 20℃ Independent Operation Per Layer Each layer independently performs heating, vacuuming, and nitrogen charging   VIII. System Composition 1. The vacuum oven body mainly consists of sheet metal structure, heating system, circulation fan system, and software control system. 2. The auxiliary cooling system mainly consists of cooling exchange valves, cooling pipelines, and high-pressure fans, which cool the chamber from outside the working chamber. 3. The auxiliary cooling system is shared by three chambers, each independently controlled by valves. 4. The vacuum system consists of vacuum piping.   IX. Electrical Configuration Temperature Controller Digital intelligent temperature controller / Microcomputer PID automatic calculation (Shanghai Yatai) Temperature Control Mode PID + SSR (silicon controlled rectifier) (Shanghai Yatai) Over-temperature Protection Digital intelligent temperature controller / Microcomputer PID automatic calculation (Shanghai Yatai) Temperature Sensor K-type thermocouple Vacuum Gauge INFICON resistance vacuum gauge (Switzerland) Vacuum Valve / Gas Inlet Valve Customized PLC Wecon, Fujian Touch Screen 7-inch LED color screen by Wecon Independent Alarm Device Yijia Heating Tube Customized Leakage Circuit Breaker Chint Contactor Schneider Control Mode Heating, vacuuming, and gas charging operations are controlled via PLC in automatic circulation mode; all operation stages are set through the touch screen   INFICON Resistance Vacuum Gauge PSG500 (Mainly used to control and display high vacuum levels)     Shanghai Yatai temperature control module (mainly controls temperature uniformity to prevent overheating)   X. Safety Protection 1. Chamber over-temperature protection—automatically cuts off power when over-temperature is detected 2. Overcurrent and short circuit protection for heating tube 3. Overcurrent and short circuit protection for internal circulation fan 4. Overcurrent and short circuit protection for control system 5. Special explosion-proof door, pressure-resistant, with overpressure self-release function 6. When the chamber is overcharged, the device can automatically shut off the nitrogen & dry gas inlet to save gas and reduce consumption 7. Independent audio-visual alarm for set time notification   XI. Vacuum System (Edwards GXD1601750, UK) The vacuum system is provided by the supplier and allows a maximum of 3 chambers to vacuum simultaneously. After reaching the target vacuum level, the corresponding branch valve will automatically close before other chambers start vacuuming.   Technical Data Parameter Unit GXS160 GXS160/1750 Peak Pumping Speed m³/hr (cfm) 160 (94) 1200 (706) Ultimate Vacuum (without purge) mbar (Torr) 7×10⁻³ (5.3×10⁻³) 7×10⁻⁴ (5.3×10⁻⁴) Power Ultimate pressure kW (hp) 3.8 (5.1) 5.1 (6.8) Maximum gas ballast kW (hp) 5.0 (6.7) 7.4 (9.9) Electrical Power supply High voltage 380–460V 3φ 50/60Hz Low voltage 200–230V 1φ 50/60Hz Connection High voltage Harting Han K 4/4-F Low voltage Vacuum Connection Inlet   ISO63 ISO100 Outlet   NW40 Cooling Water Max supply pressure bar (psig) 6.9 (100) Min inlet/outlet pressure difference bar (psig) 1.0 (14.7) Min flow at pressure l/min (gal/min) 4.0 (1.1) 7.0 (1.9) Temperature °C (°F) 5–40 (41–104) – All models Connection   3/8" BSP Female (G 3/8") Purge Gas* Pressure bar (psig) 2.5–6.9 (36–100)   Light load sl/min 12   Medium load sl/min 18-52   Connection   Swagelok® Ø 1/4" Tube, with Ferrule Connector Process Gas Purge / Solvent Flush Gas Inlet Pressure bar (psig) 2.5–6.9 (36–100) Control valve connection   Swagelok® Ø 3/8" Tube, with Ferrule Connector Filter connection   1/2" NPT Female Thread Solvent connection   3/8" BSP Female Thread (G 3/8") Weight Kg (lbs) 305 (672) 475 (1047) Noise (with suitable exhaust pipe) dB(A) <64 Operating Temperature °C (°F) 5–40 (41–104) Max Allowable Exhaust Pressure mbar (psia) 1400 (20) System IP Rating Standard 31 Lubricant Type PFPE Drynert® 25/6 Capacity l (gal) 0.7 (0.2) 1.4 (0.4) Monitoring & Control Standard Model Control Internal controller "Dashboard" Interface – RS232 Monitoring Ethernet Web Interface Optional Model Control Parallel – MCM MicroTIM Control & Monitoring Profibus DP Display Terminal (PDT) Monitoring FabWorks* Pump Light Load shaft seal purge only Medium Load Shaft seal purge, high vacuum purge, inlet purge, variable valve & exhaust purge(with exhaust pressure sensor) Medium Load+ Same with medium load, plus high-flow gas purge, solvent purge   1. Ultimate Vacuum Degree: ≤10 Pa (no-load condition); single chamber reaches 10 Pa from atmospheric pressure ≤10 min (no-load condition) 2. Vacuum Leakage Rate (cold, no-load condition): After reaching ultimate vacuum and closing the valve, hold for 1 hour; average vacuum drop ≤20 Pa. After 24 hours, vacuum drop ≤500 Pa (i.e., ≤20 Pa/h) 3. Vacuum system adopts a single-pump multi-chamber layout for vacuuming; no-load ultimate vacuum ≤10 Pa. The actual vacuum level changes depending on the gas emission from the items being vacuumed. ¢ High vacuum range: 50–100 Pa (efficient for dewatering) ¢ Low vacuum range: ≤–20 kPa (nitrogen exchange threshold) 4. System Composition: Includes a two-stage vacuum pump and vacuum pipeline; the pump can be self-supplied or provided by the supplier 5. Pipeline Arrangement: Based on the contract-confirmed drawings and layout between vacuum pump and oven; short-distance vacuum bellows are supplied by the supplier. For additional pipeline installation, confirmation and a designated installer are required in advance.   XII. Chiller Parameters (Air-Cooled Chiller, 5HP, for Vacuum Pump Cooling Use)   Chiller Parameters Table: Specification Table for XC-6HP Air-Cooled Chiller Unit No. Item Specification Type Performance Parameter 1 Unit Model XC-6HP 2 Cooling Capacity kW 16.9 (Outlet Water Temp. 10°C, Condensing Temp. 50°C) Kcal/h 14560 (Outlet Water Temp. 10°C, Condensing Temp. 50°C) 3 Power Supply V 5N-380-50HZ 4 Control Method Type Capillary Tube 5 Total Power A 5.63 6 Compressor Type Fully Enclosed Scroll Type Cooling Input Power (kW) 4.5 Type Scroll Type 7 Fan Type Outer Rotor Axial Flow Fan Power (kW) 0.38 Air Volume (m³/h) 7000 8 Water Pump Type Centrifugal Clean Water Pump Power (kW) 0.75 Lift (m) 28 Flow Rate (L/min) 100 9 Condenser Type Aluminum Fin Coil with Copper Tube Cooling Air Volume 6000 10 Evaporator Type Coil Type Water Volume (m³/h) 2.91 Water Holding Volume (m³) 0.065 11 Water Tank Material SUS304 Capacity (L) 56 12 Piping Chilled Water Outlet DN25 (based on customer requirement) Chilled Water Inlet DN25 (based on customer requirement) Drain Port PVC DN20 (based on customer requirement) Tap Water Inlet DN15 (based on customer requirement) 13 Microcomputer Controller Display Button + LED Display Output 30500A Output Mode Selection Solid-state Relay Output Temp. Control Range (°C) +5 ~ +35 Temp. Accuracy (°C) ±2.0 14 Alarm Device Temp. Abnormal Alarm Circulating water temp. too low alarm, cut off compressor Power Phase Reverse Phase detection protection for pump/compressor reversal High/Low Pressure Fault Pressure switch detects refrigeration system pressure status Compressor Overload Thermal relay protects compressor Compressor Overheat Internal protection device for compressor Pump Overload Thermal relay protection Low Water Level Alarm Float switch Short Circuit Air switch Refrigerant R22 (or chilled water medium) 15 External Dimensions L×W×H (mm) 1250×640×1250 16 Total Unit Weight KG 210   XIII. Power 9.1) Power Supply: 400V / 50Hz, 3-phase 5-wire system 9.2) Total Power per Unit: 24 KW 9.3) Vacuum System Power: 10.5 KW 9.4) Cooling System Power: 5 KW 9.5) Cooling System Power: 5 KW 9.6) Equipment Weight: Approximately 1800 kg   XIV. Installation Conditions 12.1 The front of the oven must be at least 1500 mm away from the wall, and the distance from both sides and the rear must be no less than 300 mm. 12.2 Installation site conditions (to be provided by the customer): 12.2.1 Power Supply: Three-phase AC 400±30V, frequency: 50±1Hz; the user must provide an independent power switch and be responsible for the external electrical connection of the equipment. 12.2.2 Compressed Air: Pressure 0.6–0.7 MPa, φ8 air tube 12.2.3 Nitrogen: Pressure 0.1–0.2 MPa, nitrogen pipeline φ12 air tube 12.3 Energy Consumption: 12.3.1 Maximum: ≤24 kWh (excluding vacuum pump and cooling system) 12.3.2 Average: ≤6 kWh (excluding vacuum pump and cooling system) 12.3.3 Environmental Requirements: l Temperature: -5~35℃ l Humidity: ≤40% l No flammable, explosive gases, liquids, or solids present in the surrounding environment l Absolutely prohibited to bake flammable items, combustible gases, or explosive materials inside the oven XV. System Assembly Plan (Diagram) This system supports a one-to-four configuration, i.e., 4 sets of high vacuum ovens, 1 set of high vacuum unit, and 1 set of auxiliary cooling system (optional). See the diagram below:

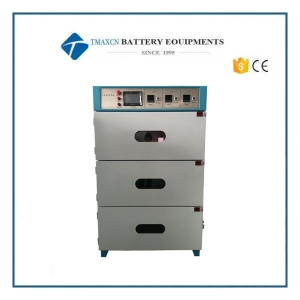

Three-Layer Single-Door Energy-Saving Vacuum Oven

Three-Layer Single-Door Energy-Saving Vacuum Oven   Series: Standard Vacuum Oven Series Applicable Products: Batteries, battery cells, electrode sheets Internal Dimensions: 350(H) × 850(W) × 800(D) mm × 3 layers External Dimensions: 2000(H) × 1270(W) × 1150(D) mm   1. Basic Structure Composed of 5 parts: 1. Frame structure 2. Inner chamber 3. Vacuum and nitrogen system 4. Electrical control system 5. External circulation system   2. Working Principle Each unit can work continuously in a cycle. Basic process: open the door to place battery cells or electrode sheets into the oven, then set heating, vacuum, and nitrogen timing. The system automatically executes heating and timed ventilation based on preset parameters to complete the baking process.   3. Configuration 3.1. Inner Chamber: Made of 3.0 mm stainless steel with iron square tubing reinforcement. 3.2. Frame: Made of 1.5 mm high-quality cold-rolled plate; double-layer insulation using aluminum silicate, aluminum foil cotton, and sound insulation cotton. 3.3. Hot Air System: Each layer consists of fan, heating box, air duct, and piping to ensure temperature uniformity. 3.4. Control System: Includes PLC, touchscreen, pressure sensor, high-vacuum baffle valve, solid-state relays, temperature controller, solenoid valve group. 3.5. Hardware: Includes door, rear cover, vacuum pipes, and other stamped components.   4. Machine Features 4.1. Door Type: Single-opening; elastic double-layer glass door; three-layer pressure monitoring with overpressure protection. 4.2. Inner Chamber Seal: Molded silicone O-ring, high temperature and corrosion resistant. 4.3. Working Principle: Surrounding hot air external circulation. Double insulation keeps outer temperature within +20°C of ambient. 4.4. Heating Structure: O-type external circulation air, left air outlet and right air intake to ensure uniform temperature. 4.5. High Vacuum Pneumatic Baffle Valve: Three-layer isolation, independently controlled. 4.6. Touchscreen Display: Fully automatic cycle control with return to vacuum pressure holding after completion; digital safety temperature display. 4.7. Multi-level Overtemperature Protection: Effectively prevents temperature runaway and enhances protection accuracy. 4.8. Touchscreen Central Operation: Easy and reliable operation. PLC program control ensures stable performance. 4.9. Independent Layer Control: Each layer can set total baking time, cycle time, vacuum time, and drying time. After parameter setting, pressing auto button starts the baking cycle. Automatic shutdown occurs after baking completes. Over-temperature alarm is triggered with red light and message display. 4.10. Nitrogen Charging Control: Charging stops automatically at setpoint between -0.1 MPa and -0.02 MPa. 4.11. Fault Alarms: On-screen fault alerts and cause descriptions during normal operation. 4.12. Vacuum Pipe: Corrosion-resistant. 4.13. Program Interlock: Prevents cross-contamination between layers.   5. Technical Specifications No. Item Specification 1 Heating Principle External circulation hot air heating 2 Power Supply 380V 50Hz 14KW 3 Gas Source Dry gas: 0.1–0.2 MPa / Vacuum: -0.098–-0.1 MPa / Compressed air: 0.4–0.5 MPa 4 Temperature Range Ambient to 120°C 5 Vacuum Retention -0.1 to -0.098 MPa; ≥95% retention for 24h under ambient pressure 6 Display Error ≤±1°C between setpoint and stabilized value 7 Insulation External temperature ≤45°C (excluding glass door) 8 Temperature Uniformity ≤±3.5°C within 50 mm from chamber walls at atmospheric pressure 9 Interlayer Temperature Difference ≤20°C (adjacent layer temp rise ≤100°C; ≤20°C above ambient) 10 Response Time Ambient to 85°C in ≤30 min; core stabilization time: 90–120 min (no load) 11 Interface Position & Size Located at rear; Vacuum: DN20; Gas inlet: Φ12 mm air tube 12 Inner Chamber Size 350(H) × 850(W) × 800(D) mm × 3 layers 13 Outer Dimensions 2000(H) × 1270(W) × 1150(D) mm 14 Color Gray-white-orange (customizable)   6. Electrical Configuration No. Component Specification 1 PLC Inovance 2 Touchscreen 7-inch Inovance color screen 3 Temperature Controller Digital intelligent controller / PID auto-tuning 4 Temperature Control Mode PID + SSR (thyristor), Shanghai Yatai 5 Over-temp Protection Shanghai Yatai Controller 6 Temp Sensor Hualing K-type thermocouple 7 Vacuum Gauge Digital / ±101.0 kPa, Taiwan Kingdom 8 Vacuum/Nitrogen Valves Vacuum baffle valve 9 Alarm Device Yijia 10 Heating Tube Custom-made 11 Control Mode Independent control for each chamber; PLC automatic circulation for heating, vacuuming, and nitrogen; operations set via touchscreen   7. Installation Requirements 7.1 Installation Distance: Minimum 1500 mm in front; ≥500 mm on sides and rear. User must provide independent power switch and external wiring. 7.2 Installation Site Conditions (provided by buyer): l 7.2.1 Power: 3-phase 4-wire AC 380±38V, 50±1Hz l 7.2.2 Vacuum Source: -0.1 MPa, DN20 hose barb l 7.2.3 Nitrogen Source: 0.1–0.2 MPa, Φ12 gas tube l 7.2.4 Compressed Air: 0.4–0.6 MPa, Φ8 gas tube 7.4 Power Consumption: ≤12 kWh max 7.5 Environmental Requirements: l 7.5.1 Temperature: -5~35°C, Humidity: ≤40% l 7.5.2 No flammable/explosive gas, liquid, or solids nearby l 7.5.3 Prohibited to bake flammable, combustible, or explosive materials inside the oven

Two-Chamber Vacuum Oven for Lithium-Ion Electrode Roll Baking

Two-Chamber Vacuum Oven for Lithium-Ion Electrode Roll Baking   1. Scope of Application: Suitable for baking entire rolls of lithium-ion battery electrode. 2. Configuration A. Chamber Body: Made of 3.5mm imported 304 stainless steel, reinforced ribs are made of the same material. B. Frame: Constructed from 1.5mm and 2.0mm high-quality cold-rolled steel plates, composed of two-layer insulation, with layered construction of aluminum silicate wool, aluminum foil wool, and soundproofing wool. C. Hot Air System: Each layer consists of fan, heating box, air duct, and air pipe, ensuring temperature uniformity. D. Control System: Composed of PLC, Weinview touchscreen, KITA pressure sensor, high vacuum gate valve, solid-state relay, temperature controller, electromagnetic valve group, etc. E. Hardware Components: Includes doors, rear cover, vacuum pipes, and other stamped parts. 3. Machine Features A. Fully sealed heating channels with breathing-type heating process, high efficiency and energy-saving, high temperature accuracy. B. High-vacuum pneumatic gate valve, independently controlled dual-chamber isolation. C. Standardized six-fold high-performance safety protection across all models. D. Aluminum alloy doors, elastic double-layer glass doors, excellent heat retention and explosion-proof performance, equipped with dual-layer pressure detection and overpressure protection. E. Equipped with 7-inch full-color touchscreen HMI system across all models, elegant and intuitive. G. Material Loading Method: Suspended on a ∅63mm hanging shaft in the center of the inner chamber, maximum load ≤150kg. H. Chamber Structure: Double-door, single-opening door. I. Insulation Structure: Uses high-density aluminum silicate insulation wool, double-layer thermal insulation, external temperature below 45°C (excluding glass doors). J. Heating Method: Electric heating control, external loop-type hot air circulation. K. Heating Structure: Uses O-type external circulation – air outlet on the left, suction on the right, to achieve temperature uniformity. L. Touchscreen display, automatic circulation and control, automatically returns to vacuum holding at the end; digital display of safety temperature. M. Equipped with multi-level over-temperature protection, effectively prevents temperature control failure and enhances accuracy of protection. N. Control panel adopts centralized touchscreen operation, convenient and reliable control. Program controller adopts PLC control, stable and reliable operation. O. The two-barrel oven is independently controlled, can set total baking time, cycle time, vacuum time, drying time separately. After setting parameters, pressing the auto button will enter the automatic baking program. When the baking time is reached, the system will automatically shut down. If the temperature exceeds the safety limit, it will automatically alarm, the red indicator light turns on, heating stops, and the alarm information is displayed on the screen. P. During normal operation, fault warnings and causes can be displayed on the screen in real-time. 4. Technical Specifications No. Item Specification 1 Heating Principle Independently heated dual-barrel external hot air circulation 2 Power Supply 380V 50Hz 12KW 3 Gas Supply Dry gas: 0.1–0.2MPa / Vacuum: -0.095 to -0.1MPa / Compressed air: 0.4–0.5MPa 4 External Interface Specs Vacuum: DN20 hose barb; Nitrogen: ∅12 air pipe; Compressed air: ∅8 air pipe 4 Temperature Range Room temperature to 150°C 5 Vacuum Level At -0.09 to -0.1MPa, pressure-holding loss ≤ 3% in 24H 6 Display Error Difference between set value and stabilized value ≤ ±0.5°C 7 Insulation Performance Outer wall temperature ≤ 45°C (excluding glass doors) 8 Internal Temperature Variance At 50mm from chamber wall: ≤ ±3.5°C under vacuum; ≤ ±2.5°C at atmospheric pressure 9 Temperature Crosstalk ≤30°C (adjacent layer heating to 100°C causes ≤30°C increase above ambient) 10 Response Time 30 minutes to 85°C on display; internal uniformity in 45–60 minutes 11 Chamber Size ZRDB-210: ∅600 × 700 depth × 2 barrels 12 External Dimensions ZRDB-210: 1900H × 1300W × 1215D (mm)   5. Electrical Configuration No. Item Specification 1 PLC Wecon (Fujian) 2 Touchscreen 7-inch LCD color screen, Wecon 3 Temperature Controller Digital intelligent PID auto-calculation temp controller 4 Temperature Control Mode PID + SSR (thyristor), Shanghai Yatai 5 Over-Temperature Prot. Shanghai Yatai temp controller 6 Temperature Sensor K-type thermocouple 7 Vacuum Gauge Digital vacuum gauge, ±101.0kPa, Jian Deng (Taiwan) 8 Vacuum/Nitrogen Valves High vacuum gate valve 9 Alarm Audio-visual alarm 10 Heating Tubes Best 11 Control Mode PLC automatic program control, 7-inch color screen HMI   6. Six-Fold Safety Protection 1. Explosion-proof door, never ruptures; equipped with overpressure self-release to protect operator safety. 2. Dual-layer over-temperature protection in working chamber (to protect products); power is cut off automatically when over-temperature is detected. 3. Over-current and short circuit protection for control system. 4. Over-current and short circuit protection for heating tubes and motors. 5. When chamber is overcharged, the system will automatically shut off nitrogen & dry gas inlets, saving gas and reducing losses. 6. Independent alarm system: audio-visual warning is issued when baking time is reached, alerting operators. 7. Installation Conditions A. Oven must be installed ≥1500mm away from front wall, and ≥300mm away from left, right, and rear walls. The user must provide an independent power switch and be responsible for external power connection. B. Installation Site Conditions (provided by customer): 1. Power Supply: Three-phase five-wire, frequency: 50 ±1Hz 2. Vacuum Requirement: -0.1MPa, vacuum pipe DN20 hose barb 3. Nitrogen: Pressure 0.1–0.2MPa, nitrogen pipe ∅12 air pipe 4. Compressed Air: 0.4–0.5MPa, ∅8 air pipe

Three-Layer Single-Door Vacuum Oven

This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.

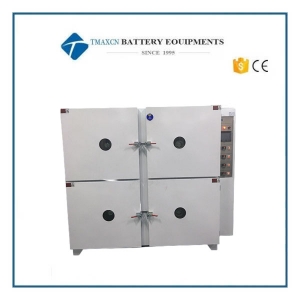

Four-Chamber Vacuum Oven for Battery Electrodes Baking

This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.

Two-Layer Single-Door High Vacuum Oven

This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.
