electrode cutting machine

Precision Die Cutter for Pouch Cell electrode Sheet

  • Model Number:

    TMAX-MQ280
  • Input Power:

    100W
  • Dimension(L*W*H):

    580x455x900mm
  • Net Weight:

    120kg
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Place of Origin:

    Fujian, China (Mainland)
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

Precision Die Cutter for Pouch Cell electrode Sheet

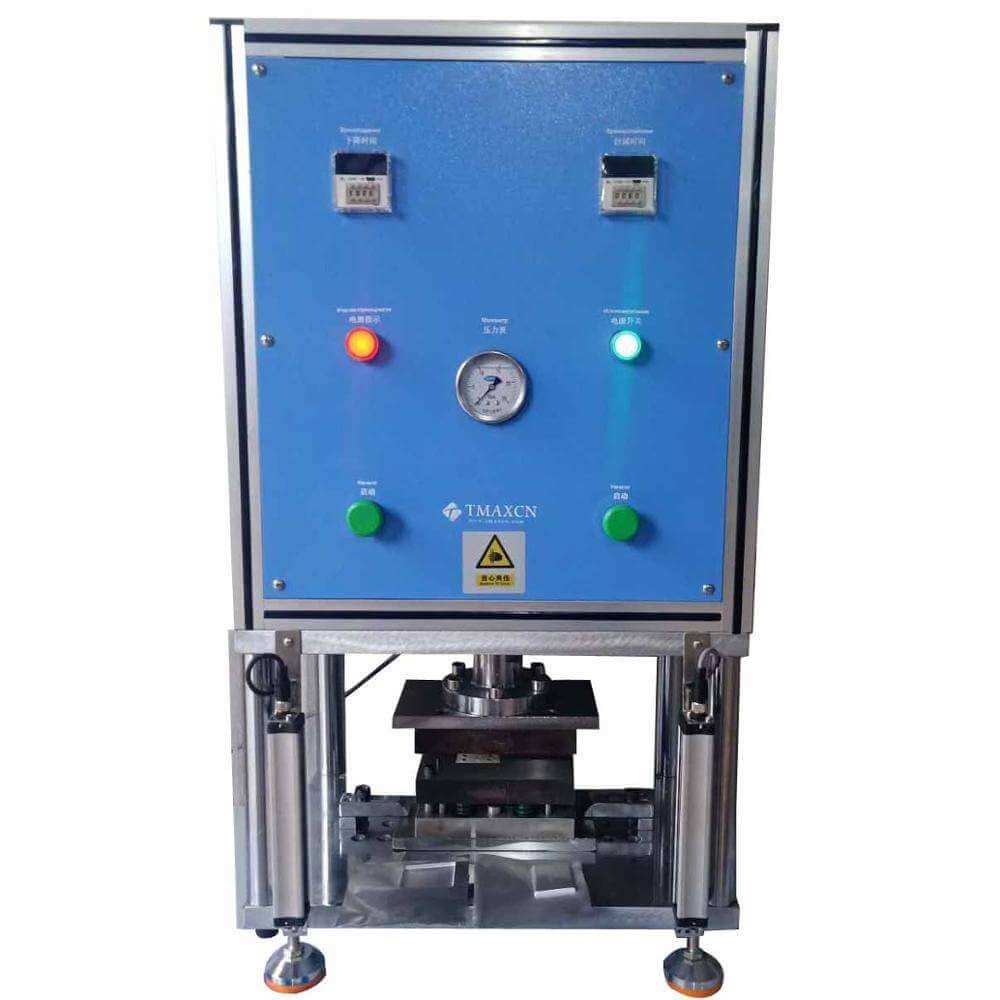

TMAX-MQ280 is a CE Certified Precision electrode die cutter with optional size range). It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs. The size of the electrodes it cuts perfectly matches the standard pouches made by the TMAX-SCK200  cup forming machine, and the shape of the electrodes it produces is also handy for the latter processing steps. The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front.

SPECIFICATIONS:

Working Table Area

300mm(L) x 250mm(W)

Customized size die is available upon
request at extra cost

New: Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use. 2 pcs of electrodes can be produced per cut.
(NOTE:The standard cutting die sizes have been updated from 81.5 x 47.8mm (cathode) and 81.5 x 48.3mm (anode) since April 2015.

1. Cathode Die: 57mm (L) x 44mm (W). With 10mm (L) x 10mm (W) protrude current collector.

2. Anode Die: 58mm (L) x 45mm (W). With 10mm (L) x 10mm (W) protrude current collector

3. Customized dies with Max. area 280 x 180 mm, available at extra cost.

4. Customized dies with Max. 8 pcs of electrodes can be produced per cut.

Working Voltage

AC 110V or 220V 50/60 Hz, single phase

Max. Power Consumption

100W

Cutting Accuracy

±0.1mm

Air Cylinder

3 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Feeding

Manually

Production Yield

800 - 2000 pieces of electrodes per hour

Product Dimensions

L580xW455xH900mm

Net Weight

120kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Air Pressure

Recommend 60 psi

Detailed Images

Precision Die Cutter

electrode cutter

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


electrode die cutter

Packing & Delivery


1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.






inquiry now

    We will give you a quotation within 24 hours. give you a quotation within 24 hours.
